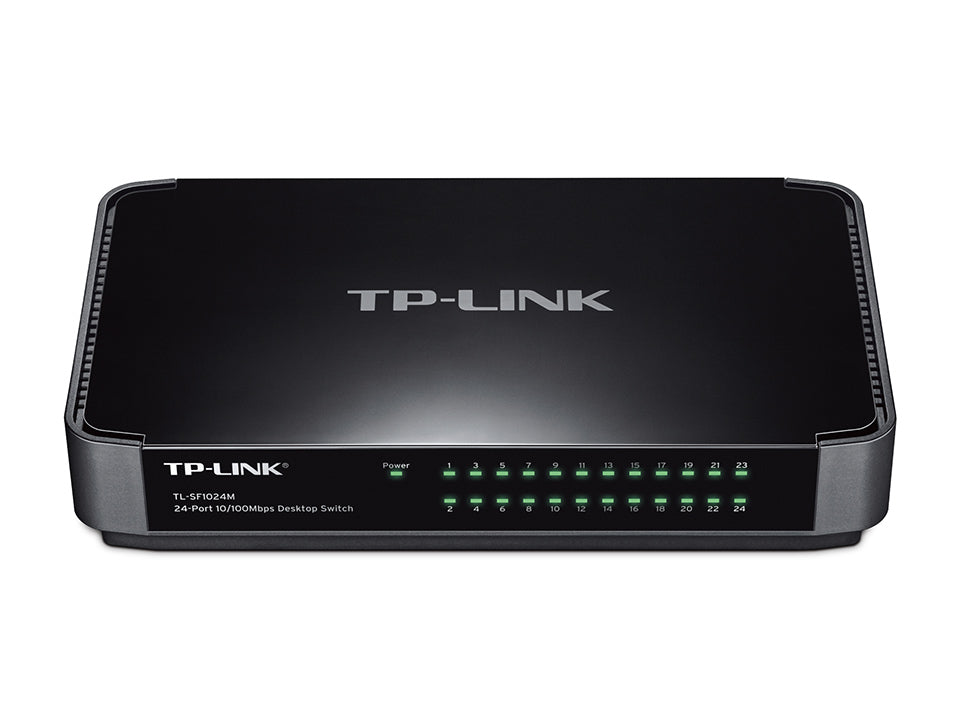

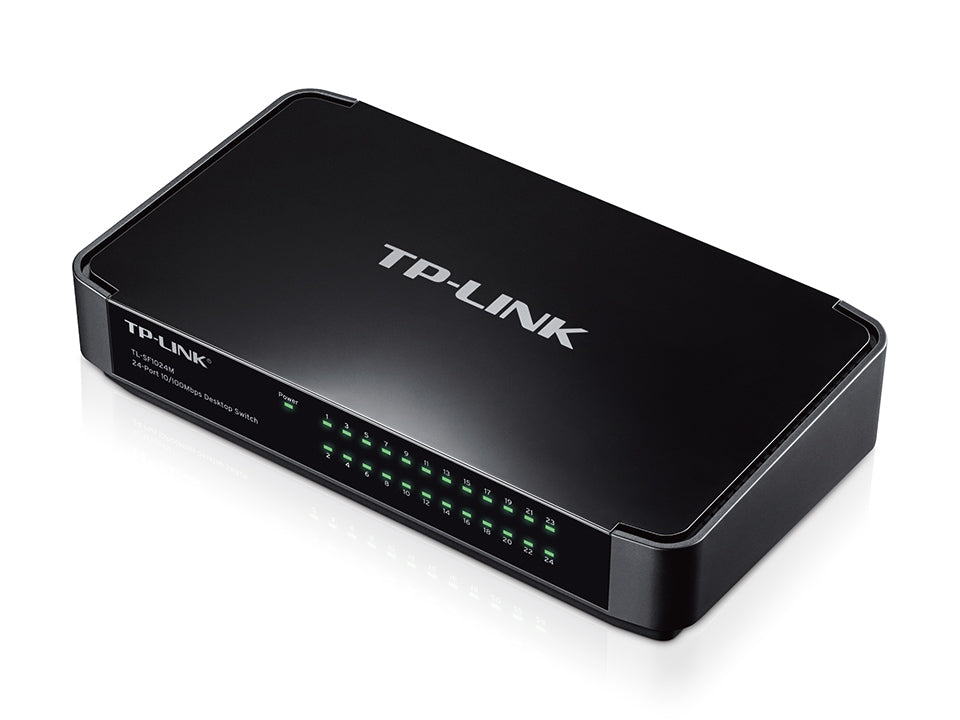

TP-Link TL-SF1024M 24-Port 10/100Mbps Desktop Switch

Innovative energy-efficient technology saves power up to 67%

• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 4.8Gbps Switching Capacity
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
• Fanless design ensures quiet operation
• Desktop or wall-mounting design
• Plug and Play design simplifies installation

The TL-SF1024M Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024M can save up to 67% of the power consumption, making it an eco-friendly solution for your business network.

TL-SF1024M Fast Ethernet Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1024M forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024M work reliably

This new generation TL-SF1024M Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials.

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

24 10/100Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Fanless

3.68W (220V/50Hz)

External Power Adapter (Output: 9VDC / 0.6A)

8K

8.7 x 5.0 x 1.8 in. ( 222 x 126 x 45 mm)

Store and Forward

Green Technology, saving power up to 67%

802.3X Flow Control, Back Pressure

0℃~40℃ (32℉~104℉);

-40℃~70℃ (-40℉~158℉);

10%~90% non-condensing;

5%~90% non-condensing
