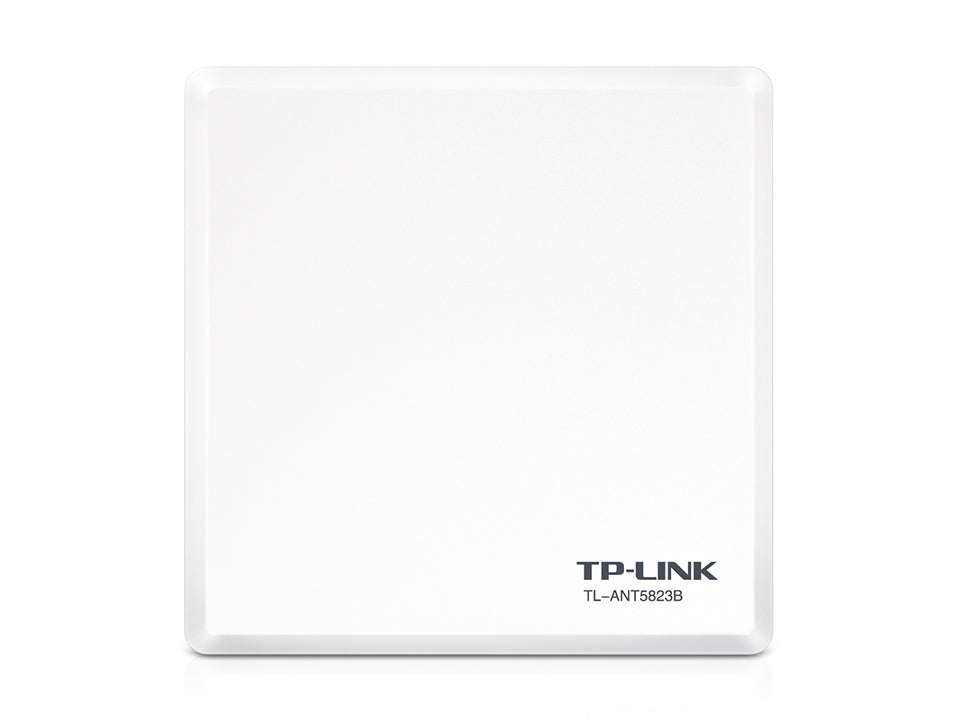

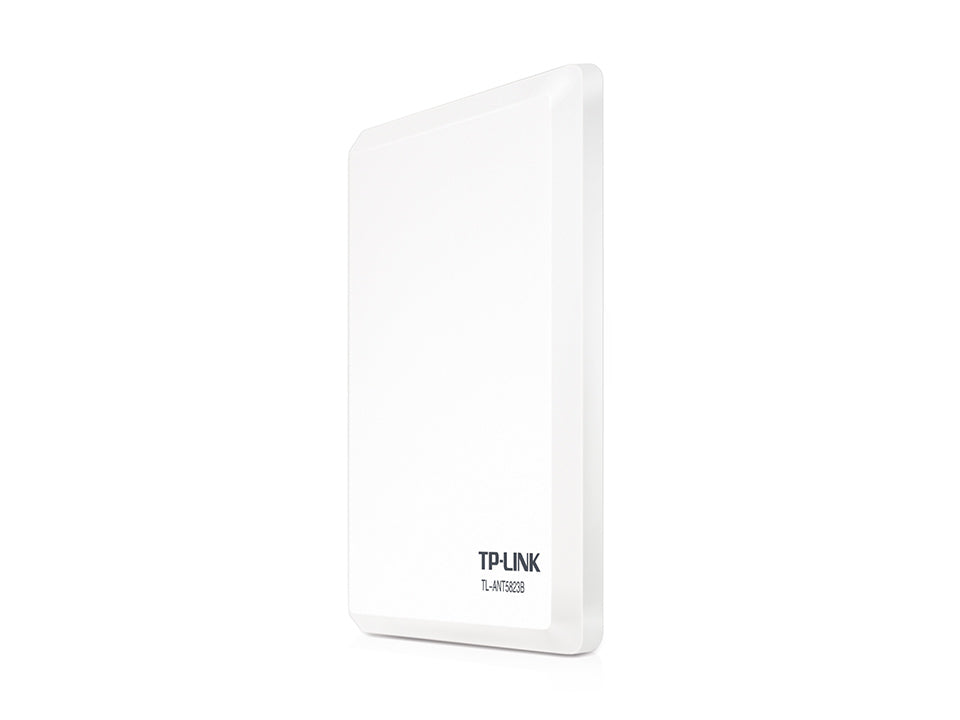

TP-Link TL-ANT5823B 5GHz 23dBi Outdoor Panel Antenna
- Rs.6,374
- Rs.6,374
- Unit price
- per
Please hurry! Only 0 left in stock
Features
- Compliant with 802.11a/n, 5GHz wireless application
- 23dBi signal gain
- Direction operation
- N Type Female connector
- Provided mounting kits enable easy installation for various environments
What This Product Does
The TL-ANT5823B 5GHz 23dBi outdoor panel antenna is ideal for outdoor use by attaching to your wireless access points/routers which operate on less crowded 5GHz band, It could be used for long distance point-to-point connection, providing your stable wireless links. It is very easy to use, no configuration or software installation required.
Specifications
| ANTENNA | |
|---|---|
| Dimension | 320×320×20(mm) |
| Frequency | 5.15~5.85GHz |
| Impedance | 50 Ohms |
| Gain | 23dBi |
| VSWR(MAX.) | ≤1.5 |
| HPBW/H( °) | 12 |
| HPBW/V( °) | 12 |
| Polarization | Vertical or Horizontal |
| Connector Type | N Female |
| Mounting | Wall Mount / Pole Mount |
| Operating Temp. | -40℃~60℃(-40℉~140℉) |
| Storage Temp. | -40℃~60℃(-40℉~140℉) |
| Survival Wind Speed | 241Km/hr |
| Radome Material | ABS |
| Standards | RoHS, WEEE |
| F/B Ratio | ＞28dB |
| Maximum Input Power | 100W |
| Mounting Mast Diameter | Ø30~Ø50 mm |
Warranty
18 months local warranty
