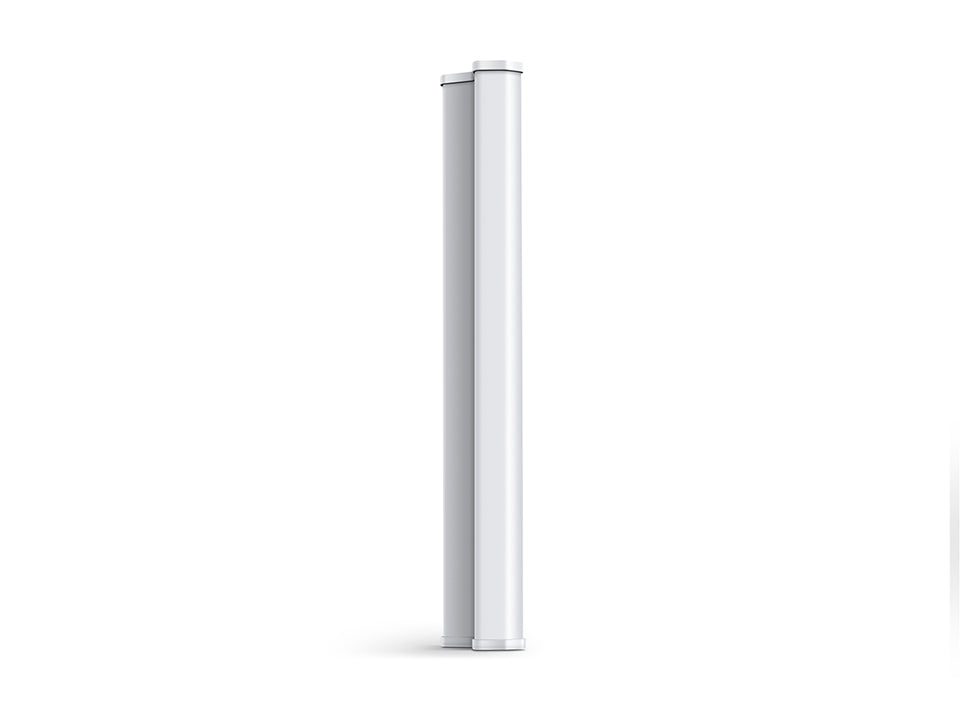

TP-Link TL-ANT5819MS Pharos 2x2 MIMO Sector Antenna

Pharos 2x2 MIMO Sector Antenna

TL-ANT5819MS

• High-gain directional antenna provides wide-area coverage, ideal for Point-to-Multi-Point connections
• Easy installation and seamless integration with the Pharos Base Station WBS510
• MIMO technology ensures increased throughput
• Weatherproof design offers protection in harsh environments

Features

Product Overview

The Pharos Sector Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. These antennas feature high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Multi-Point coverage.

Common Deployment Goals

When installed alongside a Pharos Base Station, the TL-ANT5819MS is capable of providing Point-to-Multi-Point data transmission coverage for a large area.

Easy Installation

TP-LINK sector antennas (TL-ANT5819MS/TL-ANT2415MS) feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation.

Specifications

ANTENNA

Frequency

5.0 - 6.0 GHz

Impedance

50Ω

Gain

19dBi

VSWR(MAX.)

1.8 Max

HPOL Beamwidth

120° (6dB) & 90° (3dB)

VPOL Beamwidth

120° (6dB) & 90° (3dB)

Polarization

Vertical & Horizontal

Mounting

Pole Mount

Elevation Beamwidth

4°

Electrical Downtilt

0°

F/B Ratio

28dB Min

Survival Wind Speed

241km/hr

Standards

RoHS,WEEE

Interfaces

RP-SMA

Dimension Product Size:

700×133×57mm

Colorbox Size:

1030x185x140mm
