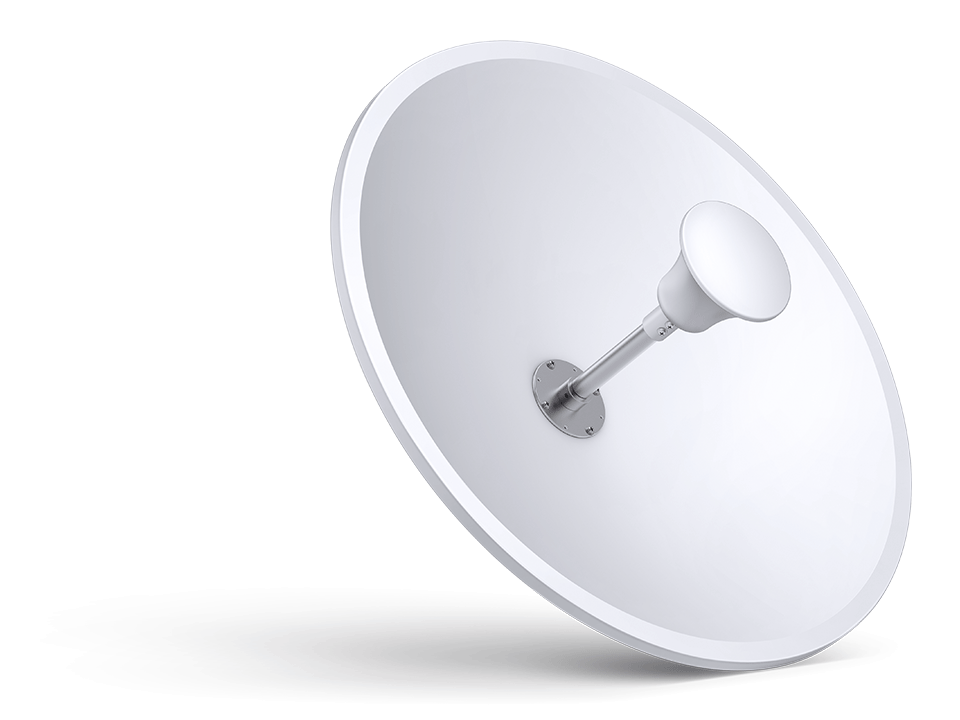

TP-Link TL-ANT2424MD 2.4GHz 24dBi 2×2 MIMO Dish Antenna

2.4GHz 24dBi 2×2 MIMO Dish Antenna

TL-ANT2424MD

• High-gain directional antenna provides long distance Point-to-Point bridge and network backhaul
• Easy installation and seamless integration with the Pharos Base Station WBS210
• MIMO technology ensures increased throughput
• Weatherproof design offers protection in harsh environments

Features

Product Overview

The Pharos Dish Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. This antenna features high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Point data transmission.

Common Deployment Goals

When installed alongside a Pharos Base Station, the TL-ANT2424MD is capable of providing long distance Point-to-Point bridge and network backbaul.

Easy Installation

TP-LINK dish antennas feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation.

Specifications

ANTENNA

Frequency 2.3 ~ 2.7GHz

Impedance 50Ω

Gain 24dBi(Exclude Cable Loss)

VSWR(MAX.) 1.8

HPOL Beamwidth 6° (3dB)

VPOL Beamwidth 6° (3dB)

Elevation Beamwidth 6° (3dB)

Polarization Vertical & Horizontal

Mounting Pole Mount

Electrical Downtilt 0°

F/B Ratio 35dB Min

Survival Wind Speed 241km/h

Standards RoHS,WEEE

Interfaces RP-SMA

Dimension Product Size:650×650×360 mm

Package Size:790×710×200 mm
