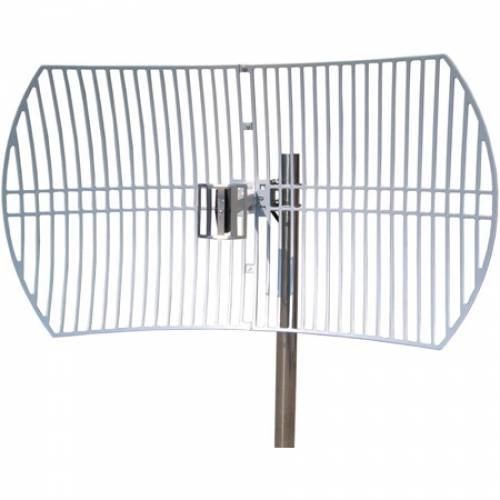

TP-Link TL-ANT2424B 2.4GHz 24dBi Grid Parabolic Antenna

Grid parabolic antenna TL-ANT2424B is designed for the spread spectrum system, operates in the 2.4-2.5 GHz band and provides 24dBi directional operation. The surface design with welded-steel reflector to bring out the best performance. This antenna features high gain, long coverage, light weight, compact structure and excellent wind-resistance. It is used for outdoor and the range is up to 56 km.

Installation of the TL-ANT2424B is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.

• 24dBi directional operation, ideal for extraordinary long-distance outdoor directional connection
• Weather proof design, suitable for all weather conditions
• N Female connector, applicable in most outdoor solutions
• Provides easy installation mounting kits

• Compliant with 802.11b/g
• 24dBi signal gain
• N Female connector

• FREQUENCY: 2.4GHz
• GAIN: 24dBi
• TYPE: Directional
• VSWR(MAX.): 1.5:1
• HPBW/H( °): 14
• HPBW/V( °): 10
• POLARIZATION: Linear; Vertical
• CONNECTOR TYPE: N Female(Jack)
• EXTENDED CABLE/LENGTH: 30cm
• MOUNTING: Pole Mount
• APPLICATION: Outdoor
• APPROXIMATE RANGE AT 1/11/54MBPS: 56km/31.5km/4.44km
• OPTIONAL ACCESSORY: TL-ANT24EC6N, TL-ANT24EC12N, TL-ANT24SP, TL-ANT24PT
