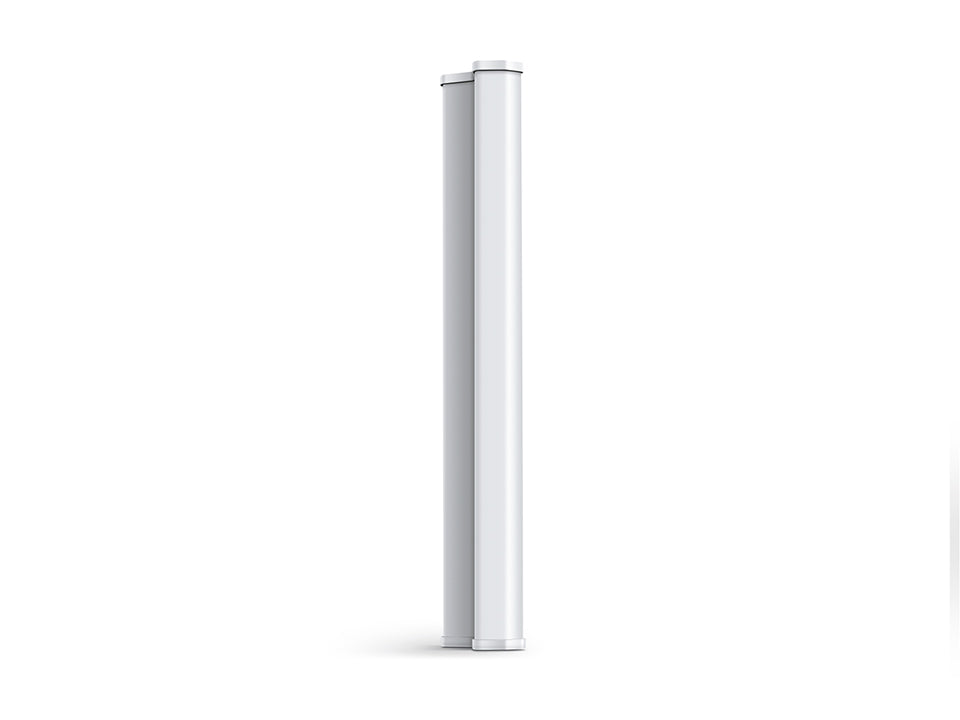

TP-Link TL-ANT2415MS 2.4G 15dBi 2x2 MIMO Sector Antenna

2.4G 15dBi 2x2 MIMO Sector Antenna

TL-ANT2415MS

• High gain directional operation, wide coverage, ideal for Point to Multi-Point connections.
• Easy Installation, seamlessly integrated with the Pharos Base Station WBS210
• MIMO technology
• Weatherproof design offers protection in harsh environments

Features

Product Overview

The Pharos Sector Antenna features 2x2 MIMO technology, is suitable for outdoor use, and is ideally paired with a Pharos Base Station. These antennas feature high-gain directional transmission and represent an excellent solution for providing long distance Point-to-Multi-Point coverage.

Common Deployment Goals

When installed alongside a Pharos Base Station, the TL-ANT2415MS is capable of providing Point-to-Multi-Point data transmission coverage for a large area.

Easy Installation

TP-LINK sector antennas (TL-ANT5819MS/TL-ANT2415MS) feature a built in mounting apparatus and work seamlessly with Pharos Base Stations, meaning that no tools are required for installation.

Specifications

ANTENNA

Frequency 2.3-2.7GHz

Impedance 50Ω

Gain 15dBi

VSWR(MAX.) 1.8 Max

HPOL Beamwidth 120° (6dB) & 90° (3dB)

VPOL Beamwidth 120° (6dB) & 90° (3dB)

Elevation Beamwidth 8°

Polarization Vertical & Horizontal

Mounting Pole Mount

Electrical Downtilt 0°

F/B Ratio 25dB Min

Survival Wind Speed 241km/h

Standards RoHS,WEEE

Interfaces RP-SMA

Dimension Product Size:700×133×57mm

Package Size:1030x185x140mm
