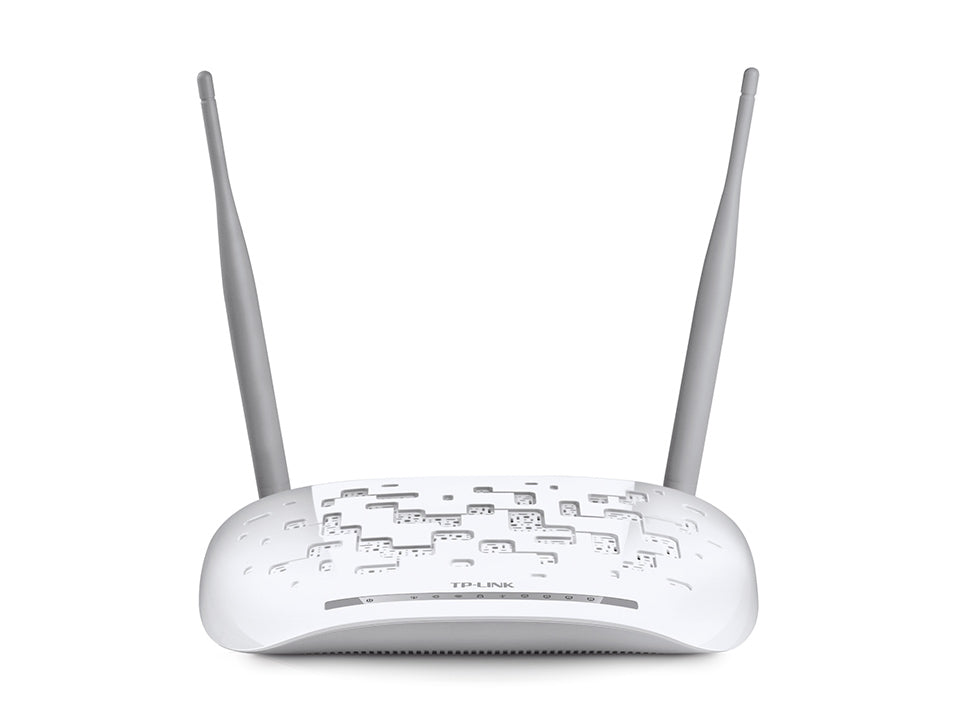

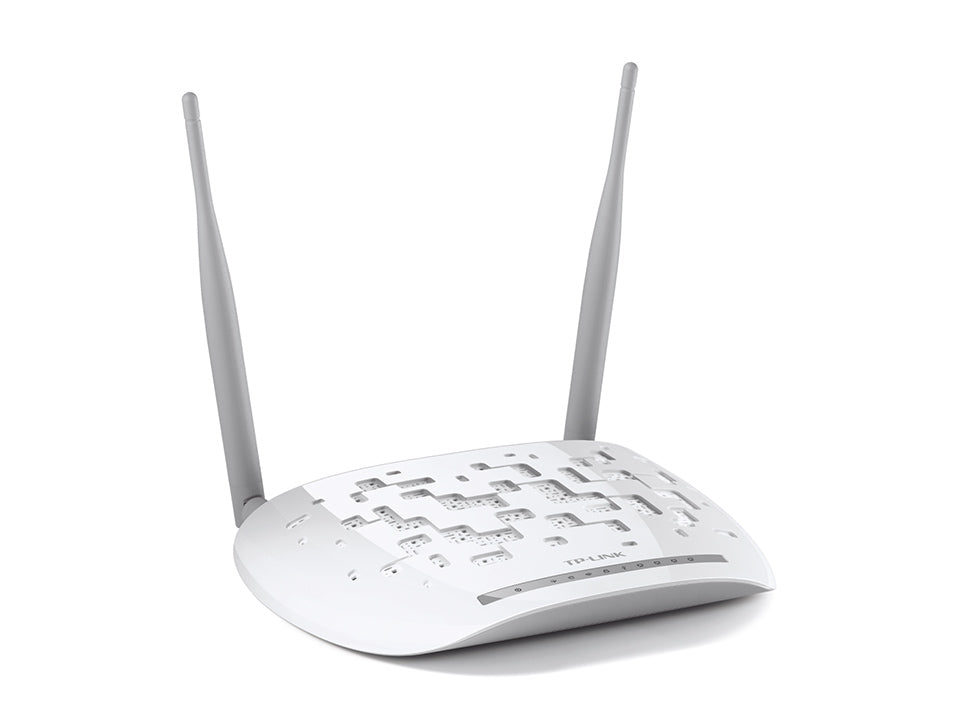

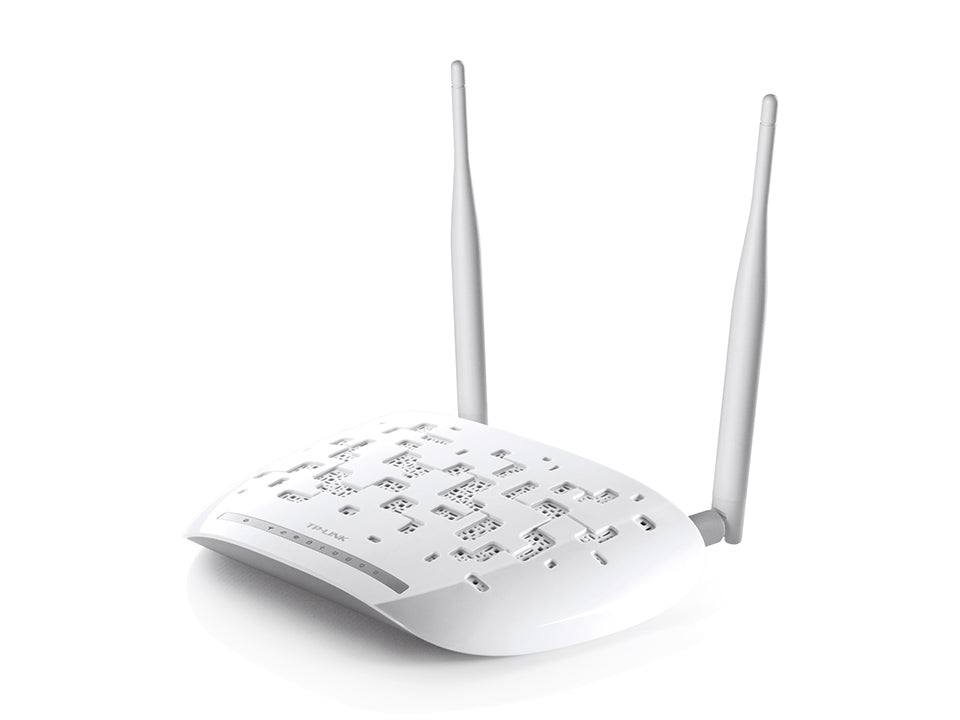

TP-Link TD-W9970 300Mbps Wireless N USB VDSL2 Modem Router

300Mbps Wireless N USB VDSL2 Modem Router

TD-W9970

• Featuring dual WAN ports, compatible with VDSL/ADSL/Fiber/Cable services
• Providing broadband speeds up to 100Mbps over VDSL2 and backward compatible with ADSL
• Share files, media and printers with your friends or family using the multi-functional USB port

Features

What This Product Does

TP-LINK’s TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.

USB Sharing Port – Easy Sharing

Using the TD-W9970’s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.

Interchangeable LAN/WAN Port –Compatible with Fiber/Cable service

The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.

Up to 100Mbps broadband speed

TheTD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.

Virtually Impregnable-10 VPN IPsec tunnels

The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.

Specifications

HARDWARE FEATURES

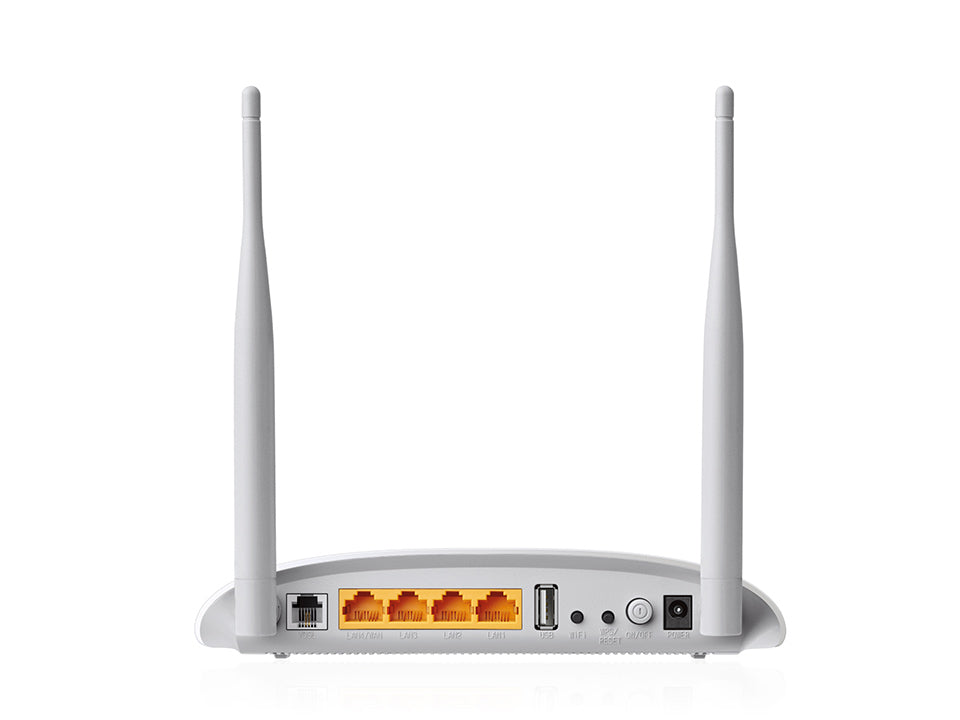

Interfaces

4 10/100Mbps RJ45 Ports
1 RJ11 Port
1 USB 2.0 Port

Button

1 Power On/Off Button
1 WPS/RESET Button
1 Wi-Fi On/Off Switch

Dimensions (W X D X H)

7.7*5.1*1.4 in. (195×130×36mm)

External Power Supply

12VDC/1A

IEEE Standards

IEEE 802.3, 802.3u

VDSL2 Standards

ITU-T G.993.2
ITU-T G.993.5 (G.vector)

ADSL Standards

Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1

ADSL2 Standards

ITU-T G.992.3 (G.dmt.bis)

ADSL2+ Standards

ITU-T G.992.5

Antenna Type

Omni directional, Fixed

Antenna Gain

2 x 5dBi

WIRELESS FEATURES

Wireless Standards

IEEE 802.11b, 802.11g, 802.11n

Frequency

2.400-2.4835GHz

Signal Rate

433Mbps at 5GHz, 300Mbps at 2.4GHz

Transmit Power

<20dBm(EIRP)

Wireless Security

Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering

SOFTWARE FEATURES

Quality of Service

WMM, Bandwidth Control (IP QoS)

Security

NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering

Management

Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools

Port Forwarding

Virtual server, Port Triggering, UPnP, DMZ, Manage Control

VPN Pass-Through

PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols

ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs

Advanced Functions

Ethernet WAN (EWAN)
Guest Network, Wireless Schedule
Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP

USB Sharing

Storage Sharing
FTP Server
Media Server
Print Server

IGMP

IGMP snooping V1/V2/V3
IGMP Multicast

IPSec VPN

10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

OTHERS

System Requirements

Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system

Environment

Operating Temperature:

0~40 (32~104)

Storage Temperature:

-40~70 (-40~158)

Operating Humidity:

10%~90% non-condensing

Storage Humidity:

5%~90% non-condensing
