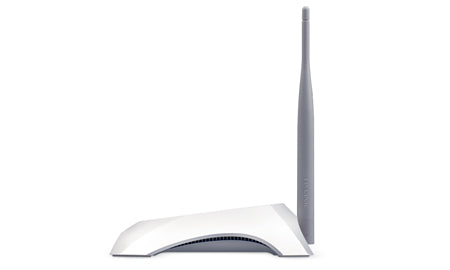

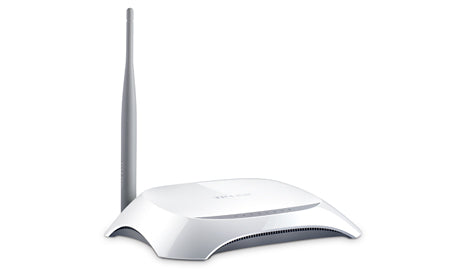

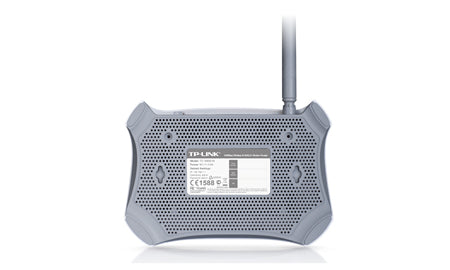

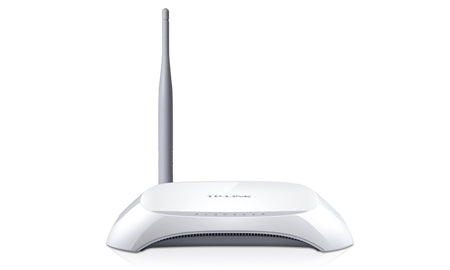

Buy TP-Link TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router online for Rs.2550 on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of TP-Link products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.
Highlights:
ADSL2+ Modem, Wireless N Access Point and 4-Port Router, in a single device
Wireless N speed up to 150Mbps, great for online gaming, Internet call and video streaming
LAN Ports/PVCs bundle and QoS engine for pleasant triple-play (data, voice and video) experience
Easy Setup Assistant with multi-language support provides a quick & hassle-free installation
Supports the latest Internet Protocol IPv6 to future-proof your network
What This Product Does
TD-W8901N 150Mbps Wireless N ADSL2+ Modem Router is an All-in-One device, which is designed to provide end-users with a one-stop solution to acquiring and sharing high speed Internet access over a wired/wireless network. With the Easy Setup Assistant bundled in the CD, SPI and NAT firewall, QoS engine and other advanced features, you can easily setup a protected wireless network and enjoy the pleasant of Internet surfing, file sharing, VoIP, audio and Video streaming.
One-Stop Solution
As a 3-in-1 device, the TD-W8901N combines the functions of a high speed DSL modem, a 4-Port 10/100Mbps NAT router and a wireless N access point. Using a DSL enabled telephone line the TD-W8901N could establish a high-speed ADSL2+ Internet connection. Once set up, the device’s wired/wireless functions can be used to share media between devices, browse the Internet, talk on an IP phone, or even stream HD video from anywhere in your entire home or even the yard. Save time and money using one device instead of multiple devices that take longer to set up and occupy more cluttered space.
High-Speed Internet Access and Wireless Performance
Unlike a dial-up Internet service, a DSL Internet connection is always on so that users need not dial up or wait to access the web. Supporting the latest ADSL standards, the TD-W8901N provides higher performance (up to 24Mbps downstream and 3.5Mbps upstream) and longer reach from users' local Internet Service Provider (ISP).
Complies with IEEE 802.11n standards, TD-W8901N can establish a wireless network and provide better wireless performance, transmission rates, stability and coverage. You can get up to 9X the speed and 4X the range of conventional 11g product and share your high-speed DSL Internet connection, photos, music, files, and even the heavy bandwidth consuming applications like wireless HD video streaming which can not be accommodated by 11g products, from anywhere in their entire homes or even in their backyards!.
Ideal For Pleasant Triple-play Experience
Port VLAN binds specific LAN ports and PVCs for differential services like IPTV. The TD-W8901N's built-in QoS engine provides various QoS policies that help prioritize Internet traffic to enable smooth IPTV streaming and lag-free online gaming. Thus users can experience the benefits of a smooth network connection without worrying about traffic congestion. Combined with IGMP multicast and IGMP snooping features the TD-W8901N makes an ideal solution for multimedia applications.
Advanced Network Security And Flexible Management
The TD-W8901N utilizes NAT and SPI (stateful packet inspection) firewalls which inspect the contents of incoming packets before they are allowed in, preventing potential attacks from across the Internet. For added convenience, it supports access control based on MAC addresses, IP addresses, domain names or applications such as MSN or Yahoo Messenger, so that parents and network administrators can establish restricted access policies for children or staff. Aside from web configuration, the TD-W8901N also provides TR-069 and SNMP, which automatically update the device's firmware and other settings when they become available from users' ISP. All of these features help users to enhance their network’s security and make network management more flexible.
Easy To Use
Easy Setup Assistant with multi-language support is provided in the product CD. Users can select their native language when setting up their device and complete Internet connection setup, wireless network settings and security configurations without the use of a multilingual dictionary. This benefit allows even novice users to setup their products without sacrificing any key features. Users need simply insert the TD-W8901N's bundled Auto-Run CD to have their networks set up quickly and hassle-free in minutes.
Features
Specifications
HARDWARE FEATURES | |
---|---|

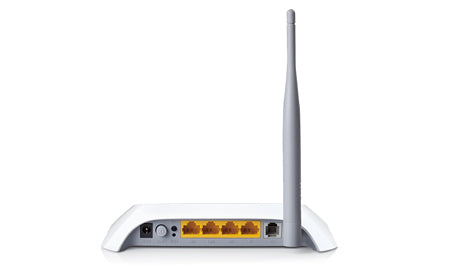

Interface | 4 10/100Mbps RJ45 Ports 1 RJ11 Port |
Button | 1 Power On/Off Button 1 Reset Button 1 Wi-Fi On/Off Button |
External Power Supply | 9VDC/0.6A |
IEEE Standards | IEEE 802.3, 802.3u |
ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1 , ITU-T G.996.1, ITU-T G.997.1, ITU-T K.2.1 |
ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 7.2x5.0x1.4 in. (182x128x35mm) |
Antenna Type | Omni directional, Undetachable, Reverse SMA |
Antenna Gain | 1 * 5dBi |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11g, 802.11b, with some n features |
Frequency | 2.400-2.4835GHz |
Transmit Power | <20dBm(EIRP) |
Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
SOFTWARE FEATURES | |
---|---|
Quality of Service | QoS Remarking based on IPP/ToS, DSCP and 802.1p |
Port Forwarding | Virtual server, DMZ, ACL(Access Control List) |
VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs. |
Advanced Features | Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Mapping VLAN, 802.1P, Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2, IGMP Multicast, UPnP. |
Security | NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death |
Management | Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TD-W8901N External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty
18 months local warranty
Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.
Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
