Features
What This Product Does

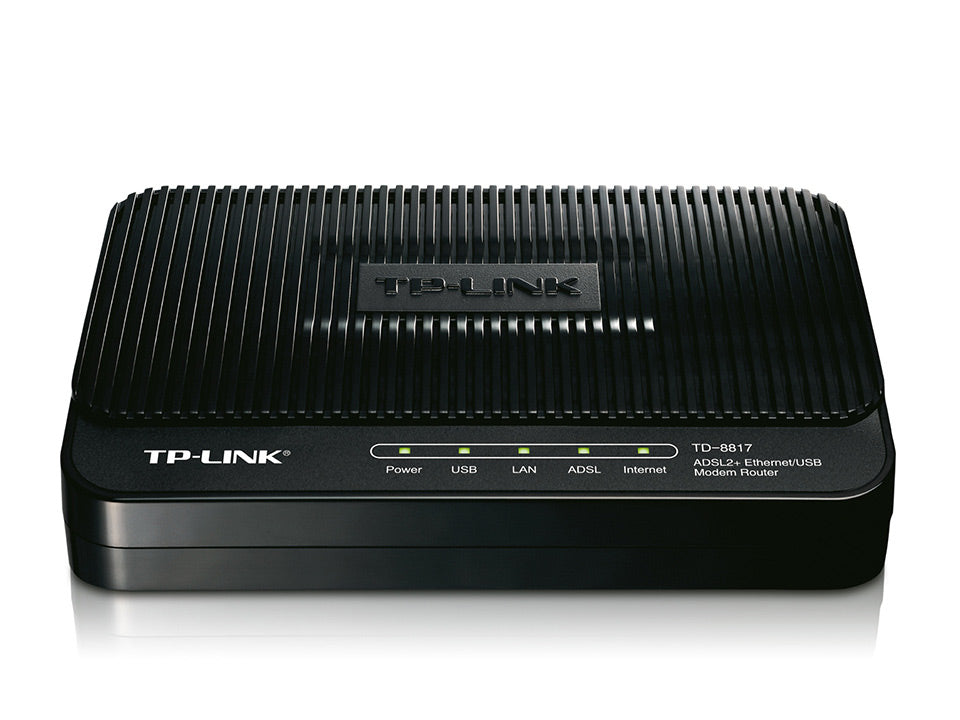

ADSL2+ Ethernet Modem Router TD-8817 is a high performance modem router that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. It is a 2-in-1 device that combines the function of a high-speed DSL modem and a one-Port 10/100Mbps NAT router. Using the TD-8817, you can easily create a secure and high-speed wired network to share files, music, photos, and printers with multiple computers.
2-in-1 Solution
As a 2-in-1 device, TD-8817 combines the functions of a high speed DSL modem, and a one-Port 10/100Mbps NAT router. No need to buy a separate router, the TD-8817 is designed to give you a perfect solution to acquiring and sharing high speed Internet access. Then you could save the cost of procurement and the cost of device running.
Access High-Speed Internet
Unlike a dial-up Internet service, a DSL Internet connection is always on so that you do not have to wait to access the web. Supporting the latest ADSL standard, the TD-8817 provides higher performance (up to 24Mbps downstream) and longer reach from the central office of your ISP(Internet Service Provider).
6KV Lightning Protection
This device is equipped with 6KV lightning protection, which exceeds normal routers with 4KV lightning protection, keeping your devices from the worst of Mother Nature’s fury.
Advanced Network Security
Support NAT firewall, TD-8817 could prevent potential attacks from across the Internet. For added convenience, it supports access control based on MAC address, IP address, domain name or application so parents and network administrators can establish restricted access policies for children or staff.
IP QoS
IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC.
IPv6 Supported
The next generation of Internet protocol, helping you to future-proof your network
Easy Setup
Either using the optimized user interface and setup wizardor the CD(included) setup wizard willallow youto get ‘online’ quickly and easily
Specificaitons
HARDWARE FEATURES | |
---|---|
Interface | 1 10/100Mbps RJ45 Port 1 RJ11 Port 1 USB Port |
Button | 1 Power On/Off Switch |
External Power Supply | 5VDC/1A |
IEEE Standards | IEEE 802.3, 802.3u |
ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1 , ITU-T G.996.1, ITU-T G.997.1, ITU-T K.2.1 |
ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 5.5*3.6*1.1 in.(140*92*29mm) |
SOFTWARE FEATURES | |
---|---|
Quality of Service | QoS Remarking based on IPP/ToS, DSCP and 802.1p |
Port Forwarding | Virtual server, DMZ, ACL(Access Control List) |
VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs, |
Advanced Features | Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS IGMP Multicast, UPnP |
Security | NAT Firewall, MAC /IP /URL Filtering |
Management | Web Based Configuration(HTTP), Remote management, Telnet management, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
IPv6 | IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TD-8817 External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable USB Cable Quick Installation Guide Resource CD Power Adapter |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7, Windows 8 or MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty
18 months local warranty
