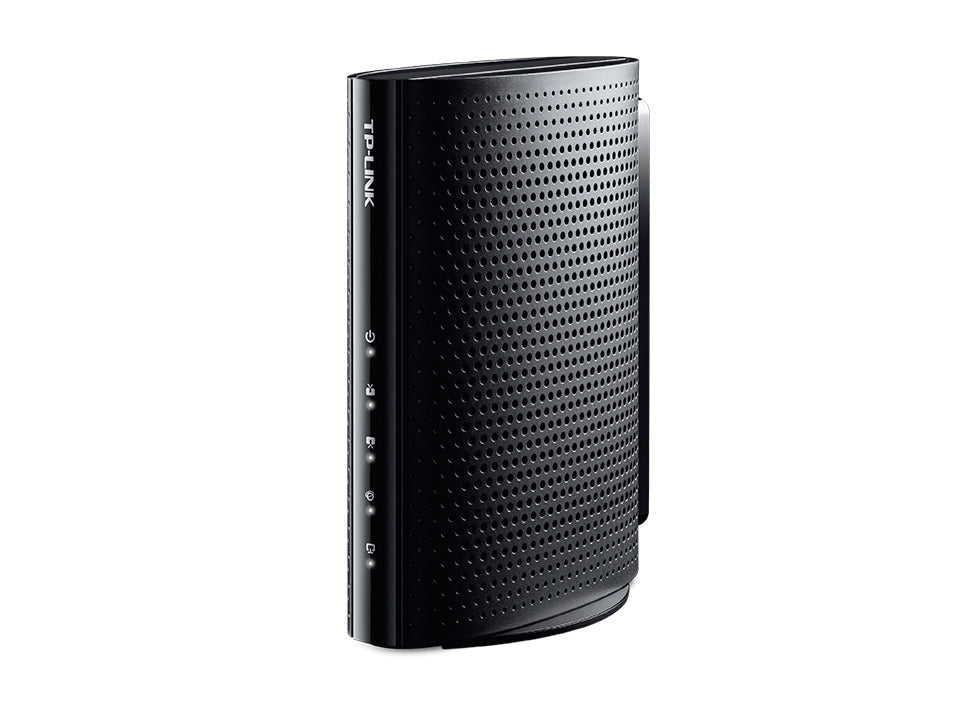

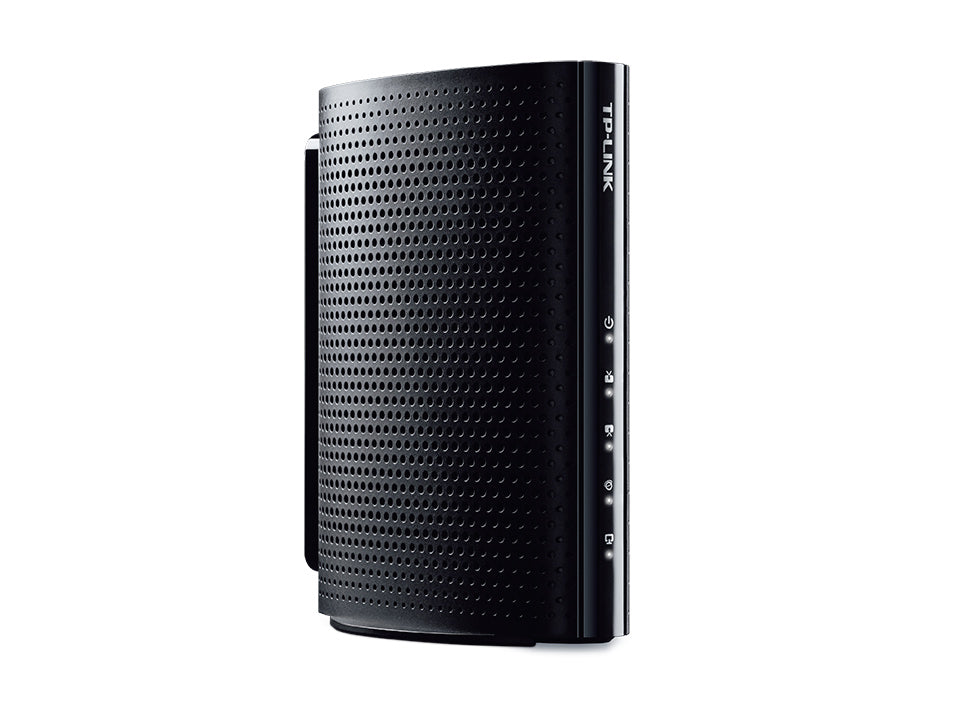

TP-Link TC-7610 DOCSIS 3.0 Cable Modem

DOCSIS 3.0 Cable Modem

TC-7610

• Compatible with major cable ISPs: XFINITY®, Time Warner Cable, Cablevision, Bright House Networks
• Eliminate monthly rental fees
• CableLabs®Certi ed DOCSIS 3.0 backwards compatible to DOCSIS 1.0, 1.1 and 2.0 provides users comprehensive network compatibility
• Channel bonding of up to 8 downstream channels and 4 upstream channels provide data rates up to 343 Mbps for downstream, and 143 Mbps for upstream
• Gigabit port ensures ultimate fast transfer speeds
• Pv4 and IPv6 dual stack

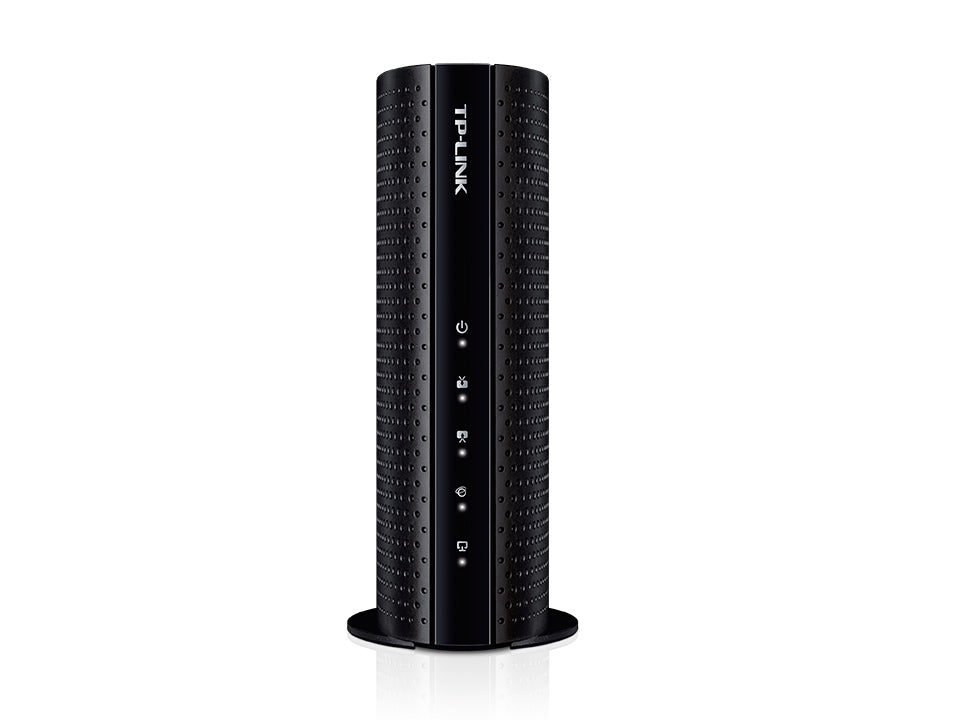

• Well-de ned LEDs clearly display device and network status

Features

Eliminate monthly rental fees

Owning your modem saves you the rental fees charged by many Internet Service Providers. In fact, purchasing your own cable modem typically costs less than a year’s worth of monthly rental fees.

DOCSIS 3.0 for Faster, Future-Proof Internet

The TC-7610’s CableLabs-certified DOCSIS 3.0 technology delivers speeds 8x faster than DOCSIS 2.0. The modem also features innovative 8x4 channel bonding for even faster throughput.

8 Downstream channels
4 Upstream channels

Stream and Game Without Slowing Down

With 343Mbps download and 143 Mbps upload speeds, as well as a lightning-fast Gigabit Ethernet port, the TC-7610 lets you enjoy lag-free online gaming and HD streaming.

Quick, Easy Setup


• Connect the coaxial cable to the modem
• Connect your computer or router to the modem using an Ethernet cable
• Call your ISP or service provider self-activation process to activate the modem

Specifications

DOWNSTREAM

Channel Bonding

Up to 8

Channel Width

48 MHz (8 channels) / 6 MHz (single channel)

Modulation

64 QAM / 256 QAM

Symbol Rate

5.057 Msym/s (64 QAM) / 5.361 Msym/s(256 QAM)

Maximum Data Rate

Up to 343 Mbps

Frequency Range

108 to 1002 MHz (edge to edge)

UPSTREAM

Channel Bonding

Up to 4

Channel Width

200KHz / 400KHz / 800KHz / 1.6MHz / 3.2MHz / 6.4MHz

Modulation

QPSK, 8/ 16/ 32/ 64/ 128 QAM

Symbol Rate

160 / 320 / 640 / 1280 / 2560 / 5120 Ksym/s

Maximum Data Rate

Up to 143Mbps

Frequency Range

5 to 42MHz (edge to edge)

NETWORK FUNCTION

IP Stack Supports

IPv4 and IPv6 dual stack

DHCP

DHCP Client

VPN Passthrough

PPTP, L2TP, IPSec

Muticast Support

IGMP v1/v2/v3

OTHERS

Operating System

Windows 8/Windows 7/ Windows Vista™, Service Pack 1 or later/ Windows®XP, Service Pack 2
or later/ Mac®10.4 or later (Ethernet Connection Only) UNIX®Linux®

Protocol Support Network:

IP, ICMP, ARP

Transport:

TCP, UDP

Application:

SNMP (v1, 2c and 3), TFTP,DHCP, ToD

Power Supply

12VDC/1A

Environment Operating Temperature:

0°C~40°C (32°F~104°F)

Storage Temperature:

-40°C~70°C (-40°F~158°F)

Operating Humidity:

10%~90% Non Condensing

Storage Humidity:

5%~90% Non Condensing

PHYSICAL SPECIFICATIONS

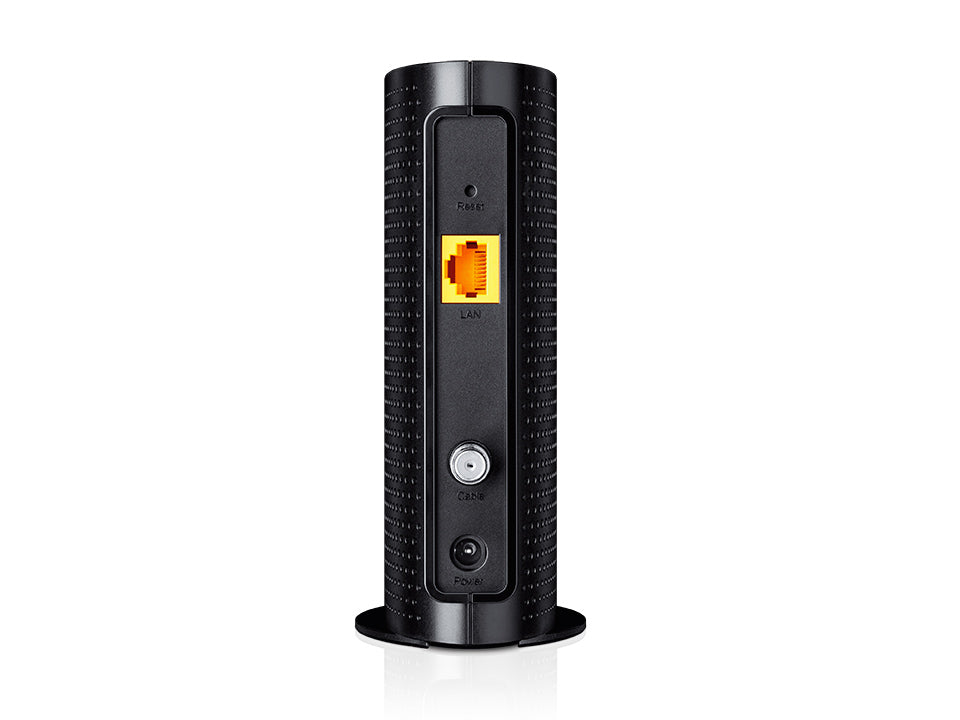

Interface

1 F-Connector (female 75 )
1 10/100/1000 Mbps Ethernet Interface (RJ45)
1 Power Jack

Button 1 Reset Button

Dimensions 5.6 x 4.5 x 2.3 in. (141.5 x 115.5 x 57.9 mm)
