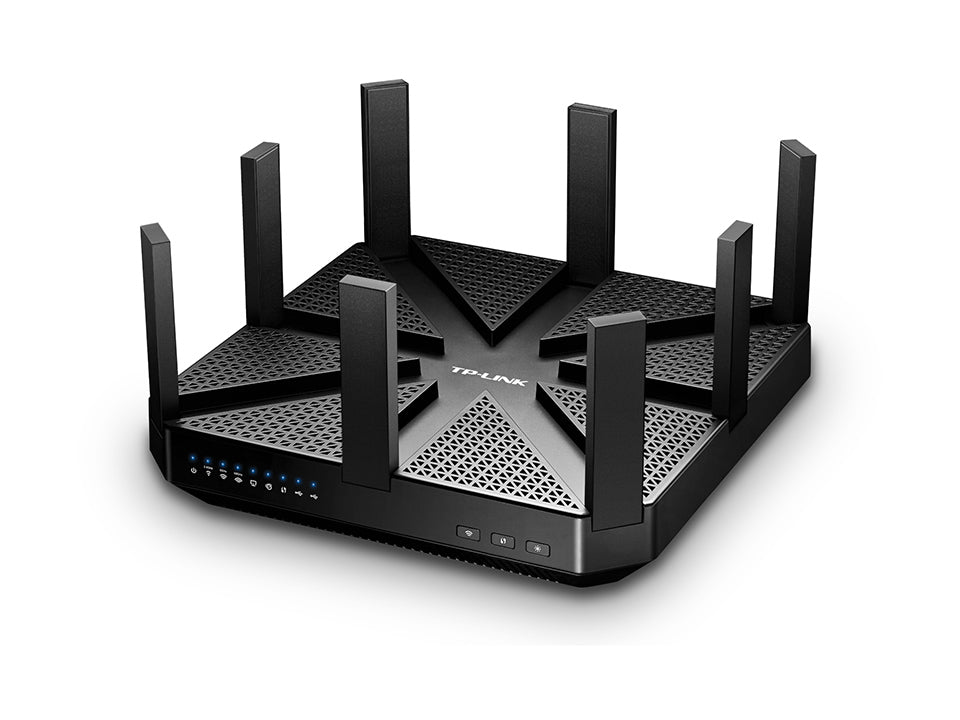

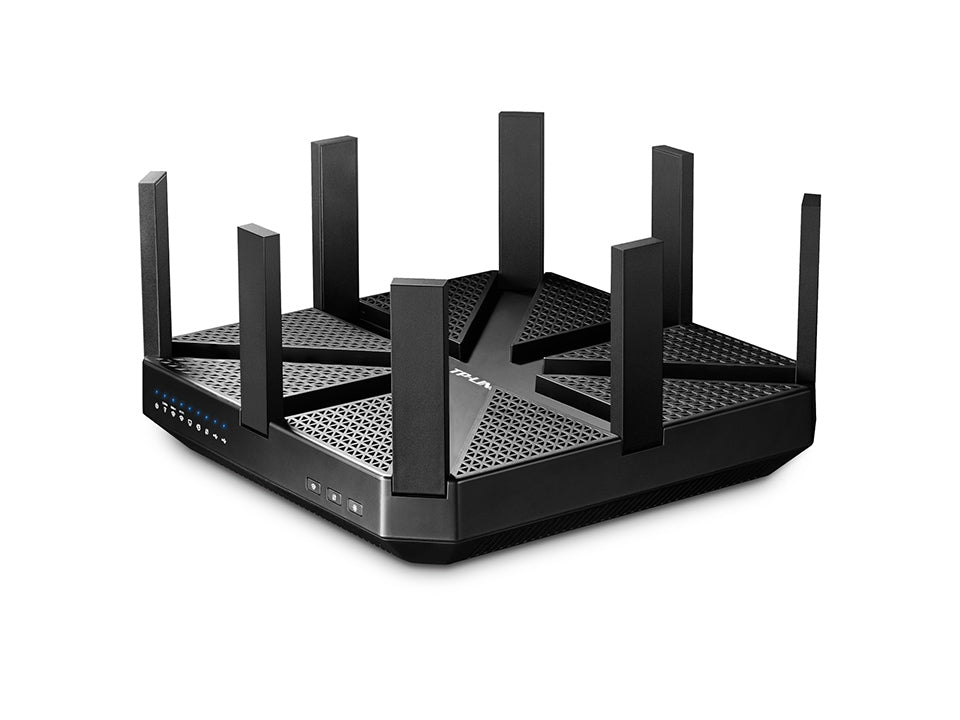

TP-Link Talon AD7200 Multi-Band Wi-Fi Router

Talon AD7200 Multi-Band Wi-Fi Router

AD7200

• Supports the 802.11ad standard, the latest breakthrough in wireless technology

• 7200Mbps combined wireless speeds, including speeds of up to 800Mbps on the 2.4GHz band, 1733Mbps on the 5GHz band, and 4600Mbps on the new 60GHz band
• Multi-Band Technology establishes three distinct networks that allow you to connect more devices while still enjoying peak performance
• MU-MIMO serves multiple devices simultaneously, providing speeds that are up to 3X higher
• 1.4GHz dual-core processor powers through multiple complex tasks at the same time
• Eight external high-performance antennas maximize coverage and enhance stability
• Beamforming Technology promotes stronger, more reliable wireless connections

802.11ad

Faster Than Anything You Have Ever Seen

Talon AD7200 uses the latest, most powerful wireless technology to provide speeds of up to 4600Mbps on the groundbreaking 60GHz Wi-Fi band, completely revolutionizing your definition of fast.

60GHz Wi-Fi Redefines Home Entertainment

Transfer 1GB file*

Back up a thousand photos*

Download a HD movie*

More Wi-Fi For More Devices

The AD7200 uses Multi-Band technology to run three distinct Wi-Fi bands at once, with the combined Wi-Fi speed of up to 7200Mbps, creating a network that can connect to more devices without a trade-off in performance.

Power at the Heart of Your Network

A 1.4GHz dual-core processor powers through demanding tasks when numerous users are connected to the network at the same time. This allows everyone in your home to surf, stream, and game simultaneously while enjoying outstanding performance.

Dynamic Wi-Fi Coverage

The Wireless AD Technology comes with the distinct, high-performance 60GHz Wi-Fi band that dramatically increase speed and reduce interference, what's more, the additional Wireless AC allows the router to provide strong and stable 5GHz & 2.4GHz Wi-Fi and full wireless coverage for your entire home.

Antenna Array for More Targeted Wi-Fi

32 Antennas formed a special Antenna array of 60GHz band to ensure that Wi-Fi signals are concentrated towards your in room devices, focusing the data transmission to where you need it most.

Everyone Enjoys At Once

Comprehensive Connectivity

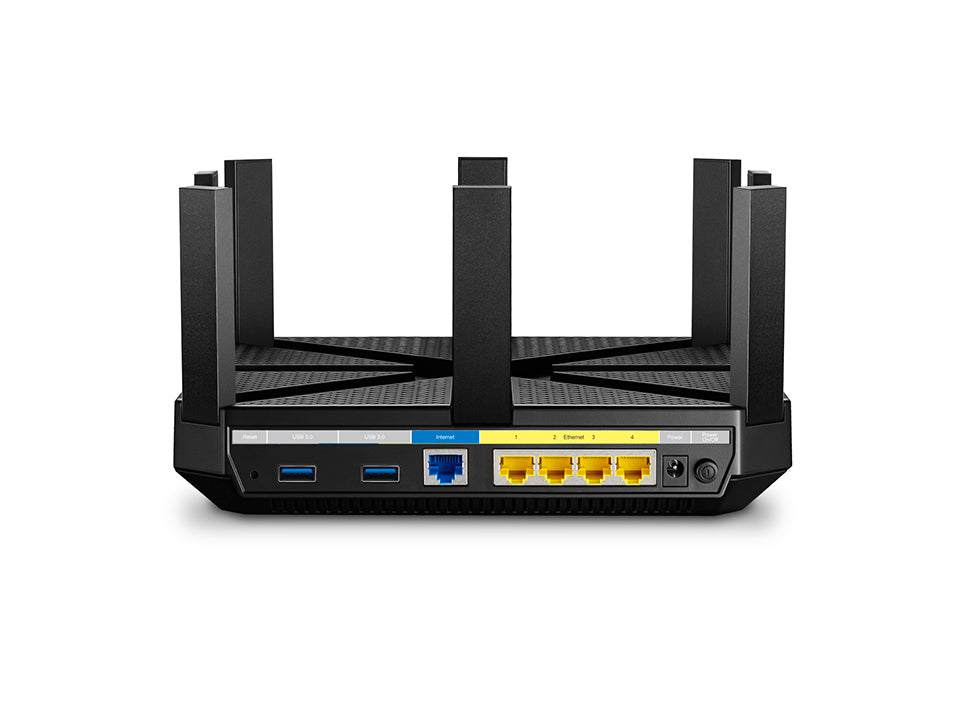

To match the unprecedented Wi-Fi speed, the AD7200 uses dual USB 3.0 ports and four Gigabit Ethernet ports to transfer data at lightning-fast speeds. This allows all of your wired devices to achieve peak performance.

Specifications

HARDWARE FEATURES

Interface

4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
2 USB 3.0 Ports

Button

Wireless On/Off Button
Power On/off Button
LED On/off Button
WPS Button
Reset Button

Antenna 8 external antennas, 1 internal antenna

External Power Supply 12V/4.2A

Dimensions ( W x D x H ) 9 X 9 X 1.7 in. (230 X 230 X 43mm)

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ad 60GHz
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz

Frequency 60GHz, 2.4GHz and 5GHz Band1/Band4

Signal Rate

60GHz: Up to 4600Mbps
5GHz: Up to 1733Mbps
2.4GHz: Up to 800Mbps

Reception Sensitivity

5GHz:
11a 6Mbps: -94dBm
11a 54Mbps: -76dBm
"11ac VHT20_MCS0: -93dBm
11ac VHT20_MCS8:-69dBm
11ac VHT40_MCS0: -90dBm
11ac VHT40_MCS9: -64dBm
11ac VHT80_MCS0: -87dBm
11ac VHT80_MCS9: -61dBm"

2.4GHz:
11g 6Mbps: -95dBm
11g 54Mbps: -78dBm
"11n HT20_MCS0: -95dBm
11n HT20_MCS7: -75dBm
11n HT20_MCS8: -70dBm
11n HT40_MCS0: -92dBm
11n HT40_MCS7: -72dBm
11n HT40_MCS9: -66dBm"
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption

Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5GHz)

FCC:
<30dBm
24dBm EIRP (60GHz)

Guest Network

2.4GHz guest network ×1
5GHz guest network ×1

SOFTWARE FEATURES

Quality of Service WMM, QoS

WAN Type

Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)

Management

Access Control
Local Management
Remote Management

DHCP Server, Client, DHCP Client List, Address Reservation

Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS DynDns, NO-IP

Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

Protocols Supports IPv4 and IPv6

USB Sharing Supports Samba(Storage)/FTP Server/Media Server/ Printer Server

VPN Server PPTP, OpenVPN

OTHERS

Certification CE, FCC, RoHS

Package Contents Talon AD7200 Multi-Band Wi-Fi Router
Power supply unit
Ethernet Cable
Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10, MAC OS, NetWare, UNIX or Linux

Environment Operating Temperature: 0?~40 ? (32 ?~104?)

Storage Temperature: -40?~70 ? (-40 ?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
