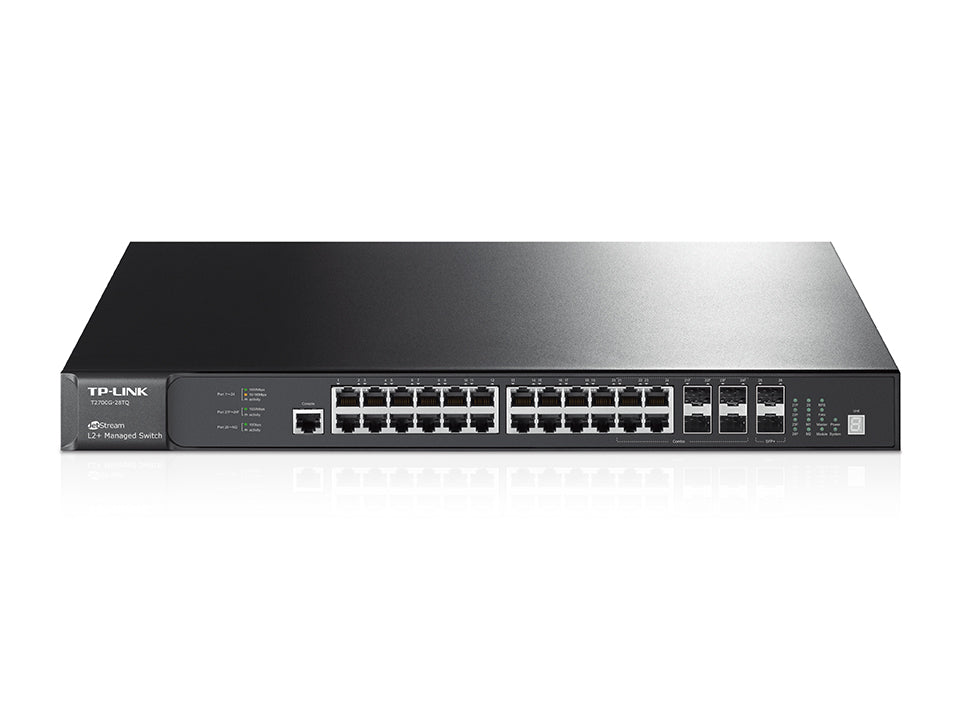

TP-Link T2700G-28TQ JetStream 28-Port Gigabit Stackable L2+ Managed Switch

JetStream 28-Port Gigabit Stackable L2+ Managed Switch

T2700G-28TQ

• Basic Layer3 features like static routing and RIP v1/v2 by default and abundant Layer 3 features including OSPF/ECMP/PIM/VRRP with a Layer 3 license upgrade(T2700G-28TQ-L1000) to save cost and protect investment
• True Physical Stacking technology supports up to 8 units and 320Gbps backplane bandwidth for high scalability and efficient redundancy
• 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery
• Removable power unit and redundant power supply functionality minimizes downtime

Features

What This Product Does

TP-LINK’s T2700G-28TQ is an L2+ managed switch designed to build a highly accessible, scalable, and robust network. The switch is equipped with 24 Gigabit RJ-45 ports, 4 Combo Gigabit SFP and up to 4 10Gbps SFP slots, giving network administrator great network flexibility. It supports basic Layer3 features like static routing and RIP v1/v2 by default and can be upgraded to support abundant Layer 3 features such OSPF/ECMP/PIM/VRRP with the addition of a Layer3 license. What’s more, with physical stacking feature and optional redundant external power unit, T2700G-28TQ provides a robust network with efficient redundancy. T2700G-28TQ provides robust security to help secure your enterprise network.
TP-LINK’s T2700G-28TQ L2+ managed switch provides a reliable and cost-effective solution for enterprise, campus and ISP networks.

Specifications

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interfaces

24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 combo gigabit SFP Slots
Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots)
1 Console Port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR

Fan Quantity

4

Dimensions (W X D X H)

17.32*13*1.73 in.(440*330*44 mm)

Power Supply

100~240VAC, 50/60Hz

PHYSICAL STACKING

Stacking Speed (Per Port)

20 Gbps (Full-Duplex)

No. of Units Per Stack

8

Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables

TXM431-SR
TXM431-LR
TXC432-CU1M
TXC432-CU3M

Max Number of Stacking Ports Installable

2 SFP+

PERFORMANCE

Switching Capacity

Up to 128Gbps for a standalone switch

Bandwidth/Backplane

Up to 320Gbps when 8 units in the stack

Packet Forwarding Rate

Up to 95.2Mpps for a standalone switch

MAC Address Table

32K

Packet Buffer Memory

16 Mbits

Jumbo Frame

10240 Bytes

Number of Routes

12K

Number of Static Routes

256

Number of IP Interfaces

128

SOFTWARE FEATURES

Basic L3 Features

Wire-speed IP forwarding
Static Routing
RIP v1, v2
DHCP Server/Relay

Advanced L3 Features (License Required)

OSPF v2
ECMP
PIM-SM/PIM-DM/IGMP
ARP Proxy
VRRP

Quality of Service Support

Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN

L2 Features

IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control

VLAN

Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP

Access Control

L2?L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based

Security

IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control

Management

Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image

OTHERS

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature:

0?~40? (32?~104?)

Storage Temperature:

-40?~70? (-40?~158?)

Operating Humidity:

10%~90% non-condensing

Storage Humidity:

5%~90% non-condensing
