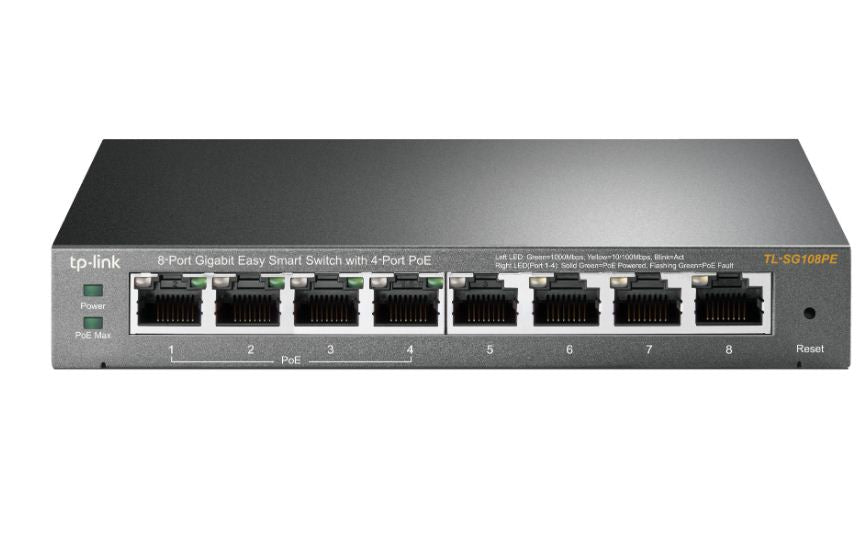

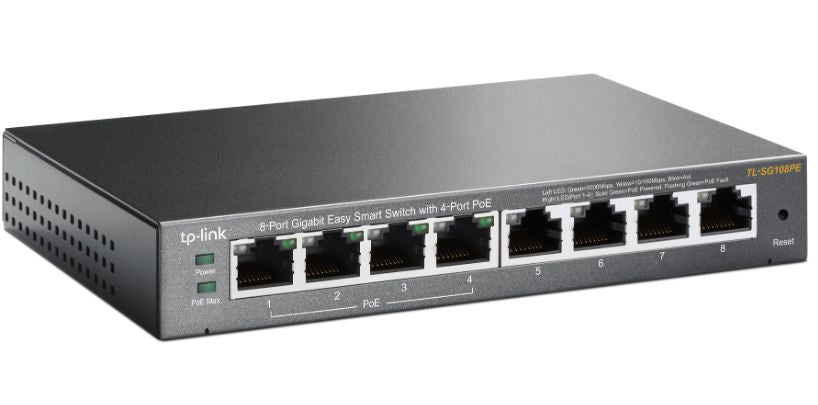

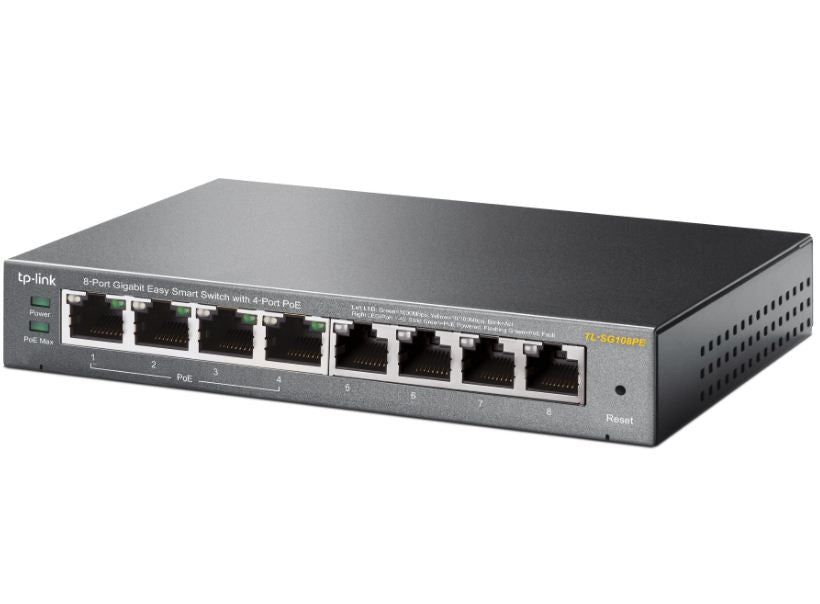

TP-Link SG108PE 8-Port Gigabit Easy Smart Switch

Buy TP-Link SG108PE 8-Port Gigabit Easy Smart Switch online at Low Price. Buy complete range of Desktop Switches on Vmart.pk, We Offer home delivery all over Pakistan.

The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed speci cally for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traf c prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.

4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

TL-SG108PE offers network monitoring for users to observe traf c behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traf c prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traf c based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

The TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables and uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adapts to promote compatibility and optimize performance. The convenient, compact size makes it ideal for desktops with limited space. Active LED indicators provide real-time status feedback and basic error diagnostics.

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fanless

Adapter(Output: 48VDC / 1.25A)

65.2W (220V/50Hz)

5.2W (220V/50Hz)

PoE+ Ports(RJ45)

PoE Ports (RJ45) Standard: 802.3 af compliant

PoE Ports: Port 1- Port 4

PoE Power Budget: 55W

5.15W (220V/50Hz with no PD connected)

65.18W (220V/50Hz with 55W PD connected)

17.57 BTU/h (with no PD connected)

222.39 BTU/h (with 55W PD connected)

16Gbps

11.9Mpps

4K

1.5Mb

15KB

Port-Based/802.1p/DSCP priority

4 priority queues

Rate Limit

Storm Control

IGMP Snooping V1/V2/V3

Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Management Web-based GUI

Easy Smart Configuration Utility

Store-And-Forward

FCC, CE, RoHS

TL-SG108PE

Power Adapter

Installation Guide

Resource CD

Rubber Feet

Microsoft® Windows® for running Utility

0℃~40℃ (32℉~104℉)

-40℃~70℃ (-40℉~158℉)

10%~90%RH non-condensing

: 5%~95%RH non-condensing
