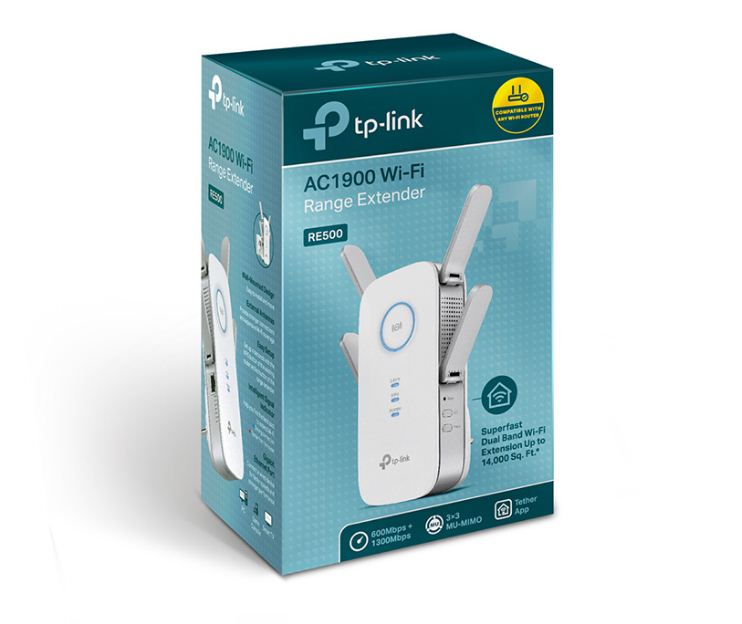

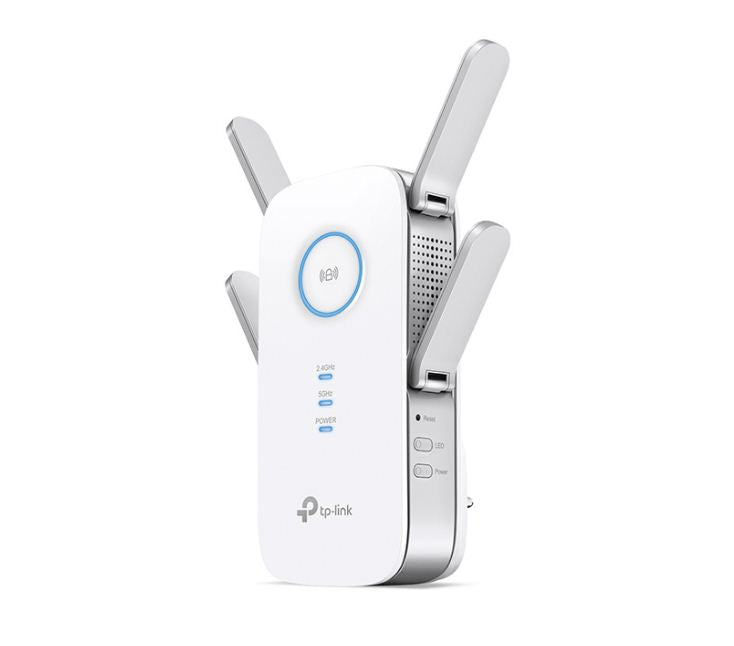

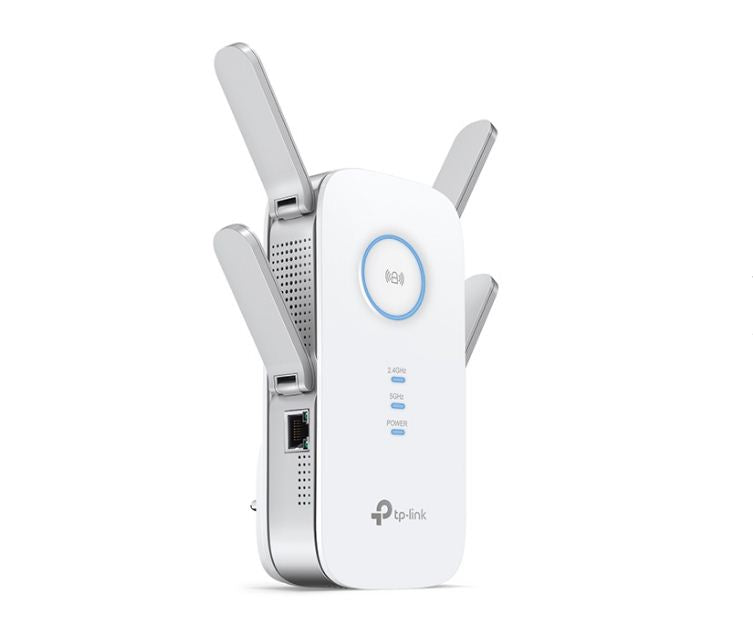

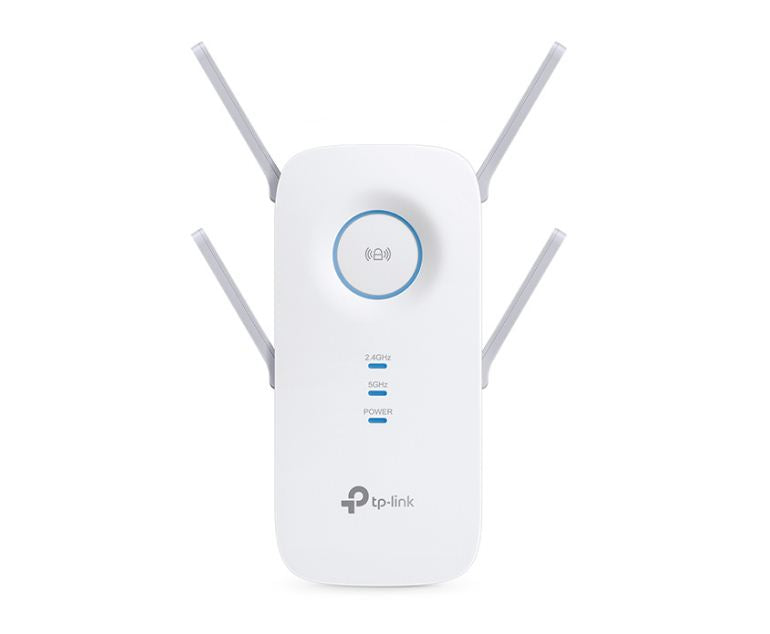

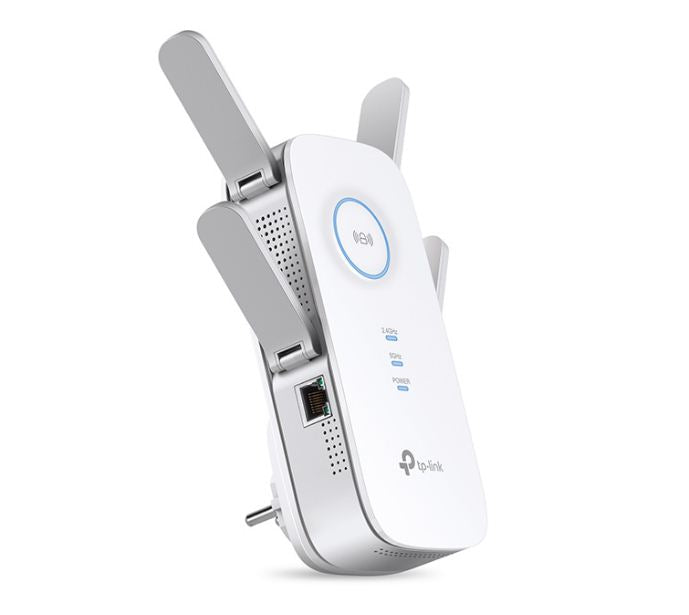

TP-Link RE500 - AC1900 WIFI Range Extender

Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage. AC1900 Dual Band Wi-Fi – Simultaneous 600Mbps on 2.4GHz + 1300Mbps on 5GHz* 3×3 MU-MIMO – Simultaneously transfers data to multiple devices for 3x faster performance** Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections Gigabit Ethernet Port – Provide faster wired connections to smart TVs, computers and gaming consoles Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability TP-Link Tether App – Easily access and manage your network using any iOS or Android mobile device Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

AC1900 Dual-band Speed for Everyone Simultaneously Running up to 3x faster than traditional AC range extenders, the RE500 uses 3×3 MU-MIMO technology to serve up to three devices at once, reducing wait time and boosting Wi-Fi throughput for every device.

3-Stream technology helps reach maximum speeds of up to 600Mbps on 2.4GHz and 1300Mbps on 5GHz, supporting your most demanding online activities, including simultaneous 4K streaming and lag-free gaming.

Super-Fast Dual Band Wi-Fi Extension With four external dual band antennas, the RE500 establishes a stable wireless connection to any Wi-Fi router and boosts the WiFi coverage to the area you want. Beamforming adds strength to the coverage by detecting the location of devices and concentrating Wi-Fi towards them for targeted connections.

Find the Best Spot with Intelligent Signal Indicator The Intelligent Signal Light helps you quickly find the best location to install the RE500.

Easy Monitoring and Control TP-Link Tether is an intuitive app that let you conveniently monitor the state of your range extender, control its functions and alter its settings from any compatible mobile device

Specification

HARDWARE FEATURES Plug Type: EU, UK, US, AU Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Interface: 1 x 10/100/1000M Ethernet Port (RJ45) Button: WPS Button, Reset Button, LED Button, Power Button Power Consumption: 12W（max power consumption） Dimensions: ( W x D x H ) 6.4 x 3.4 x 1.6 in. (163 x 86 x 40mm) Antenna: 4 x external

WIRELESS FEATURES Frequency: 2.4GHz & 5GHz(11ac) Signal Rate: 5GHz:Up to 1300Mbps 2.4GHz: Up to 600Mpbs

Reception Sensitivity:

 5GHz 11a 6Mbps:-96dBm@10% PER 11a 54Mbps: -78dBm@10% PER 11ac HT20 mcs8: -69dBm@10% PER 11ac HT40 mcs9: -66dBm@10% PER 11ac HT80 mcs9: -63dBm@10% PER 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER

Transmit Power:

<20dBm(2.4GHz) <23dBm(5GHz)

Wireless Modes 5GHz 11a 6Mbps:-96dBm@10% PER 11a 54Mbps: -78dBm@10% PER 11ac HT20 mcs8: -69dBm@10% PER 11ac HT40 mcs9: -66dBm@10% PER 11ac HT80 mcs9: -63dBm@10% PER 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER

Wireless Functions

Wireless Statistic Concurrent Mode boost both 2.4G/5G WiFi band Access Control LED Control Domain Login Function

Wireless Security

64/128-bit WEP WPA-PSK / WPA2-PSK

OTHERS Certification: FCC, RoHS Package Contents: AC1900 Wi-Fi Range Extender RE500 Quick Installation Guide Box Dimensions: (W X D X H) 7.9 x 4.9 x 3.8 in. (202 x 125 x 97mm) System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. Environment Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
