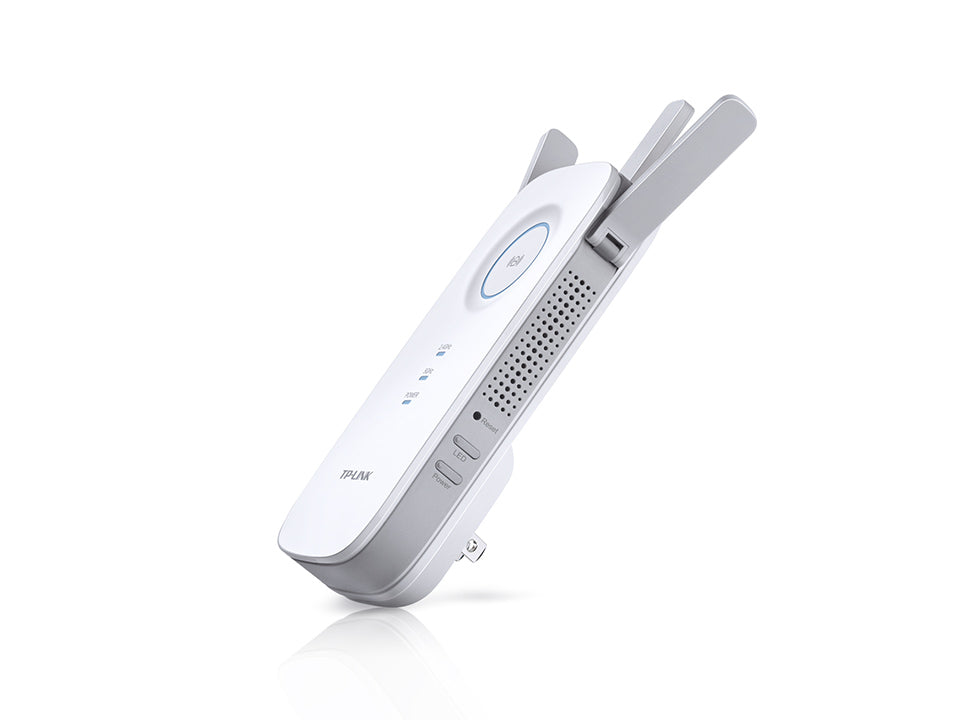

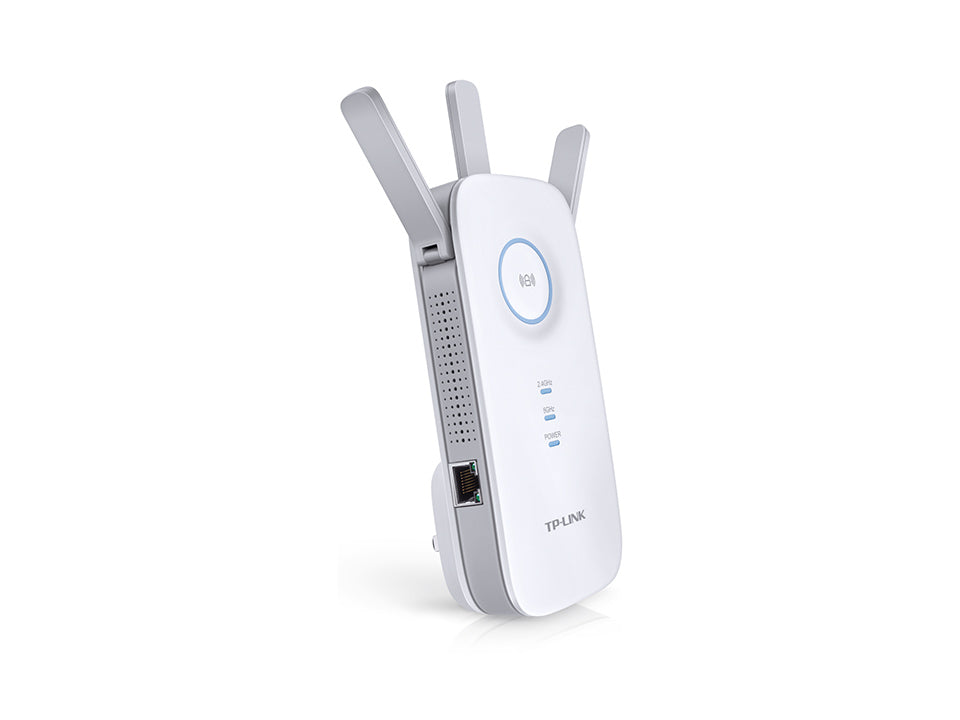

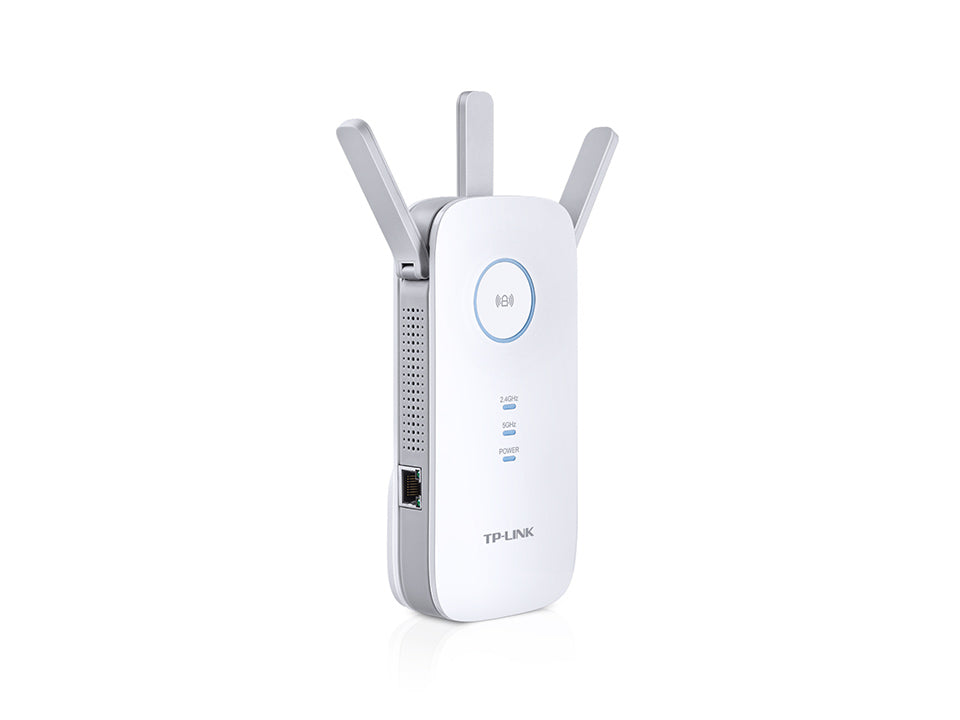

TP-Link RE355 AC1200 Wi-Fi Range Extender

Features

AC1200 Wi-Fi Range Extender
RE355

• Expand Wi-Fi Network for Ultimate Performance
• Expanded 300Mbps on 2.4GHz + 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds
• Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
• Gigabit Ethernet port acts as a wireless adapter to connect a wired device to your network at gigabit speed
• Intelligent signal light helps to fi nd the best location for optimal Wi-Fi coverage by showing the signal strength
• Works with any Wi-Fi router or wireless access point

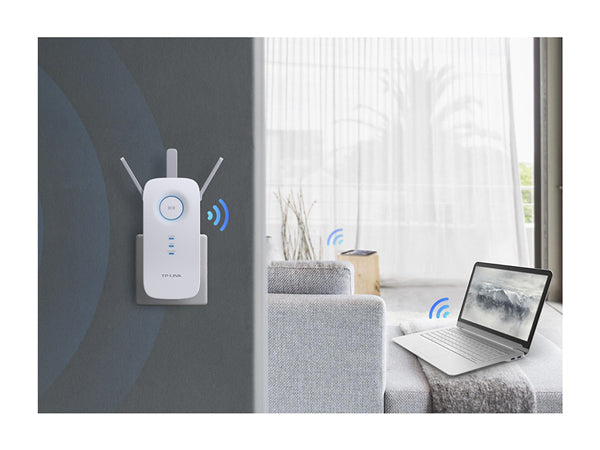

Boost Your Wi-Fi Coverage Up to 10,000 sq ft*

Tired of Wi-Fi “dead zones”? The TP-LINK AC1200 Wi-Fi Range Extender connects to your router wirelessly, strengthening and expanding its signal into areas it can’t reach on its own. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.

Enjoy Your Wi-Fi NetWork

Super-Fast Speed Next Generation AC Wi-Fi

TP-LINK's RE355 comes with next generation 802.11AC Wi-Fi technology, it's 3 times faster than the standard 802.11n speeds. The RE355 delivers fast speeds of dual band Wi-Fi up to 1.2Gbps, providing reliable connections for bandwidth-intensive tasks like HD/4K streaming, lag free gaming, large file downloads.


Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps WiFi

The RE355 operates over both the 2.4GHz and 5GHz bands. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band - all at the same time.

Gigabit Wired Speed

A gigabit Ethernet port turns the extender into a wireless bridge, letting you connect a wired device like a Blu-ray player, gaming console, DVR, or smart TV to your Wi-Fi network.

Easy Installation & Quick Position

Easy Installation with RE Button

The extender RE355 works with any standard wireless router. Instantly connect the RE355 to a router by pressing the extender’s RE button followed by the router’s WPS button (if available).

Once connected with an existing router, you can take RE355 to an ideal place, no more further configurations.

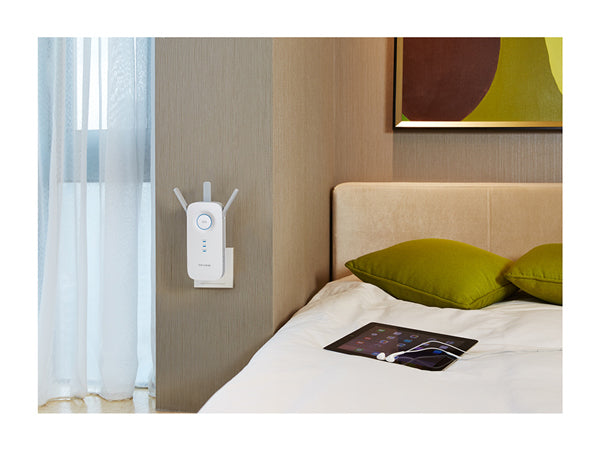

Quick Positioning with Intelligent Signal Indicator

The Intelligent signal light can help to find the best location to place the extender.

High Performance External Antennas

Three external dual band antennas (3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz) boost your wireless coverage and reliability, helping your devices stay connected anywhere your network reaches.
High Speed Mode

High Speed Mode

High Speed mode maximizes overall performance by combining the bandwidth of both the 5GHz and 2.4GHz channels to create a lightning-fast connection with one band sending data and the other receiving it.

Specifications

HARDWARE FEATURES

Plug Type EU, UK, US

Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Interface
1 * 10/100/1000M Ethernet Port (RJ45)

Button

RE (Range Extender) Button, Reset Button, LED Button, Power Button

Power Consumption
9W?max power consumption?

Antenna
3* external

Dimensions ( W x D x H ) 6.4x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm)

WIRELESS FEATURES

Frequency 2.4GHz & 5GHz(11ac)

Signal Rate

5GHz:Up to 867Mbps
2.4GHz:Up to 300Mpbs

Reception Sensitivity

5GHz?
11a 6Mbps:-93dBm@10% PER
11a 54Mbps: -76dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -64dBm@10% PER
11ac HT80 mcs9: -61dBm@10% PER

2.4GHz
11g 54M: -77dBm@10% PER
11n HT20 mcs7: -73dBm@10% PER
11n HT40 mcs7: -70dBm@10% PER

Wireless Modes Range Extender

Wireless Functions

Wireless Statistic
Concurrent Mode boost both 2.4G/5G WiFi band
High Speed Mode for great speed for HD Gaming and video
Access Control
LED Control
Domain Login Function

Wireless Security

64/128-bit WEP
WPA-PSK / WPA2-PSK

Transmission Power

<20dBm(2.4GHz)
<23dBm(5GHz)

OTHERS

Certification CE, FCC, UL, RoHS

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0°C~30°C (32°F~86°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
