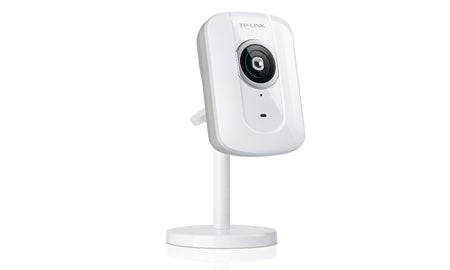

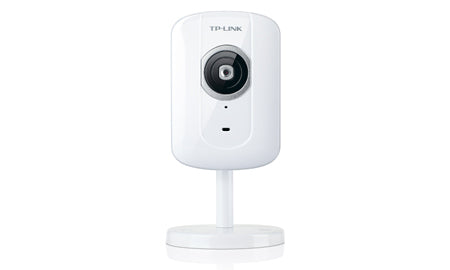

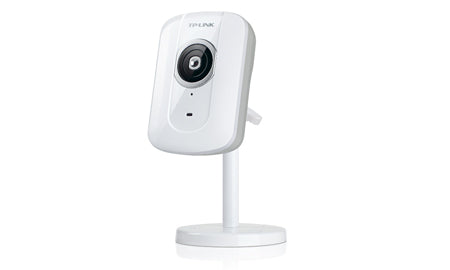

The TL-SC2020 Network Security Camera is a versatile solution for your home and office monitoring. It can be placed in your living room, office, or anywhere else you would like to keep an eye on things. After a hassle-free installation, you can view and control the camera from a Web browser, bundled software, or compatible cell phone.
16-channel Management Software
The surveillance software coming with the IP camera assists you manage multiple cameras at the same time. With it, video from 16 cameras can be displayed on one screen. You can archive streaming video and audio straight to your hard drive, playback video, and monitor up to 16 cameras on a single screen.
Crystal Clear Image
The low-light-sensitive CMOS sensor on this camera adapts Progressive Scan technology, boosting the performance greatly compared to traditional Interlaced Scan technology, provides good image quality even in the dawn.
Features
Specifications
CAMERA | |
---|---|
Image Sensor | 1/4" Progressive scan CMOS sensor |
Digital Zoom | 10x Digital |
Minimum Illumination | 0.5 Lux |
VIDEO/IMAGE | |
---|---|
Video Compression | Motion JPEG |
Frame Rate & Resolutions | Up to 30(NTSC) / 25(PAL) fps at 640x480, 320x240, 160x120 |
Video Streaming | Motion JPEG |
Image Settings | Rotation: Mirror, Flip, Mirror Flip; Brightness, Contrast, Saturation, Hue; Overlay capabilities:Time, Date, Text and Privacy image |
AUDIO | |
---|---|
Audio Communication | One-way |
Audio Input | Built-in microphone |
Audio Compression | G.711 PCM, 8 kHz, 64 kbit/s |
ALARM AND EVENT MANAGEMENT | |
---|---|
Events Trigger | Built-in motion detection, schedule |
Notification Method | E-mail, FTP, HTTP |
NETWORK | |
---|---|
Standards and Protocols | TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP,UDP,3GPP/ISMA RTSP |

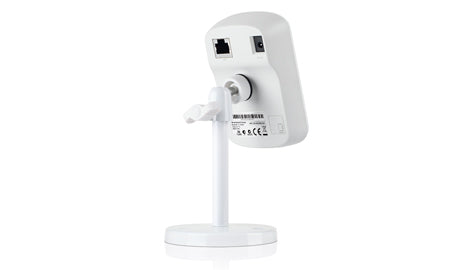

INTERFACES | |
---|---|
Network Interface | 1 RJ- 45 for Ethernet 10/100 Base-T |
Power Connector | DC power jack |
Audio Input | Built-in microphone |
Button | Reset push button |
SURVEILLANCE MANAGEMENT | |
---|---|
Bundled Management Software | Viewing and recording up to 16 cameras |
GENERAL | |
---|---|
External Power Supply | 5VDC, Max 3W |
Certification | CE, FCC, RoHS |
Package Contents | Network Security Camera TL-SC2020 Power Adapter RJ-45 Ethernet Cable Quick Installation Guide Resource CD Camera Mount Kit |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Dimensions( H X W X D ) | 96 x 66 x 28 mm (3.8 x 2.9 x 1.1 in.) |
Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.
Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
