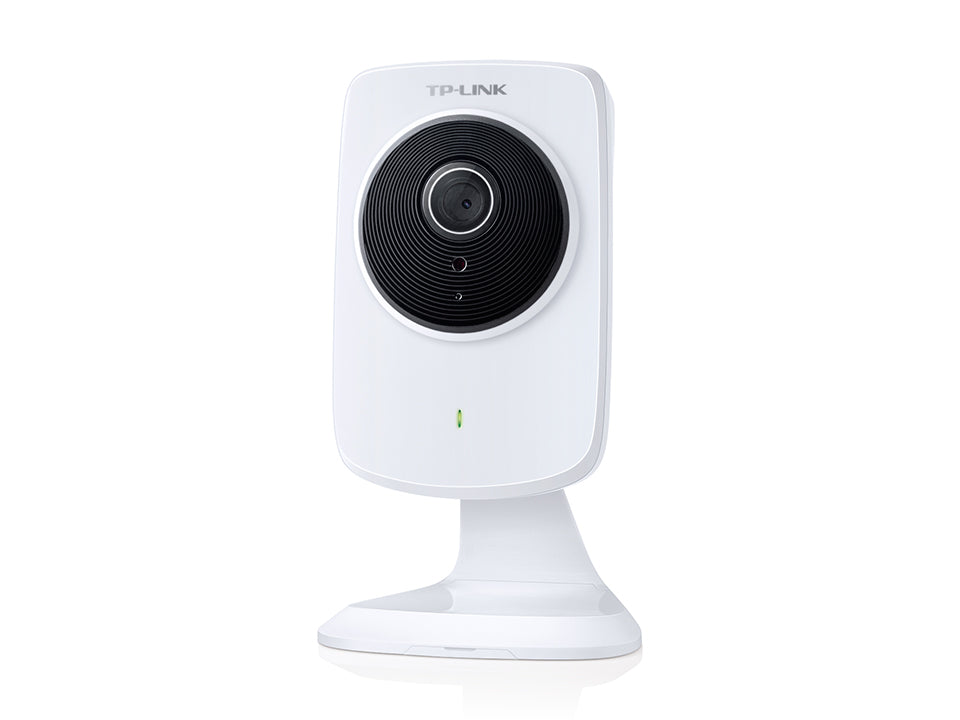

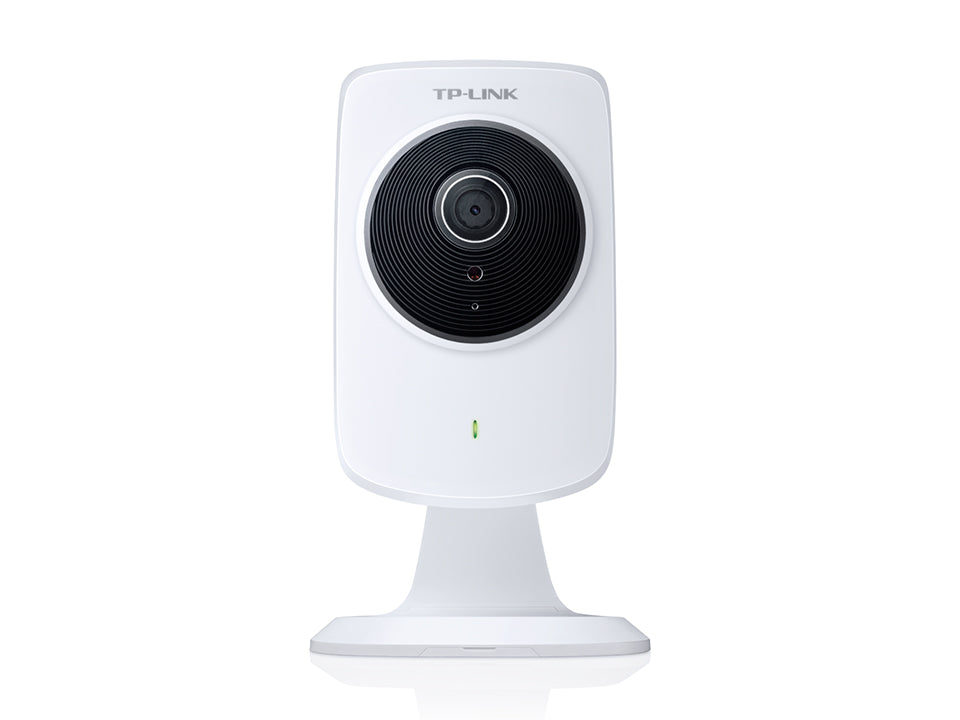

TP-Link NC230 HD Day/Night Wi-Fi Cloud Camera

NC230

• 720p HD Imaging - HD resolution provides sharper, clearer images
• Night Vision - Automatic night vision functionality supports 24-hour surveillance
• H.264 Compression - Ensure smooth HD video streaming while consuming less bandwidth
• tpCamera App - Use the tpCamera app to access feeds from anywhere, at any time
• Motion & Sound Detection - Immediate email notifications whenever motion or sound is detected
• Easy Setup - Install and operate the camera in minutes
• 150Mbps Wireless - 150Mbps wireless for stable connectivity and Wi-Fi extension

Stay Connected and Secure

The NC230 is a perfect companion for your home or office, helping you be connected with what matters most while you’re away.

tpCamera App for Remote Viewing

The tpCamera App lets you monitor events, record video, and snap pictures wherever you have an Internet connection. Make sure everything’s OK and never miss a special moment, even when you’re not on the scene.

See Everything Clearly

With 720p HD resolution and a larger viewing angle, the NC230 enhances your monitoring capabilities by capturing every detail and providing a sharper, larger picture.

Peace of Mind
during Day and Night

The NC230 monitors up to 18 feet away in total darkness with its Night Vision Technology.

Whether during the day times or at night, NC230 with excellent image quality always gives you a great peace of mind.

Instant Alert
When Something’s up

The NC230 can be set to send notifications automatically by email as soon as it detects motion or sound, keeping you aware of what’s happening as it happens.

Simple Setup

Install the NC230 by following steps:

1.Connect the camera to your network via Ethernet cable * ( If you have a router with a WPS button, you can
complete setup wirelessly )

2.Download the FREE tpCamera app

3.Follow the on-screen instructions

Flexible Placement

NC230’s compact design lets you place it anywhere you want, including tables, walls, or even the ceiling.

Tips: 1. Stick the tape on the camera 2. Stick the camera on the wall

Specifications

CAMERA

Image Sensor 1/4" Progressive scan CMOS sensor

Resolution 1.0 Megapixel (1280 x 720)

Lens F: 2.8, f: 3.85 mm

Viewing Angle FOV = 64°

Digital Zoom 4x Digital

VIDEO/IMAGE

Video Compression H.264

Frame Rate & Resolutions Max. 20 fps at 1280x720 (HD)

Video Streaming Controllable Frame rate

Image Settings

Rotation: Mirror, Flip
Configurable brightness, contrast, saturation

Overlay capabilities: time, date, text

AUDIO

Audio Communication 1-Way

Audio Input Built-in Microphone

ALARM AND EVENT MANAGEMENT

Notification E-mail

Triggering Event Motion/Sound detection

NETWORK

Standards and Protocols Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP,
SMTP,DNS, UPnP, HTTP and UDP

Security Multiple password-protected user levels

WIRELESS

Wireless Data Rates IEEE 802.11 b/g/n, Up to 150Mbps

Frequency 2.4-2.4835GHz

Wireless Transmit Power <20dBm (EIRP)

Wireless Encryption WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

INTERFACES

Network Interface RJ-45 for Ethernet 10/100 Base-T

Power Connector DC power jack

Button Reset/WPS push button

SURVEILLANCE MANAGEMENT
Free Management Software Viewing and recording up to 36 cameras

MINIMUM SYSTEM REQUIREMENTS

Smartphone OS iOS 7.0 or higher

Android 3.0 or higher

Supported Browser Mozilla Firefox 4.0 or higher, Opera 12 or higher, Safari 5.0 or higher, IE 8.0 or higher, Chrome 5.0 or higher

GENERAL

External Power Supply 9V DC, Max 5.4W

Environment Operating Temperature: 0°C~40°C (32°F ~104°F)

Storage Temperature: -40°C ~70°C (-40°F ~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Dimensions( H X W X D ) 5.4 x 3.0 x 2.7 in. ( 137 x 76 x 69 mm )

Packaging Dimensions 5.0 x 3.1 x 8.8 in. (128 x 79.5 x 223mm
