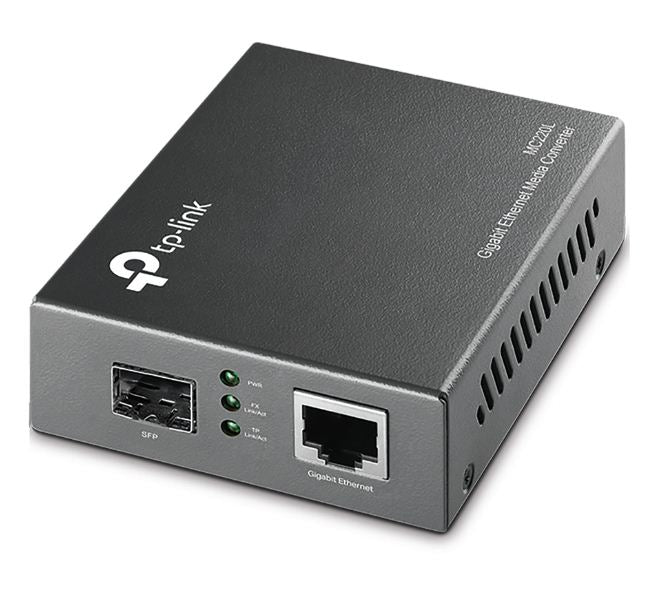

TP-Link MC220L Gigabit SFP Media Converter

Buy TP-Link MC220L Gigabit SFP Media Converter online at Rs. 9990. Buy complete range of Media Converters on Vmart.pk, We Offer home delivery all over Pakistan.

• Complies with IEEE 802.3ab and IEEE 802.3z
• FX port supports hot-swappable
• Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.

IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

0.55km for multi-mode fiber and 10km for single-mode fiber

1 1000M SFP port , 1 10/100/1000M RJ45 port (Auto MDI/MDIX)

Depends on the used SFP module

1000BASE-X Multi-mode/Single-mode SFP module

1000BASE-T UTP category 5, 5e, 6 cable (maxium 100m) EIA/TIA-568 100Ω STP (maximum 100m)

PWR, LINK, RX

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

External Power Adapter

1.7W

FCC, CE

0~40 (32~104)

-40~70 (-40~158)

10%~90% non-condensing

5%~90% non-condensing
