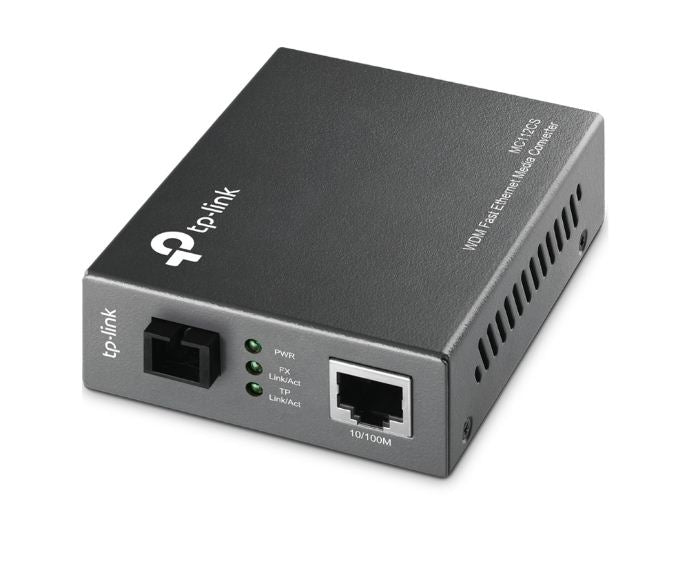

TP-Link MC112CS 10/100Mbps WDM Media Converter

Buy TP-Link MC112CS 10/100Mbps WDM Media Converter online at Rs. 5490. Buy complete range of Media Converters on Vmart.pk, We Offer home delivery all over Pakistan.

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
• Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
• Adopts WDM technology, transmitting and receiving data on one single fiber

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINK’s media converter MC111CS is just one of the examples to cooperate with MC112CS.

Other features of this module include the ability to be used as a stand alone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Adopts WDM technology

transfer mode for FX port

Extends fiber distance up to 20km

1 100M SC/UPC port

1 100M RJ45 port (Auto MDI/MDIX)

1310nm Tx/1550nm Rx

1310nm

1550nm

10BASE-T UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-T UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-FX Single-mode Fiber

PWR, FDX/Col, Link/Act, SPD

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

External Power Adapter

2.41W

FCC, CE, RoHS

0℃~40℃ (32℉~104℉)

-40℃~70℃ (-40℉~158℉)

10%~90% non-condensing

: 5%~90% non-condensing
