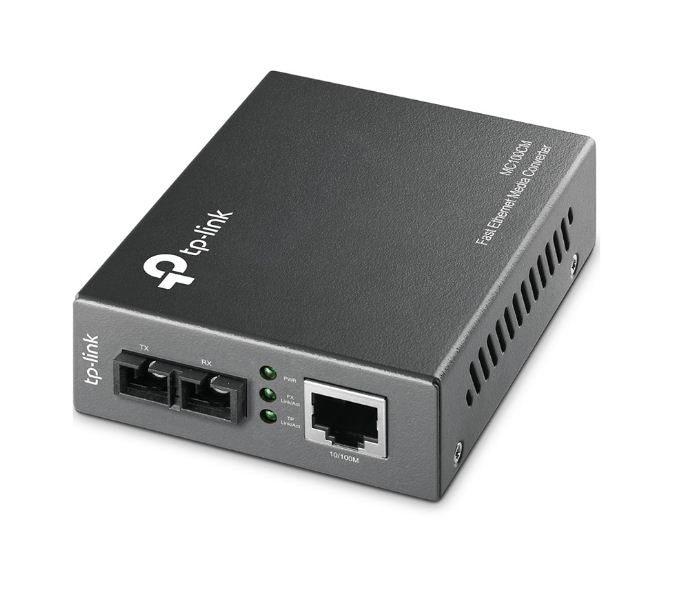

TP-Link MC100CM 10/100Mbps Multi Mode Media Converter

Buy TP-Link MC100CM 10/100Mbps Multi Mode Media Converter online at Rs. 8990. Buy complete range of Media Converters on Vmart.pk, We Offer home delivery all over Pakistan.

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
• Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
• Extends fiber distance up to 2km

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

(IEEE 802.3x)

(Backpressure)

2km

1 100M SC/UPC port, 1 100M RJ45 port (Auto MDI/MDIX)

1310nm

10BASE-T UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-T UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-FX Multi-mode Fiber

PWR, Link/Act

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

External power supply

2.4W

FCC, CE, RoHS

0℃~40℃ (32℉~104℉)

-40℃~70℃ (-40℉~158℉)

10%~90% non-condensing

5%~90% non-condensing
