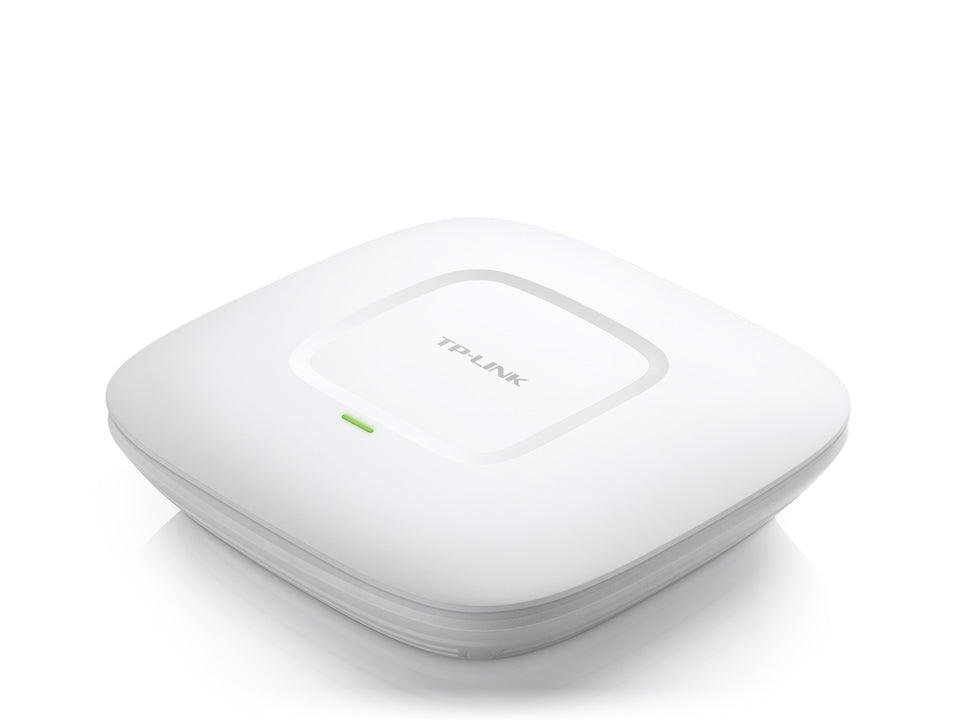

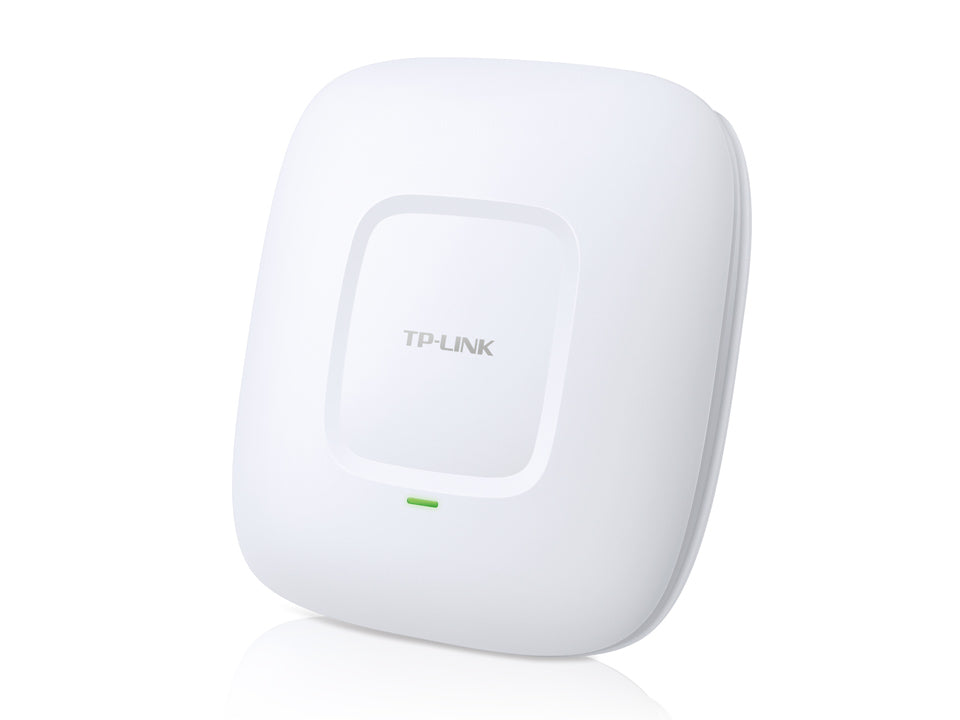

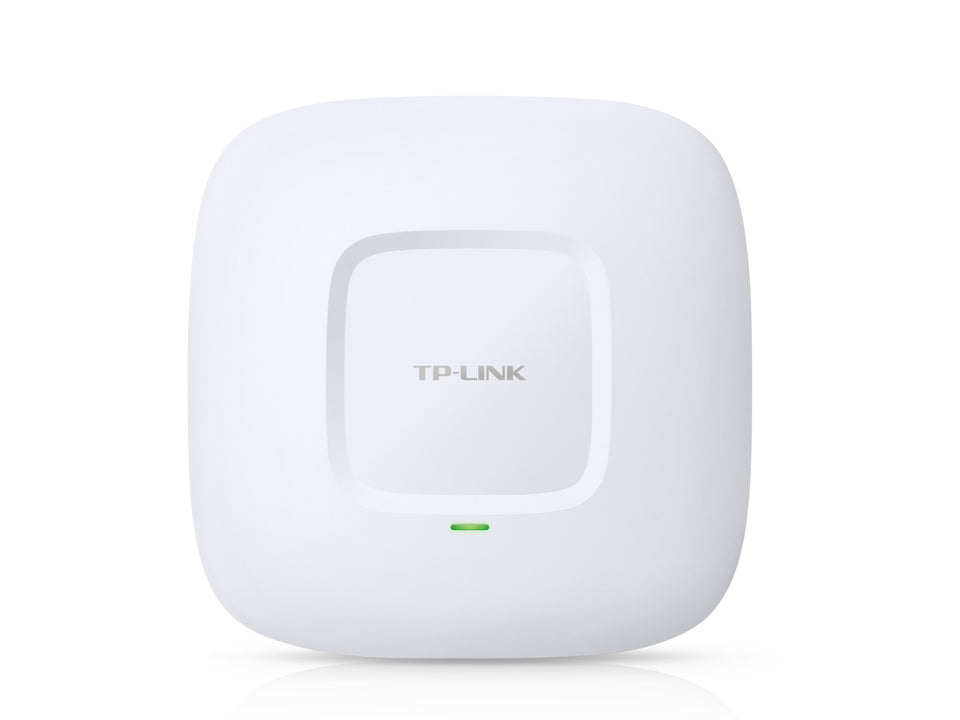

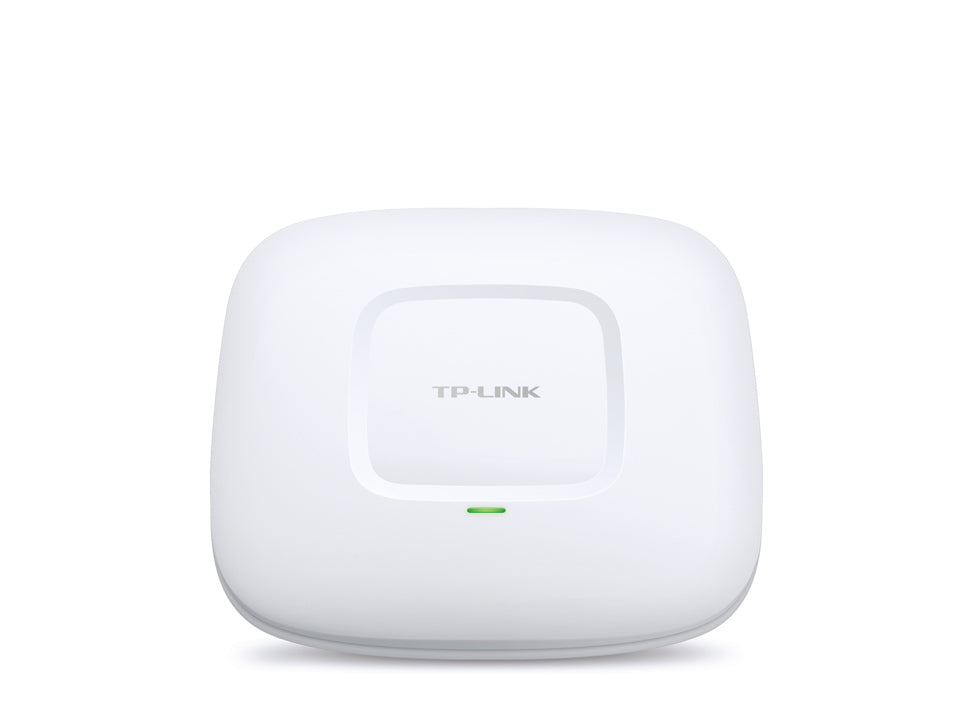

TP-Link EAP220 N600 Wireless Gigabit Ceiling Mount Access Point
- Rs.13,839
- Rs.13,839
- Unit price
- per
Please hurry! Only 0 left in stock
Features
- EAP Controller Software enables administrators to easily manage hundreds of EAPs
- Support Power over Ethernet（802.3af）for convenient and affordable installation
- Simple mounting design to easily mount to a wall or ceiling
- 600Mbps wireless data rate for uninterrupted wireless connection
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
- Multi-SSID divides multiple wireless network for different users
- Load balance ensures large numbers of users have smooth network experiences in large business networks
- Compatible with 802.11 a/b/g/n products
- Gigabit Ethernet port enables bandwidth-intensive application or multimedia transferring
- Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
- Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
- QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
- Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.
Flexible Placement Easy mounting design & PoE
The EAP’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP series APs support Power over Ethernet (PoE) to make deployment effortless and flexible.
Business Class Wireless Powerful Hardware
- EAP features 802.11n Wi-Fi and 2*2 MIMO technology - EAP220 supports simultaneous dual band in 2.4 and 5GHz for 600Mbps wireless speeds
- EAP120’s wireless speeds of up to 300Mbps - Gigabit Ethernet port ensures high speed
Internet access - With Qualcomm Atheros 560MHz chipsets ,
EAP ensures incredible wireless coverage and reliability
Centralized Wi-Fi Management
Management Software
The free controller software allows administrators to easy manage up to hundreds of EAPs through a single IP to like an Access Controller.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interfaces | Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE） Console Port *1 |
| Button | Reset, Power On/Off |
| Dimensions ( W x D x H ) | 7.1 x 7.1 x 1.9 in. (180*180*47.5mm) |
| Antenna Type | Internal 4* 4dBi Omni |
| Power Consumption | 9.6 W |
| Power Supply | PoE or External 12VDC / 1.5A Power Supply |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Physical Security Lock | Kensington Lock Slot |
| Watch Dog | Yes |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 5GHz 300M：-68dBm@10%PER 150M：-72dBm@10%PER 54M：-73dBm@10%PER 2.4GHz 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Transmit Power | FCC: <26dBm(2.4GHz) <20dBm(5GHz) CE: <20dBm |
| Wireless Functions | Multiple SSIDs （Up to 16 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Load Balance Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
|---|---|
| EAP Controller Software | Yes |
| Cluster | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| Web-based Management | HTTP/HTTPS |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | N600 Wireless Gigabit Ceiling Mount Access Point EAP220 Power Adapter Mounting Kits Resource CD Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8 |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty
18 months local warranty
