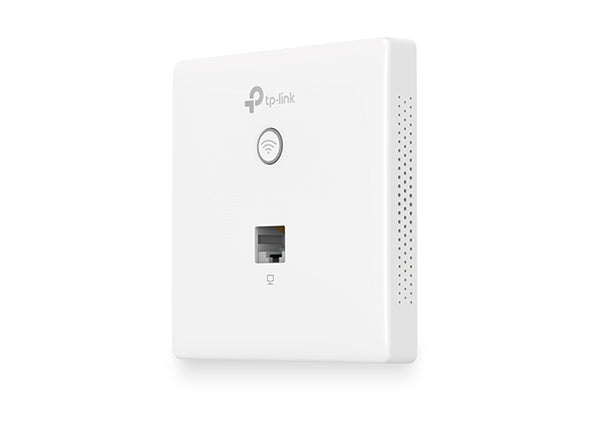

TP-Link EAP115-Wall 300Mbps Wireless N Wall-Plate Access Point

Buy TP-Link EAP115-Wall 300Mbps Wireless N Wall-Plate Access Point online at Rs. 10290. Buy complete range of Wireless Access Points on Vmart.pk, We Offer home delivery all over Pakistan.

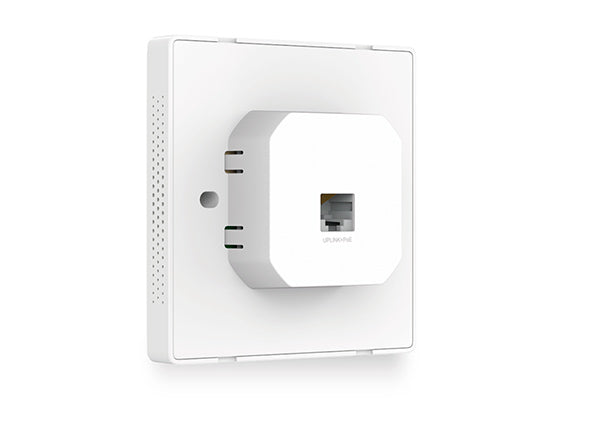

Installation Made Easy

• Detach the faceplate of the junction box* with a screwdriver.
• Remove the faceplate of the EAP.
• Connect an in-wall Ethernet cable to the Uplink+POE port.
• Secure the access point to the wall using the nails provided.
• Press the faceplate back into position.

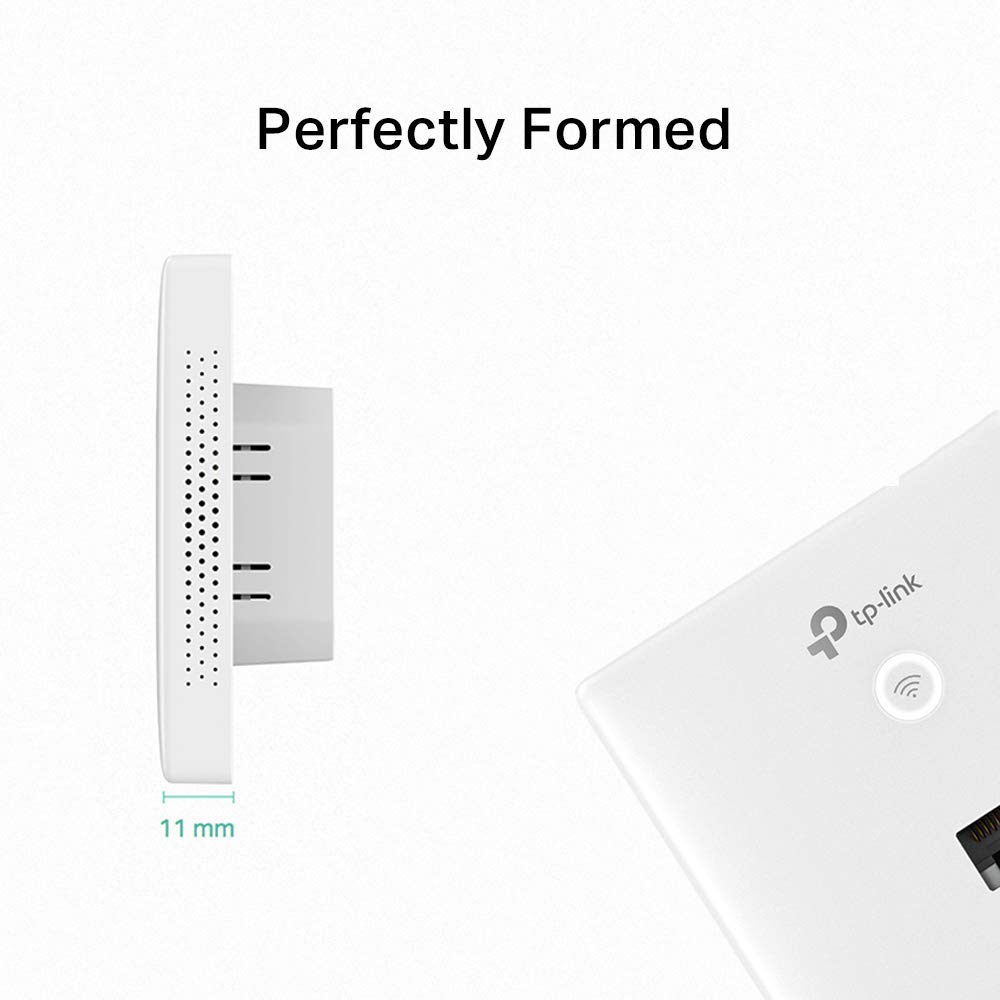

Perfectly Formed

The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.

Effortless Deployment

With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.

Complete Wireless Coverage

An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.

Free Cloud Centralized Management - Anytime, Anywhere

Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications Hardware Specs Interface

• 10/100Mbps Ethernet (RJ-45) Port *2

Button

• LED/Wi-Fi Button、RESET

Power Supply

• PoE(IEEE 802.3af)

Power Consumption

• 2.8 W

Dimensions ( W x D x H )

• 3.4×3.4×1.2 in. (86.8*86.8*30.2 mm)

Antenna Type

• Internal 2*1.8dBi Omni

Mounting

• Wall Plate Mounting

Hardware Watch Dog

• Yes

Wireless Specs Wireless Standards

• IEEE 802.11n/g/b

Frequency

• 2.4GHz

Signal Rate 11n:

• Up to 300Mbps(dynamic)

11g:

• Up to 54Mbps(dynamic)

11b:

• Up to 11Mbps(dynamic)

Transmit Power CE：

• ≤20dBm(2.4GHz)

Wireless Functions

• Multiple SSIDs（Up to 8 SSIDs）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,
• WPA-PSK / WPA2-PSK

MANAGEMENT Omada Cloud Access

• Yes

Omada App

• Yes

Omada Cloud Controller

• Yes

Omada Controller Software

• Yes

EAP Controller Software

• Yes

Email Alerts

• Yes

LED ON/OFF Control

• Yes

Management MAC Access Control

• Yes

SNMP

• v1,v2c

System Logging Local/Remote Syslog

• Local/Remote Syslog

Telnet

• Yes

SSH

• Yes

Web-based Management

• HTTP/HTTPS

L3 Management

• Yes

Multi-site Management

• Yes

Management VLAN

• Yes

OTHERS Certification

• CE, RoHS

Package Contents

• 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall
• Installation Guide
• Mounting Screw

System Requirements

• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment Operating Temperature:

• 0℃~40℃ (32℉~104℉)

Storage Temperature:

• -40℃~70℃ (-40℉~158℉)

Operating Humidity:

• 10%~90% non-condensing

Storage Humidity:

• 5%~90% non-condensing
