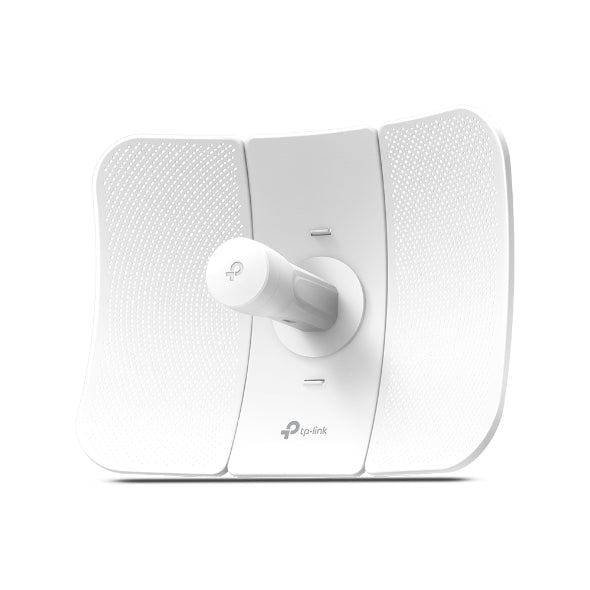

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE

Buy TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE online at Rs. 16990. Buy complete range of Wireless Access Points on Vmart.pk, We Offer home delivery all over Pakistan.

23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission

With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps1 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.

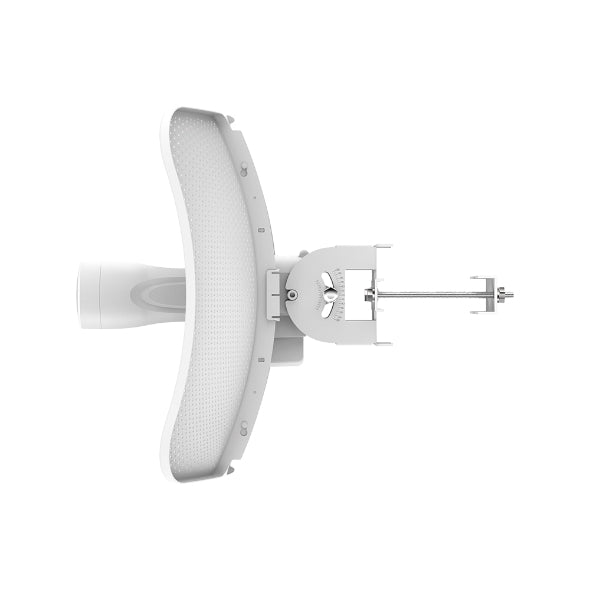

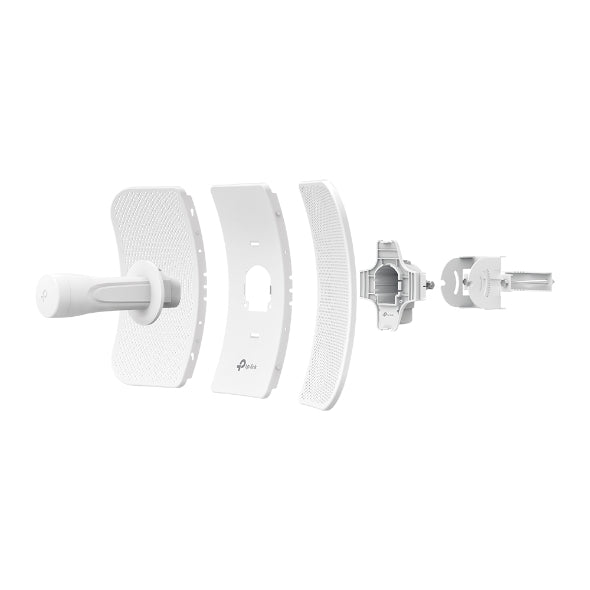

Snap-lock parts make assembly simple and convenientPole mount kits and the freedom of three-axis alignment facilitate flexible installationSturdy design ensures stability in windy conditions

Small and lightweight boxes benefit shipping, logistics and retail.

560MHz CPU, MIPS 74Kc

64MB DDR2 RAM,8MB Flash

1 10/100Mbps Shielded Ethernet Port (LAN/POE)

1 Reset Button

Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

16-27VDC

8.8 W

When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

14.4 x 11.0 x 8.1 in

23dBi

9°(Azimuth), 7°(Elevation)

15KV ESD Protection

6KV Lightning Protection

Material: Outdoor PC stabilized plastic

Weatherproof: IP65 water and dust proof design

IEEE 802.11a/n

TDMA Mode (with Pharos MAXtream enabled)

Up to 300Mbps (40MHz,Dynamic)

Up to 144.4Mbps (20MHz,Dynamic)

Up to 72.2Mbps (10MHz,Dynamic)

Up to 36.1Mbps (5MHz,Dynamic)

5.15~5.85GHz

. 25dBm (Adjustable power by 1dBm)

WAN: Static/Dynamic/PPPoE/L2TP/PPTP

LAN: Static/Dynamic/DHCP

Forwarding: ALG/UPnP/Virtual Server/Port Trigger

Security: SPI Firewall/ Ping Forbidden/DoS Protection

Access Control

Static Routing

Bandwidth Control

IP & MAC Binding

:Pharos MAXtream TDMA Technology

Selectable Channel Width: 5/10/20/40MHz

Auto Channel Selection

Transmit Power Control

Dynamic Frequency Selection(DFS)

WDS Enable/Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,

64/128/152-bit WEP Encryption

SSID Broadcast Enable/Disable

Multi-SSID with VLAN Tagging(AP Mode only)

Distance/ACK Timeout Setting

Wireless MAC Address Filter

Wireless Advanced:

Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Discovery and Remote Management via Pharos Control application

HTTP/HTTPS Web-based management

System log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server

Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory

Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute

Optimized IGMP Snooping/Proxy for multicast applications

Hardware watch dog

4.3 x 2.2 x 1.3 in

1 AC Jack with Earth Ground

1 10/100Mbps Shielded Ethernet Port (Power + Data)

1 10/100Mbps Shielded Ethernet Port (Data)

Remote Reset Button

Green

100-240VAC, 50/60Hz

24VDC, 0.5A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

>84.29%

CE/FCC

FCC, RoHS

Outdoor Wireless CPE

24V 0.5A Passive PoE Adapter

Pole Mounting Straps

AC Power Cord

Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing
