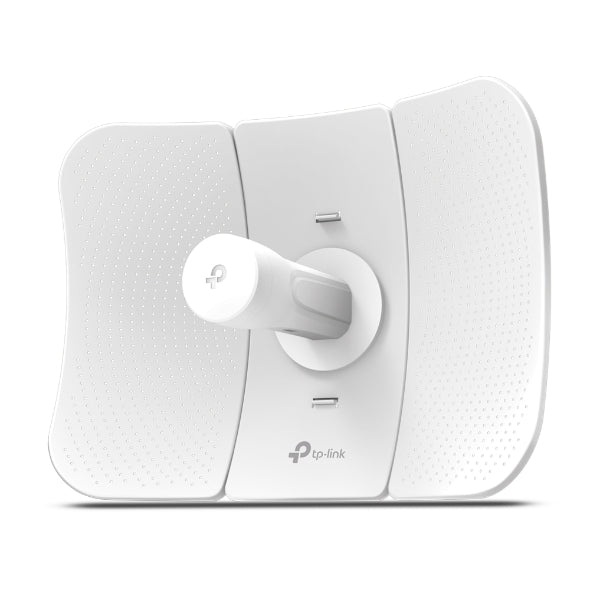

TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE

Buy TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE online at Rs. 11750. Buy complete range of Wireless Access Points on Vmart.pk, We Offer home delivery all over Pakistan.

23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission

With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.

Small and lightweight boxes benefit shipping, logistics and retail.

CPE605 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface-PharOS-provides an alternative management method, and allows professionals to access more detailed configurations.

Qualcomm 560MHz CPU, MIPS 74Kc

64MB DDR2 RAM,8MB Flash

1 10/100Mbps Shielded Ethernet Port (LAN/POE)

1 Reset Button

Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)

Voltage range: 16-27VDC

( W x D x H ) 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)

23dBi

7°(Azimuth), 10°(Elevation)

15KV ESD Protection

6KV Lightning Protection

Material: Outdoor PC stabilized plastic

Weatherproof: IP65 water and dust proof design

IEEE 802.11a/n

TDMA Mode (with Pharos MAXtream enabled)

Up to 150Mbps (40MHz,Dynamic)

Up to 72.2Mbps (20MHz,Dynamic)

Up to 36.1Mbps (10MHz,Dynamic)

Up to 18.05Mbps (5MHz,Dynamic)

5.15~5.85GHz

Max. 23dBm (Adjustable power by 1dBm)

Yes

WAN: Static/Dynamic/PPPoE/L2TP/PPTP

LAN: Static/Dynamic/DHCP

Forwarding: ALG/UPnP/Virtual Server/Port Trigger

Security: SPI Firewall/ Ping Forbidden/DoS Protection

Access Control

Static Routing

Bandwidth Control

IP & MAC Binding

Pharos MAXtream TDMA Technology

Selectable Channel Width: 5/10/20/40MHz

Auto Channel Selection

Transmit Power Control

Dynamic Frequency Selection(DFS)

WDS Enable/Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,

64/128/152-bit WEP Encryption

SSID Broadcast Enable/Disable

Multi-SSID with VLAN Tagging(AP Mode only)

Distance/ACK Timeout Setting

Wireless MAC Address Filter

Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Discovery and Remote Management via Pharos Control application

HTTP/HTTPS Web-based management

System log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server

Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory

Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute

Optimized IGMP Snooping/Proxy for multicast applications

Hardware watch dog

Dimensions(W x D x H) 85.8×43.9×29.7 mm

Interfaces 1 AC Jack with Earth Ground

1 10/100Mbps Shielded Ethernet Port (Power + Data)

1 10/100Mbps Shielded Ethernet Port (Data)

Button Remote Reset Button

Power Status LEDs Green

Input 100-240VAC, 50/60Hz

Output 24VDC, 0.6A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

>84.29%

CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

CE, FCC, RoHS, IP65

Outdoor Wireless CPE

24V 0.5A Passive PoE Adapter

Pole Mounting Straps

AC Power Cord

Installation Guide

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Operating Temperature: -40℃~70℃ (-40℉~158℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing
