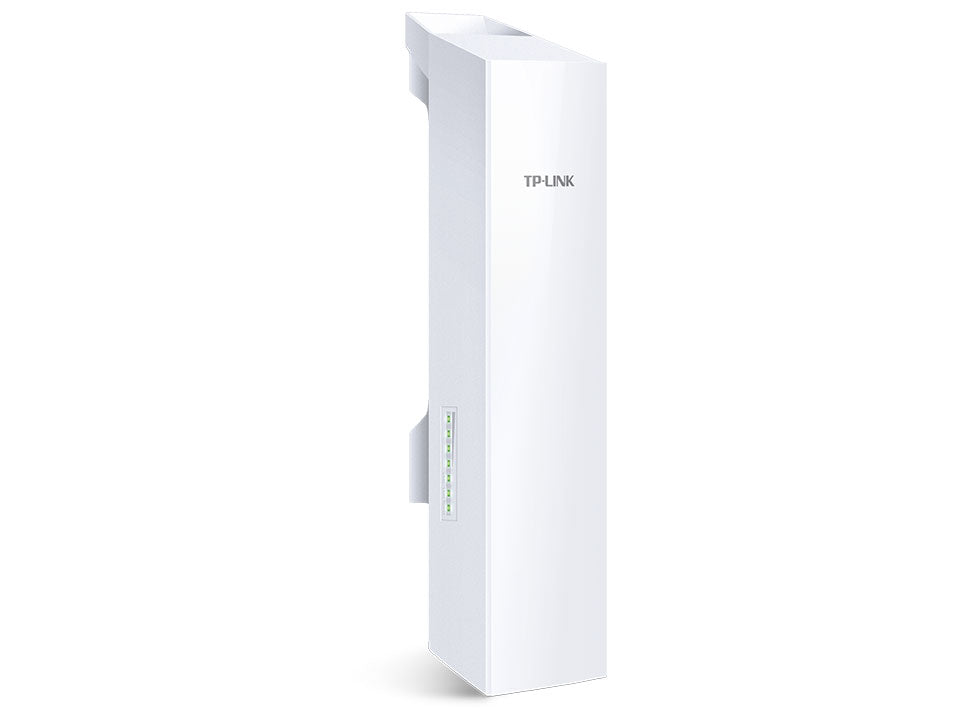

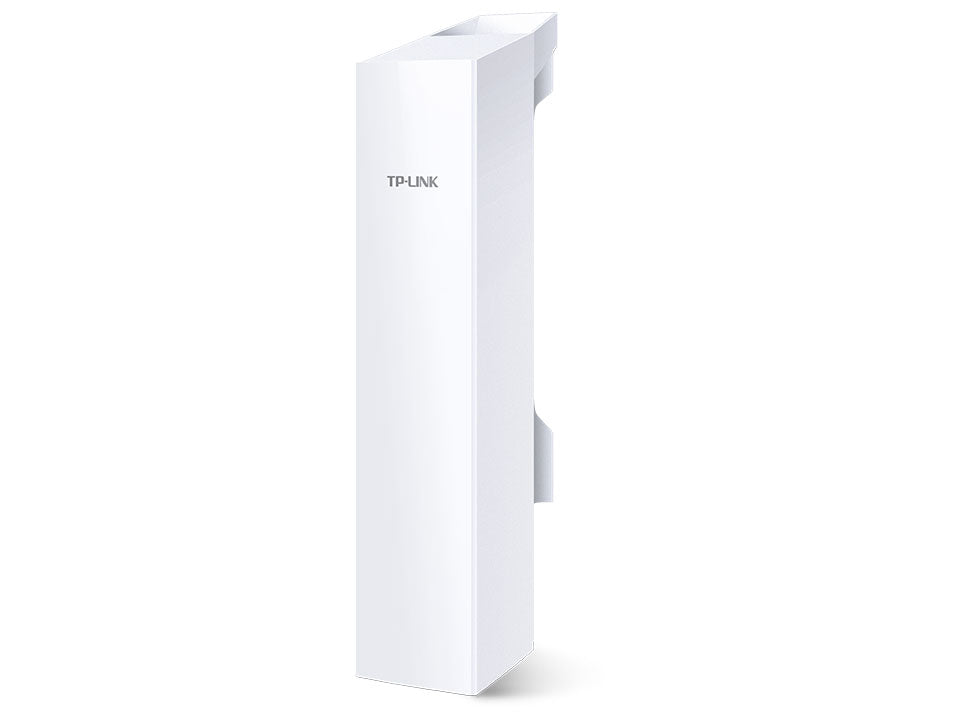

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

Buy TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE online at Rs. 12990. Buy complete range of Category on Vmart.pk, We Offer home delivery all over Pakistan.

• Built-in 12dBi 2x2 dual-polarized directional MIMO antenna Adjustable transmission power from 0 to 30dBm/1000mw
• System-level optimizations for more than 13km long range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System – Pharos Control AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.

CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

User-friendly web-based management system allows professionals to do more specific configurations.

Qualcomm Atheros 560MHz CPU, MIPS 74Kc

64MB DDR2 RAM, 8MB Flash

1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)

1 Grounding Terminal

1 Reset Button

Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

16-27VDC

10.8 Watts Max

When deployed using Passive PoE, the power drawn from the power source will

be higher by some amount depending on the length of the connecting cable.

11×3.1×2.1 inch (276×79×60 mm)

Built-in 12dBi 2x2 Dual-polarized Directional Antenna

60° (H-Plane) / 30° (E-Plane)

For more details, please refer to datasheet

15KV ESD Protection

6KV Lightning Protection

Outdoor ASA stabilized plastic material

IPX5 waterproof Certification

IEEE 802.11b/g/n (with Pharos MAXtream disabled)

TDMA Mode (with Pharos MAXtream enabled)

Up to 300Mbps (40MHz,Dynamic)

Up to 144.4Mbps (20MHz,Dynamic)

Up to 72.2Mbps (10MHz,Dynamic)

Up to 36.1Mbps (5MHz,Dynamic)

2.4~2.483GHz

Available operating frequency may vary depending on the limitations

of the countries or regions in which the device is used.

30dBm/1000mw (Adjustable power by 1dBm)

Maximum transmission power may vary across different channels depending

on the limitations of the countries or regions in which the device is used.

Pharos MAXtream TDMA Technology

802.11b/g/n Modes

Selectable Channel Width: 5/10/20/40MHz

Automatic Channel Selection

Transmission Power Control

Dynamic Frequency Selection (DFS)

WDS Enable/Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption

SSID Broadcast Enable/Disable

Multi-SSID with VLAN Tagging (AP mode only)

Distance/ACK Timeout Setting

Wireless MAC Address Filter

Wireless Advanced:

> Beacon Interval/RTS Threshold/Fragmentation

>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Discovery and Remote Management via Pharos Control application

HTTP/HTTPS Web-based management

System Log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server

Wireless Signal Quality Indicators:

Signal Strength/Noise/Transmit CCQ/CPU/Memory

Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute

Optimized IGMP Snooping/Proxy for multicast applications

Hardware watch dog

110×57×33.5mm

0.8A Max @ 100VAC

100VA~240VAC @ 50Hz~60Hz

24VDC, 1.0A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

>80%

24VDC(+4,5pins; -7,8pins)

100-240VAC, 50/60Hz

0~0.8A: Green

0.8A~1.0A: Red

CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

1 AC Jack with Earth Ground

1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)

1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)

Remote Reset Button

CE, FCC, RoHS, IPX5

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,

MAC OS, NetWare, UNIX or Linux.

We recommend you to use one of following Web browsers for an improved user

Google Chrome, Safari, and Firefox. IE browsers are not recommended.

-40°C~70°C (-40℉~158℉)

-40℃~70℃ (-40℉~158℉)

10%~90% non-condensing

5%~95% non-condensing
