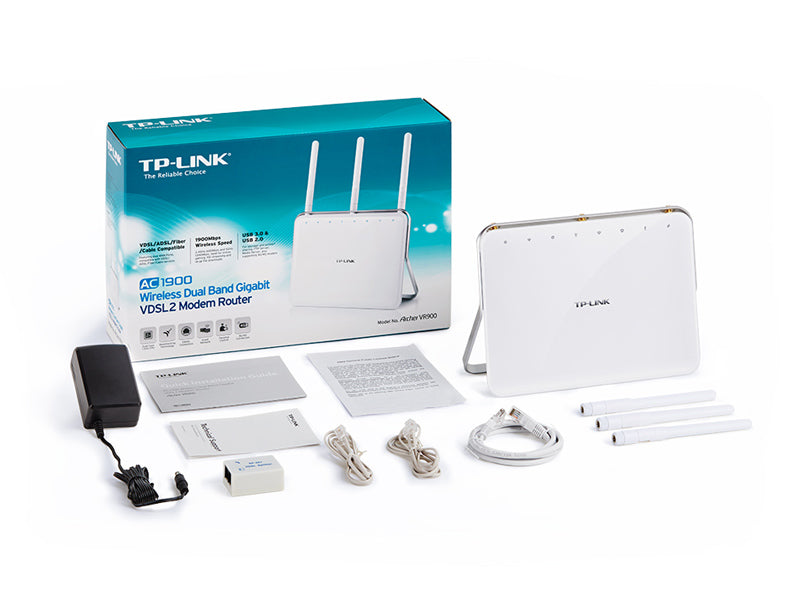

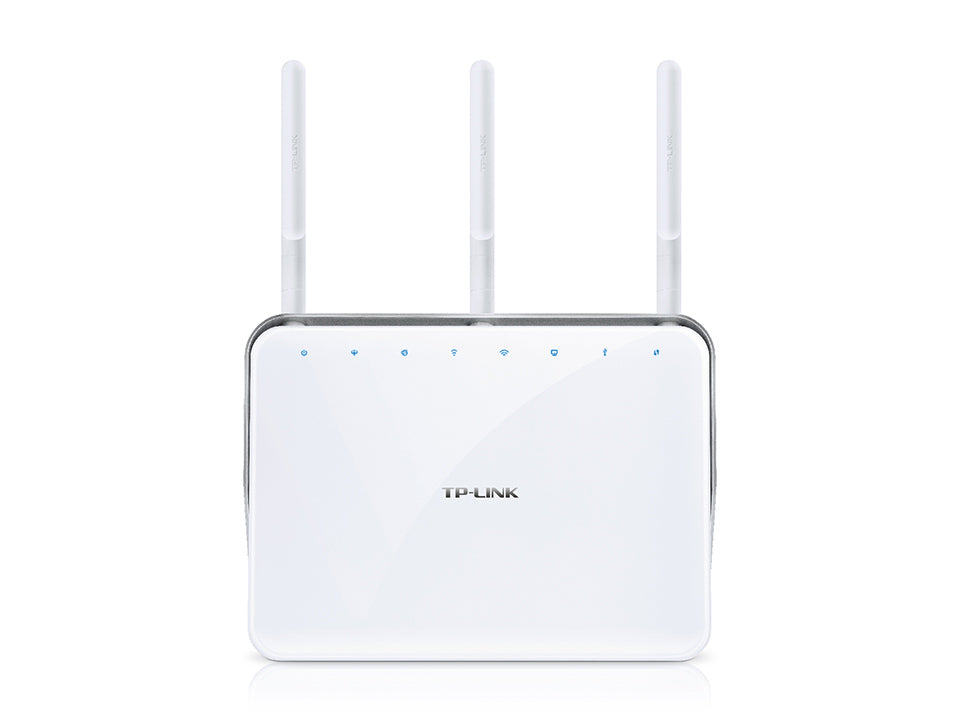

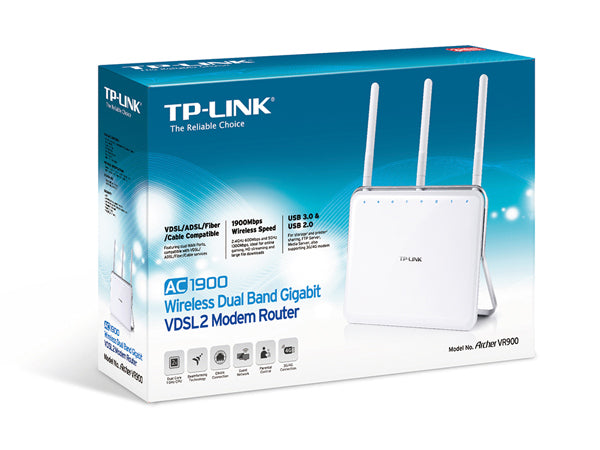

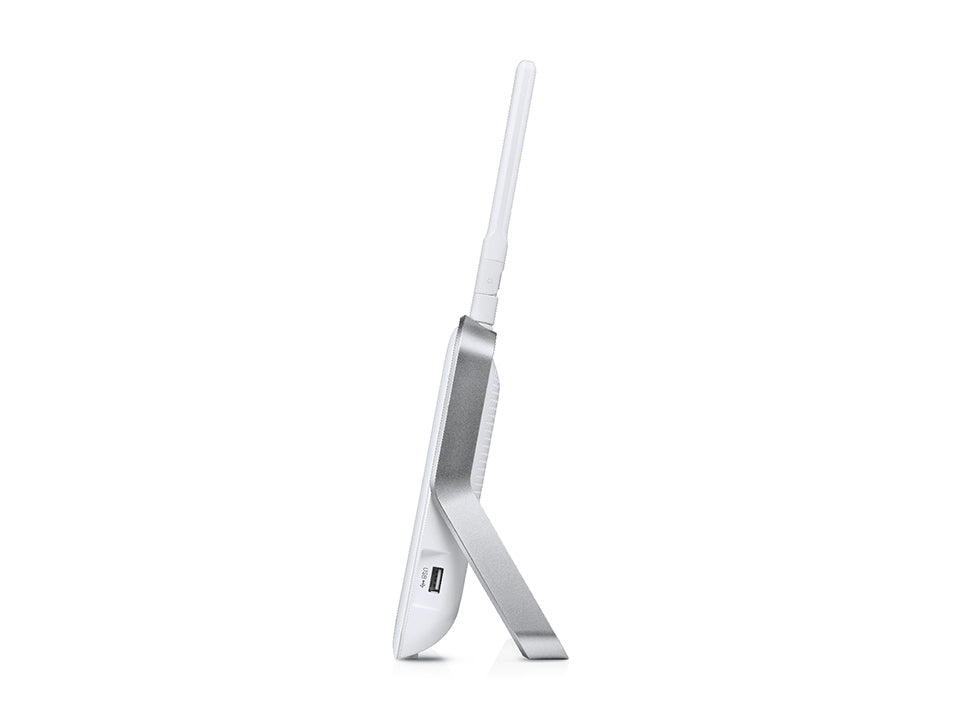

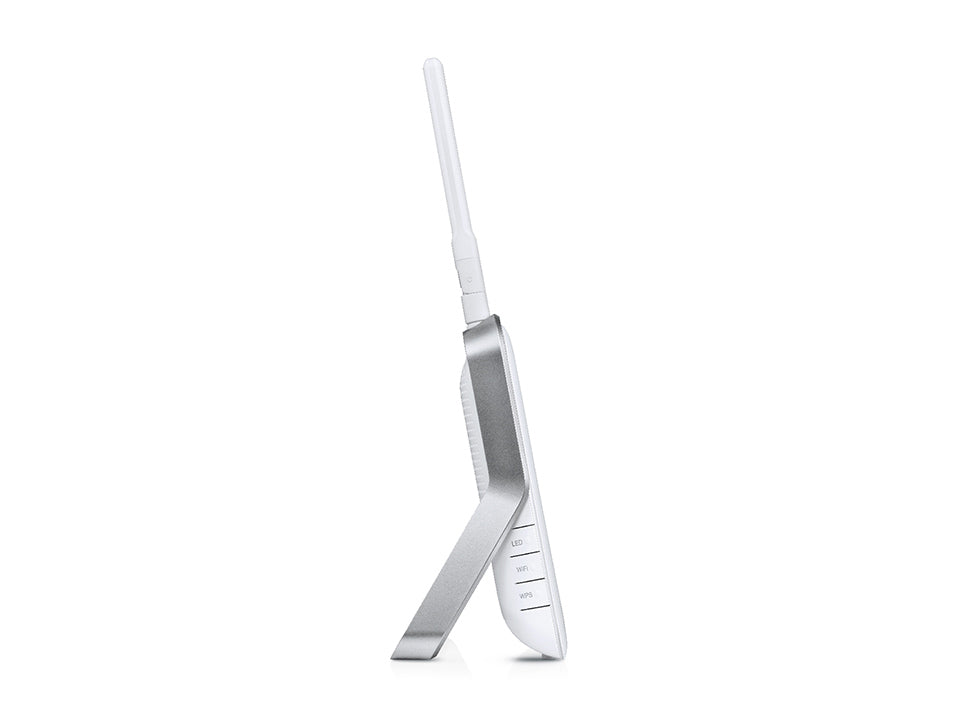

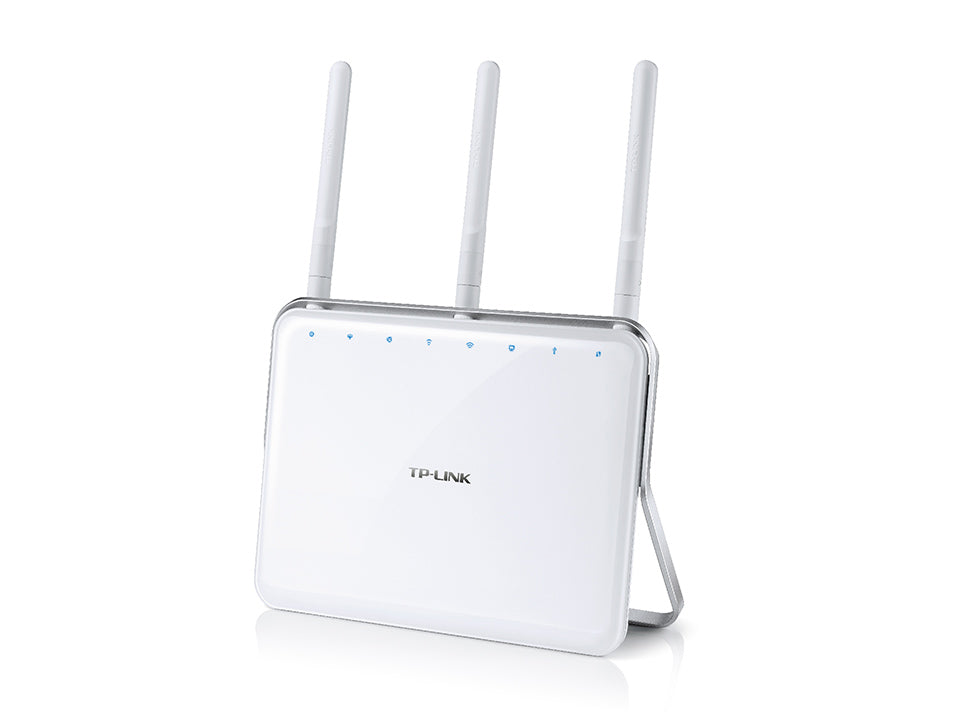

Tp-link Archer VR900 AC1900 Wireless Gigabit VDSL/ADSL Modem Router

AC1900 Wireless Gigabit VDSL/ADSL Modem Router

Archer VR900

• Versatile Connectivity – Ethernet WAN and USB ports, the VR900 is fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standard, fiber/cable access and 3G/4G USB dongles
• Superfast Wi-Fi – 600Mbps on 2.4GHz + 1300Mbps on 5GHz
• Maximum Range – High power amplifiers and 3 dual band detachable antennas provide maximum Omni-directional wireless coverage and reliability
• 1GHz Dual-core Processor – Ensures no interruption while processing multiple wired or wireless tasks simultaneously
• Beamforming Technology – Improves wireless range and performance on both 2.4GHz and 5GHz band

Features

Broadband and Wi-Fi Unleashed

The Archer VR900 features superfast broadband speeds of up to 100Mbps and supports VDSL2,as well as backward compatibility with ADSL2+/ADSL2/ADSL.

The modem router exploits the full potential of VDSL broadband connections to deliver Wi-Fi speeds of up to 1900Mbps(600Mbps on 2.4 GHz and 1300Mbps on 5GHz). Also, by using two dedicated networks, it reduces wireless signal interference.

1300Mbps
5GHz band

600Mbps
2.4GHz band

Versatile Connectivity

The Archer VR900 is an integrated DSL modem router that works with any kind of Internet connection, including VDSL2, ADSL, ADSL2, and ADSL2+.

With the Gigabit Ethernet WAN option, the Archer VR900 can also be used with any fiber broadband or cable modem with an Ethernet output.

While the DSL and Ethernet WAN inputs provide universal compatibility with any Internet service, both of the USB ports also support 3G/4G dongle connections. This universal router gives you the flexibility to keep your current ISP or change ISPs in the future, without compromis-ing wireless performance.

Better Coverage and a More Stable Connection

Three external antennas help the Archer VR900 provide stable coverage throughout your entire home and property. Advanced Beamforming technology automatically locates wireless devices and forms targeted, highly efficient wireless connections.

High Performance Antennas

The Archer VR900 features three specially-designed, detachable antennas. The antennas boast gains of 3x2 dBi on the 2.4GHz band and 3x3 dBi on the 5GHz band, ensuring both stability and reach. All three are completely adjustable to ensure optimal orientation and provide you with the best possible Wi-Fi performance.

3x 2dBi
2.4GHz

3x 3dBi
5GHz

Powerful Processor for Enhanced Performance

The powerful, 1GHz dual-core Broadcom processor boosts speeds and ensures that performance is never compromised even while simultaneously processing multiple wireless and/or wired tasks. Let the processor handle your busy network while you enjoy a hassle-free, connected life.

Fast USB Sharing

With USB 3.0 and 2.0 ports, you can easily access and share a local printer, a local network drive, or a remote FTP server. Storing, accessing, and sharing files and media has never been easier.

For added connection versatility, both USB ports support 3G/4G dongles, so you can stay connected without missing a beat.

• Printer
• Music
• Photos
• Video
• USB Dongle

Gigabit Wired Connection

With four built-in Gigabit Ethernet ports, the Archer VR900 is capable of providing the stable, ultra-fast wired connections that you need to ensure lag-free gaming and uninterrupted HD video streaming.

• IPTV
• Online Gaming
• Laptop
• HD Video

Elegant Appearance

The sophisticated design enhances every home. Its gentle curves, excellent crafting and remarkable quality exudes style and elegance without compromising on performance.

Easy Setup and Use

Set up the Archer VR900 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and media sharing.

Specifications

HARDWARE FEATURES

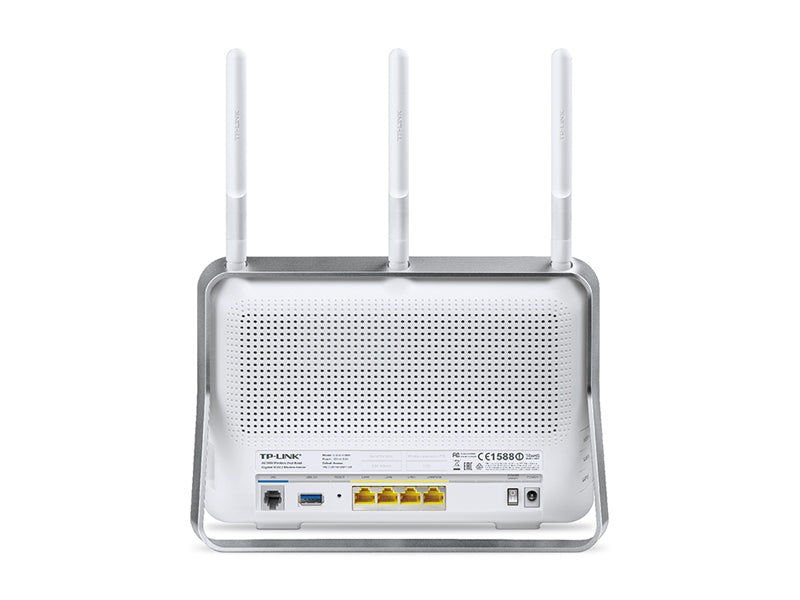

Interfaces

1 10/100/1000Mbps RJ45 WAN/LAN Port
3 10/100/1000Mbps RJ45 LAN Ports
1 RJ11 Port
1 USB 3.0 Port
1 USB 2.0 Port

Button

WPS Button, LED Button, Wireless On/Off Button, Power On/Off Button

External Power Supply

12V/3.3A

IEEE Standards

IEEE 802.3, IEEE 802.3u, 802.3ab

VDSL2 Standards

ITU G.993.2, Up to 30a pro le (POTS)
ITU-T G.993.5 (G.vector)
ADSL Standards Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1

ADSL2 Standards

ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards

ITU-T G.992.5

Dimensions ( W x D x H )

9.6 x 7.1 x 3.5 in. (245 x 181 x 90 mm)

Antenna Type

3 external detachable dual band antennas (RP-SMA)

Antenna Gain

3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz

Wireless Speeds

1300Mbps at 5GHz, 600Mbps at 2.4GHz

Frequency

2.4GHz and 5GHz

Transmit Power

<20dBm(EIRP)

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Support 2.4GHz and 5GHz Wireless Schedule

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, Wireless MAC Filtering

SOFTWARE FEATURES

Quality of Service

ATM QoS, Traf c Control(IP QoS)

Security

NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of
Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding

Operating Modes

VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router

Management

Web Based Con guration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based
Firmware Upgrade, Diagnostic Tools

DHCP

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding

Virtual Server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS

DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec Passthrough

Protocols

Supports IPv4 and IPv6

ATM/PPP Protocols

ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

Advanced Functions

Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3

USB Sharing

Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem

Guest Network

2.4GHz guest network x 1, 5GHz guest network x 1

IPSec VPN

Supports up to 10 IPSec VPN tunnels

OTHERS

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an Internet Service Provider (for Internet access)

Environment

Operating Temperature:

0?~40? (32? ~104?)

Storage Temperature:

-40?~70? (-40? ~158?)

Operating Humidity:

10%~90% non-condensing

Storage Humidity:

5%~90% non-condensing
