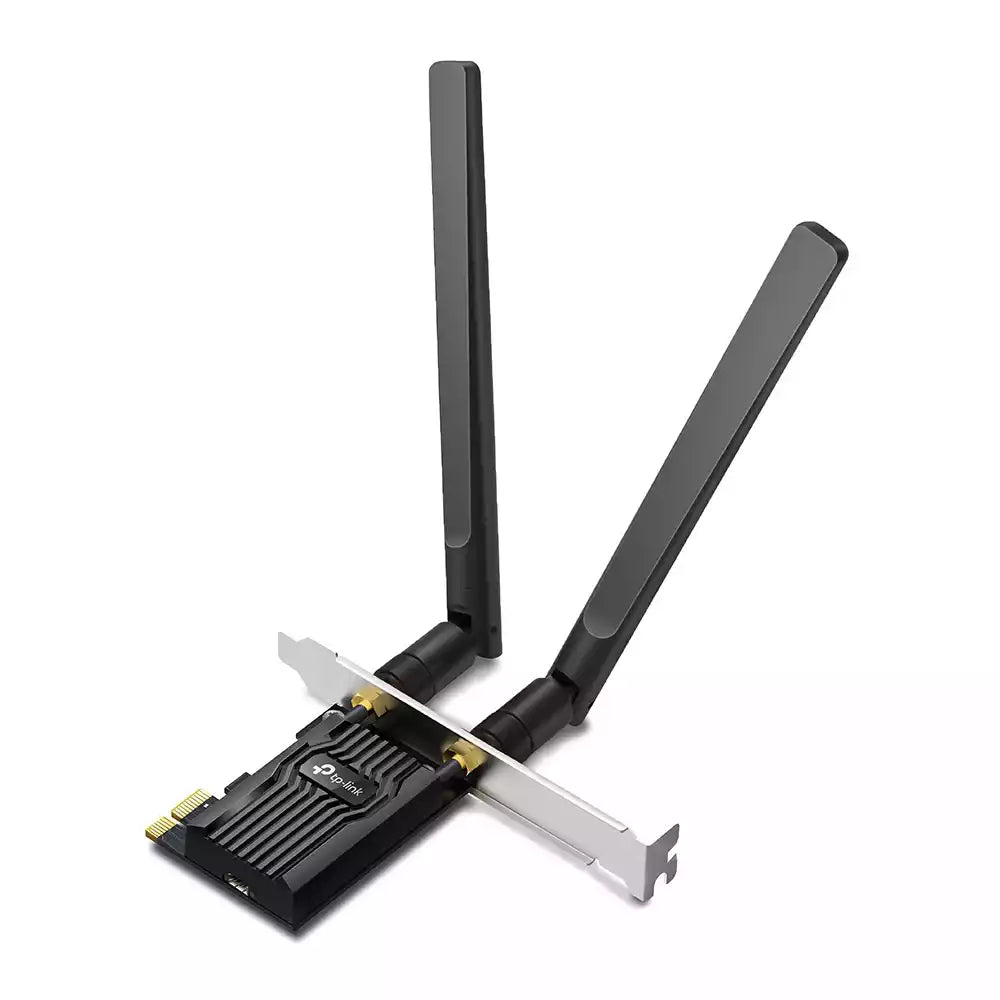

TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Buy TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter online at Rs. 9490. Buy complete range of Wireless Routers on Vmart.pk. We Offer home delivery all over Pakistan.

Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability

The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2

The latest security enhancements WPA3 provides enhanced protection in personal password safety

Full support for 802.11ax/ac/a/b/g/n standards

Dimensions 4.76 × 3.09 × 0.82 in

(120.8 × 78.5 × 20.9 mm)

Antenna Type Two High-Gain Dual Band Antennas

Chipset Realtek Wi-Fi 6 Chipset

Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/g/b 2.4 GHz

Bluetooth 5.2

WLAN Signal Rate 5 GHz

11ax: Up to 1201 Mbps(dynamic)

11ac: Up to 867 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz

11ax: Up to 574 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity 5 GHz :

11ax HE80: -57.0dBm

11ax HE40: -60.0dBm

11ax HE20: -63.0dBm

11ac VHT80: -59.5dBm

11ac VHT40: -62.5dBm

11ac VHT20: -67.5dBm

11n HT40: -69.5dBm

11n HT20: -72.5dBm

11a 54Mbps: -74.0dBm

11a 6Mbps: -94.5dBm

2.4GHz :

11ax HE40: -60.0dBm

11ax HE20: -63.0dBm

11n HT40: -69.5dBm

11n HT20: -72.5dBm

11g 54Mbps: -74.0dBm

11b 11Mbps: -88.0dBm

WLAN Transmit Power 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)

2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)

WLAN Modes Infrastructure mode

Wireless Security Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Certification CE, FCC, RoHS

Package Contents Archer TX20E

Two High-Gain Dual Band Antennas

Low-Profile Bracket

Bluetooth Header Cable

Quick Installation Guide

Resource CD

System Requirements Windows 11/10(64-bit) only

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
