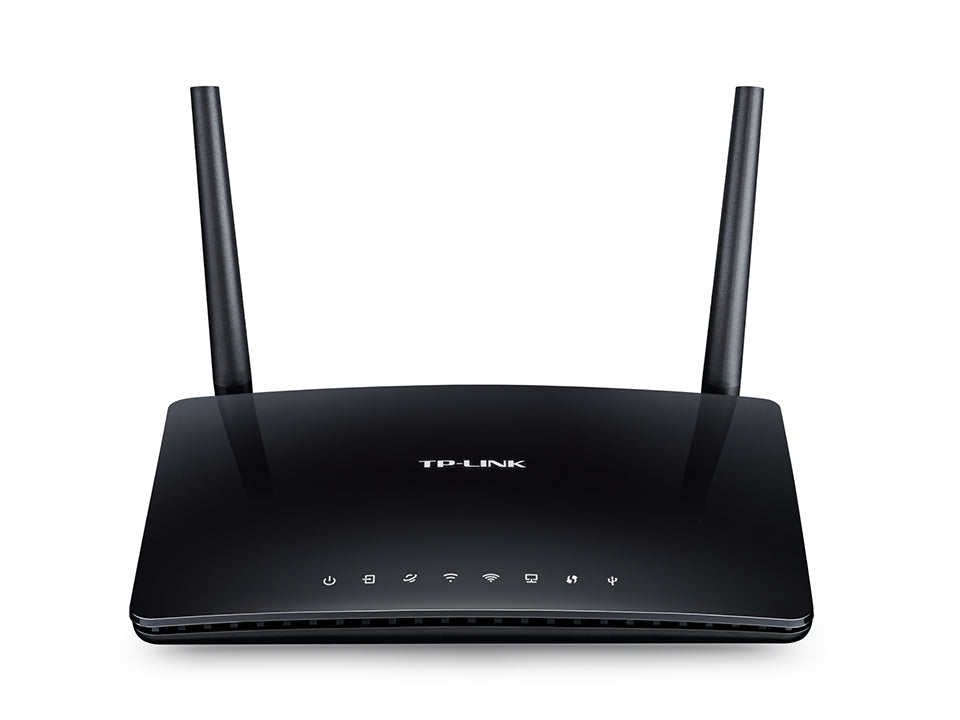

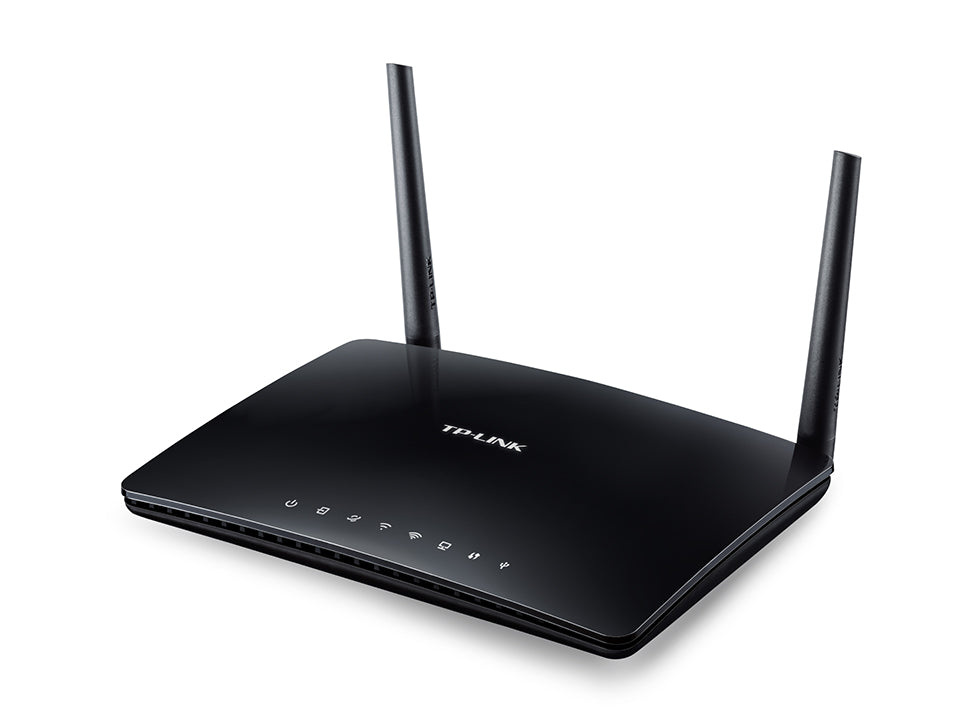

TP-Link Archer D20 AC750 Wireless Dual Band ADSL2+ Modem Router

AC750 Wireless Dual Band ADSL2+ Modem Router

Archer D20

• Supports 802.11ac standard - the next generation of Wi-Fi
• Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections provide a premium wireless experience
• Share a printer locally and files & media with networked devices or remotely via FTP server
• Ethernet WAN (EWAN) port accepts connections from cable and fiber modems via Ethernet cable
• New web UI and Tether APP provide quick & hassle-free installation and easy management

Features

AC750 Wireless Speed

Coming with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speeds in a single stream, Archer D20 delivers a combined wireless data transfer rate of up to 750Mbps with 300Mbps over 2.4GHz and 433Mbps over 5GHz. 802.11ac also brings higher power efficiency and robust security, making Archer D20 a perfect hub for your home or small office network.

Premium Wireless Network Experience

Simultaneous dual band offers the flexibility of two dedicated networks for basic tasks and bandwidth- intensive applications respectively. Two dual band external antennas deliver greater range and perfor-mance.

Easy USB Storage and Sharing

Using the Archer D20’s multi-functional USB 2.0 port, you can share a printer with multiple computers and devices on your network and can share files & media at home or via the FTP server while away from home.

Interchangeable LAN/WAN Port

The Archer D20 supports ADSL and Ethernet WAN connections, providing you with the flexibility you need to get the most from your Internet connection. The ADSL port supports ADSL connections via any standard phone cable and the LAN/WAN port allows the Archer D20 to accept connections from fiber/cable modems using an Ethernet cable.

Guest Network

Guest Network Access pro- vides another secure Wi-Fi access for guests sharing your home or office network

Parental Control

Parental Controls allow parents or administrators to establish restricted access policies for children or staff

IPv6 Supported

The Archer D20 supports IPv6, the next generation of Internet protocol, helping you to future-proof your network

Easy Network Management —TP-LINK Tether

TP-LINK Tether provides the easiest way to access and manage your router with your iOS or Android devices. From setup to parental control, Tether provides a simple, intuitive user interface to see what the status of your router is, who’s online and what their privileges are. More models of the router can be configured with TP-LINK Tether.

Install and Manage More Easily

TP-LINK’s innovative web UI (User Interface) is designed into 3 different modules according to different user demands: Quick Setup, Basic and Advanced. The idea behind this is to ensure that everyone’s home network installation and management experience is both quick & hassle free. This is evident in the fact that the new web UI's basic setup can be completed within an astounding 15 seconds.

Specifications

HARDWARE FEATURES

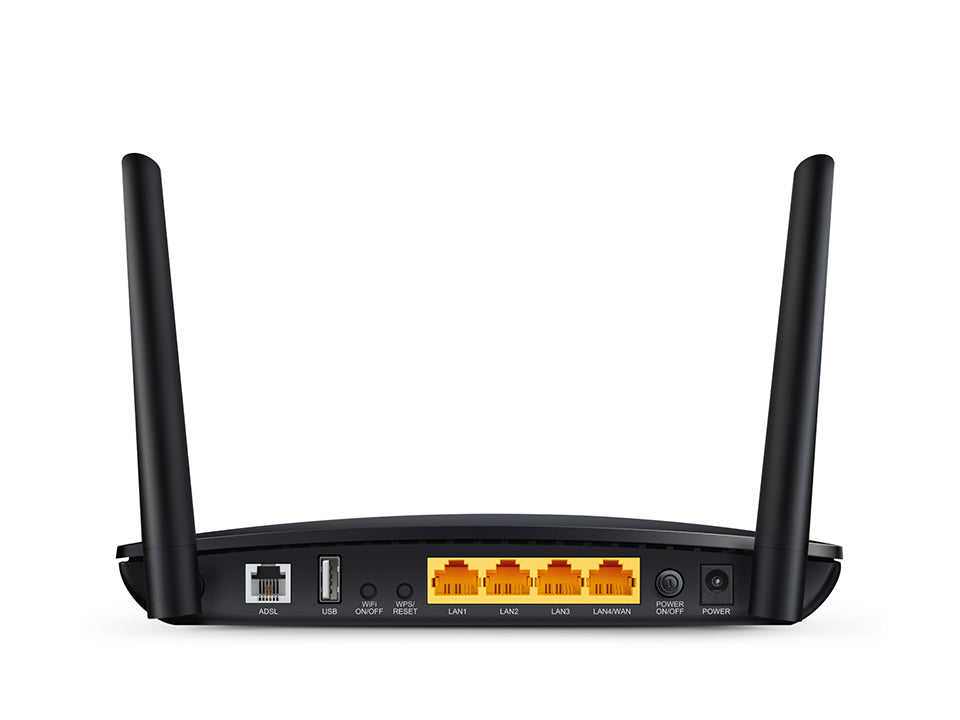

Interfaces

1 10/100Mbps RJ45 WAN/LAN Port
3 10/100Mbps RJ45 LAN Ports
1 RJ11 Port
1 USB 2.0 Port

Button

1 Power On/Off Button
1 Wi-Fi On/Off Button
1 WPS/RESET Button

Dimensions (W X D X H)

8.0 x 5.6 x 1.3 In. (202 x 141 x 33.7mm)

External Power Supply

12VDC/1.5A

IEEE Standards

IEEE 802.3, 802.3u

ADSL Standards

Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1

ADSL2 Standards

ITU-T G.992.3 (G.DMT.bis)

ADSL2+ Standards

ITU-T G.992.5

Antenna Type

2 external fixed antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11b/g/n 2.4GHz
IEEE 802.11a/n/ac 5GHz

Wireless Speeds

2.4GHz: Up to 300Mbps
5GHz: Up to 433Mbps

Frequency

2.4GHz and 5GHz

Transmit Power

<20dBm(EIRP)

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering

Wireless Schedule

Support 2.4GHz and 5GHz Wireless Schedule

SOFTWARE FEATURES

Quality of Service

ATM QoS, Traffic Control(IP QoS)

Security

NAT Firewall, Access Control, MAC / IP / URL Filtering,
Denial of Service (DoS), SYN Flooding, Ping of Death
IP and MAC Address Binding

IPv6

IPv6 and IPv4 dual stack

Operating Modes

ADSL Modem Router, Wireless Router

Management

Web Based Configuration(HTTP), Remote management,
Command Line Interface,
SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools

DHCP

Server, Client, DHCP Client List,
Address Reservation, DHCP relay

Port Forwarding

Virtual server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS

DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec Passthrough

ATM/PPP Protocols

ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
MERIPoE (RFC 1483 Routed)
Bridge (RFC1483 Bridge)
PVC – Up to 8 PVCs

Advanced Functions

Parental Control
Network Address Translation (NAT);
Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS, IGMP V1/V2/V3

USB Sharing

Support Samba(Storage)/FTP Server/Media Server/Printer Server

Guest Network

2.4GHz guest network × 1
5GHz guest network × 1

IPSec VPN

Supports up to 10 IPSec VPN tunnels

OTHERS

System Requirements

Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system

Environment

Operating Temperature:

0?~40? (32?~104?)

Storage Temperature:

-40?~70? (-40?~158?)

Operating Humidity:

10%~90% non-condensing

Storage Humidity:

5%~90% non-condensing
