What This Product Does

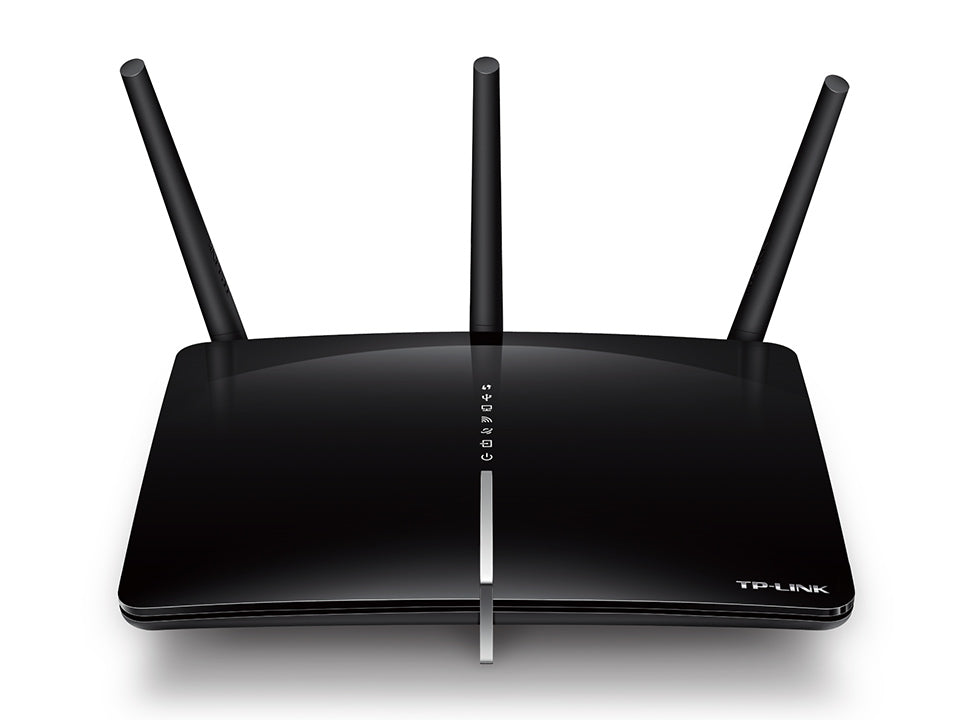

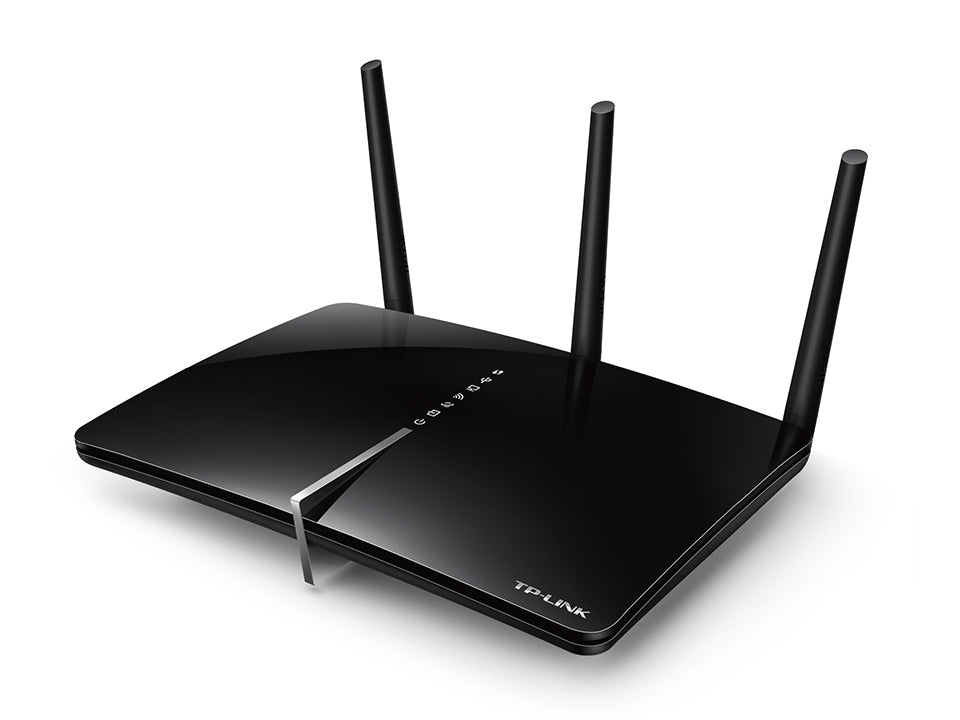

TP-LINK’s Archer D2 AC750 Wireless Dual Band Gigabit ADSL2+ Modem Router is a combined wired/wireless network connection device with integrated wireless router and ADSL modem, reducing hassle of configuration and saving space. Featuring a variety of features and rich functionality, Archer D2 is the perfect hub of your home or business network.
802.11ac - The Next Generation of Wi-Fi
TP-LINK’s Archer D2 comes with the next generation Wi-Fi standard – 802.11ac, backward compatible with 802.11n and 3 times faster than wireless N speeds. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.
750Mbps Concurrent Dual Band - More Bandwidth, Less Interference
With 433Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, Archer D2 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.
Broad Wi-Fi Coverage and Targeted Connection
Featuring three detachable external antennas and high power amplifiers, Archer D2 is able to boost Wi-Fi coverage throughout your home. Advanced Beamforming technology enables Archer D2 to focus WiFi signal to connected devices, delivering a more targeted and highly efficient wireless connection.
Full Gigabit Wired Connections - Ultrafast Data Transfer Speeds
With one Gigabit LAN/WAN port and 3 Gigabit LAN ports, the Archer D2 is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.
Multifunctional USB Port – Easy Storage and Sharing
Using the Archer D2’s multi-functional USB 2.0 port, you can share a printer with multiple computers and devices on your network and can also share files & media at home or via the FTP server while away from home.
Interchangeable LAN/WAN Port - Versatile Connectivity
The Archer D2 supports ADSL or Ethernet WAN connections (EWAN), which allows users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
Easy Setup
Either using the optimized user interface and setup wizardor the CD(included) setup wizard willallow youto get ‘online’ quickly and easily.
Guest Network
Provides secure Wi-Fi access for guests to share your home or small office network.
IPv6 Supported
The next generation of Internet protocol, helping you to future-proof your network.
Specificaitons
HARDWARE FEATURES | |
---|---|

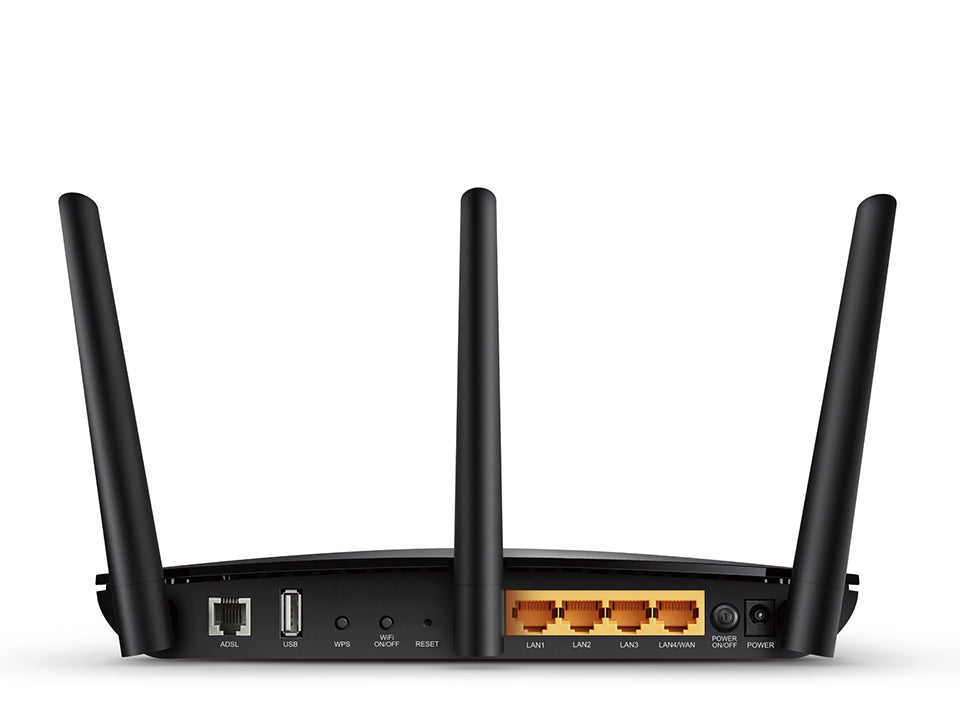

Interface | 1 10/100/1000Mbps RJ45 WAN/LAN Port 3 10/100/1000Mbps RJ45 LAN Ports 1 RJ11 Port 1 USB 2.0 Port |
Button | 1 Power On/Off Button 1 Wi-Fi On/Off Button 1 WPS Button 1 RESET Button |
External Power Supply | 12VDC/1.5A |
IEEE Standards | IEEE 802.3, 802.3u, 802.3ab |
ADSL Standards | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 9.0 x 6.3 x 1.5 in. (229 x 160 x 37mm) |
Antenna Type | Three detachable external dual band antennas |
Antenna Gain | 3 × 2dBi for 2.4GHz and 3 × 3dBi for 5GHz |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11ac/n/a 5GHz IEEE 802.11n/g/b 2.4GHz |
Wireless Speeds | 5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps |
Frequency | 2.4GHz and 5GHz |
Transmit Power | <20dBm(EIRP) |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering |
Wireless Schedule | Support 2.4GHz and 5GHz Wireless Schedule |
SOFTWARE FEATURES | |
---|---|
Operating Modes | ADSL Modem Router, Wireless Router |
DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP relay |
Quality of Service | ATM QoS, Bandwidth Control |
Port Forwarding | Virtual server, Port Triggering, DMZ, ALG, UPnP |
Dynamic DNS | DynDns, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec Passthrough |
ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed) Bridge (RFC1483 Bridge) PVC – Up to 8 PVCs |
Security | NAT Firewall, Access Control, MAC / IP / URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death IP and MAC Address Binding |
Advanced Functions | Parental Control Network Address Translation (NAT); Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3 |
USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
Management | Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
Guest Network | 2.4GHz guest network × 1 5GHz guest network × 1 |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
IPv6 | IPv6 and IPv4 dual stack |
OTHERS | |
---|---|
Certification | CE, FCC, RCM, RoHS |

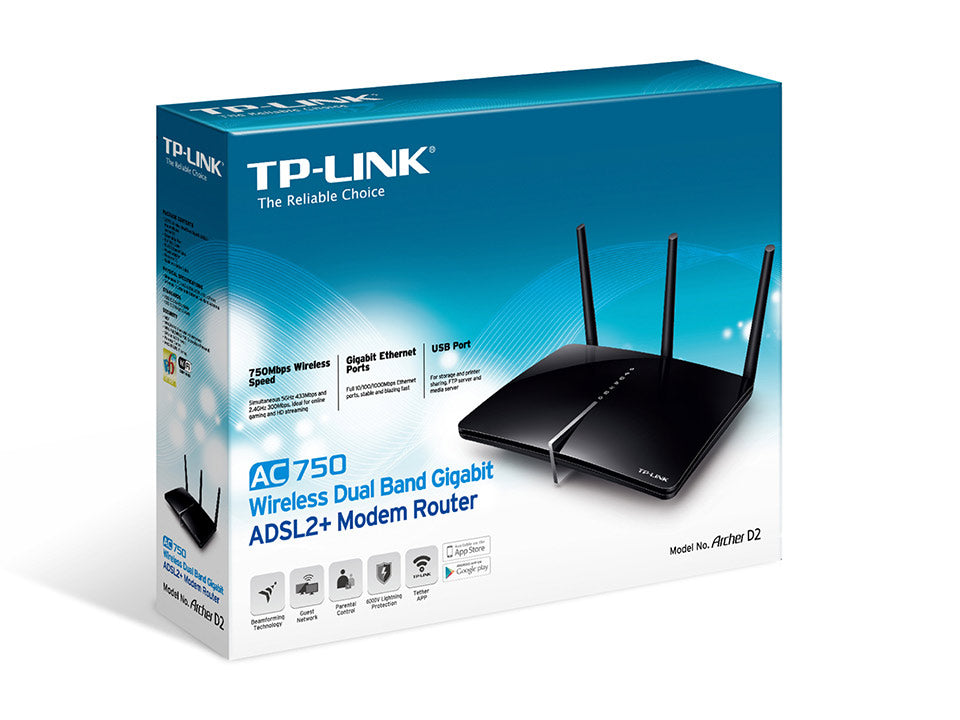

Package Contents | AC750 Wireless Dual Band Gigabit ADSL2+ Modem Router External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter |
System Requirements | Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty
18 months local warranty
Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.
Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
