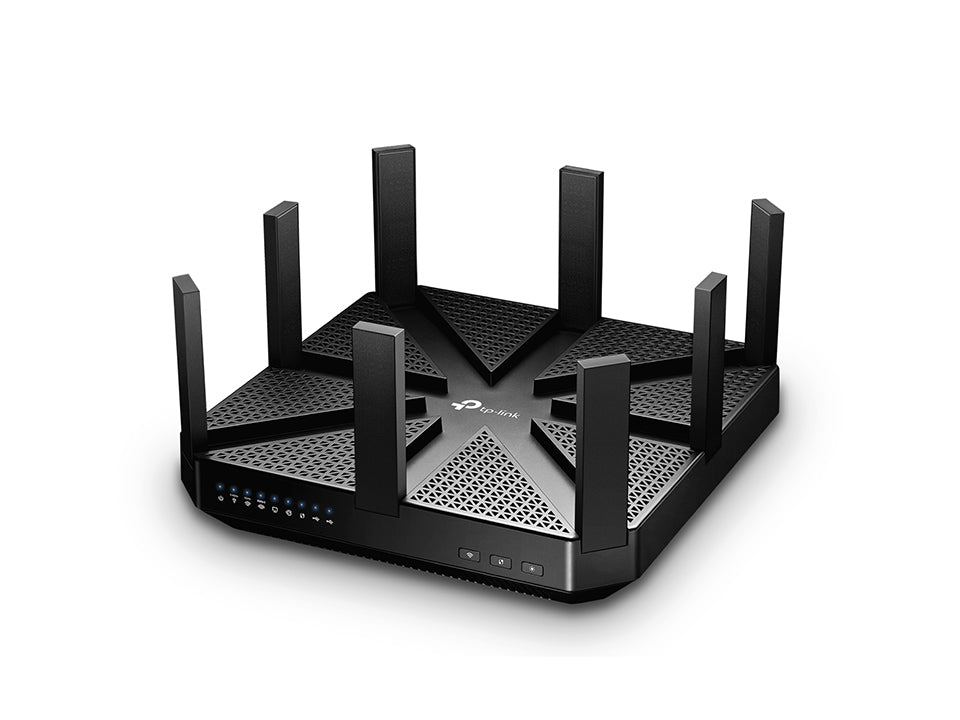

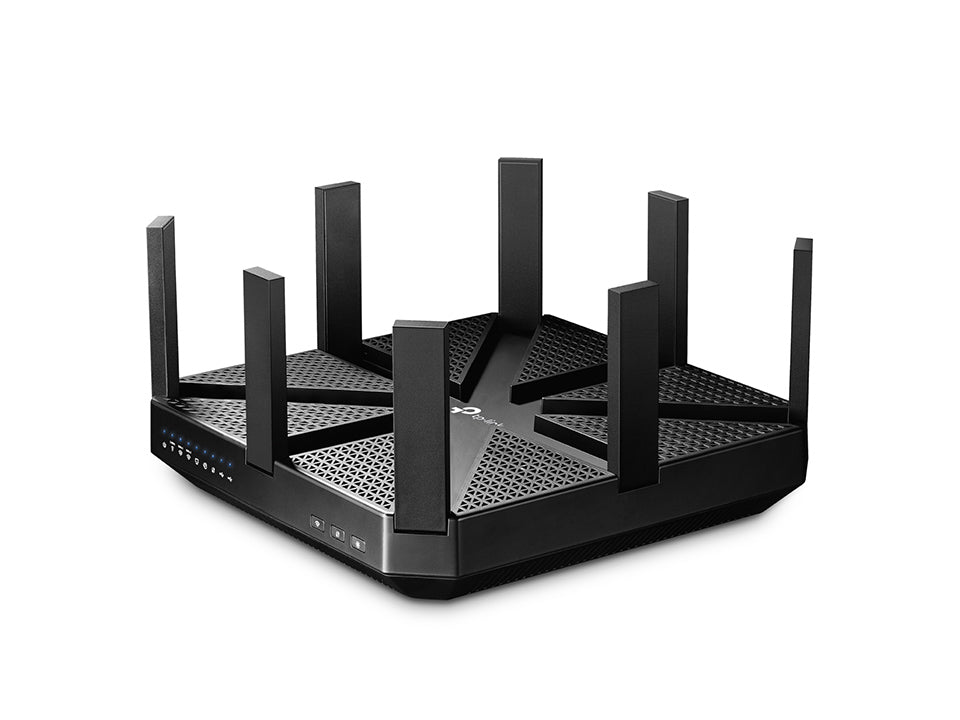

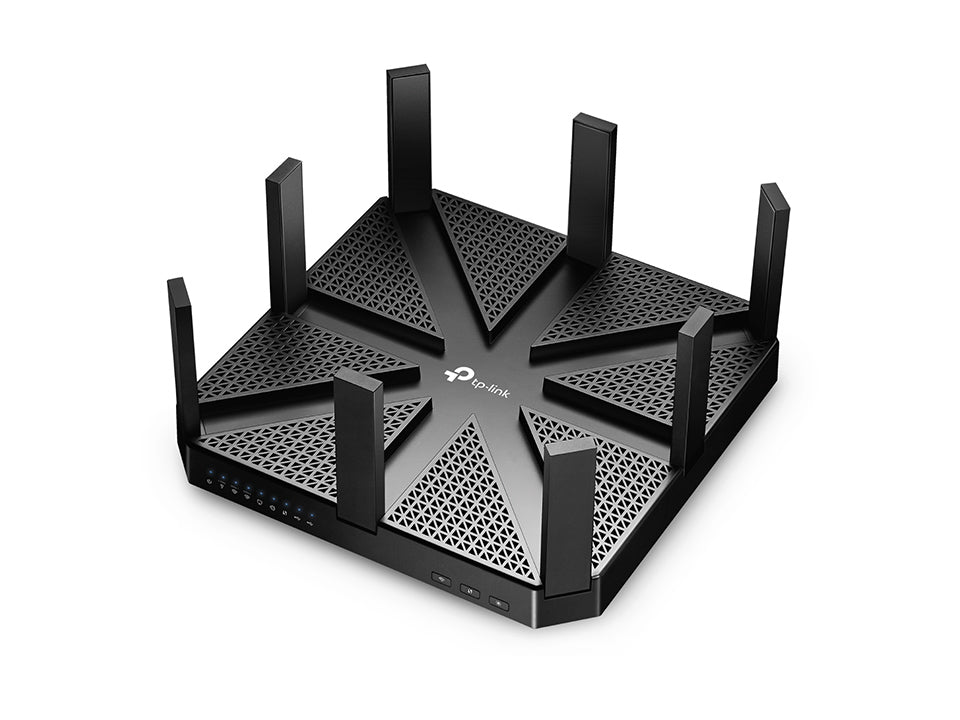

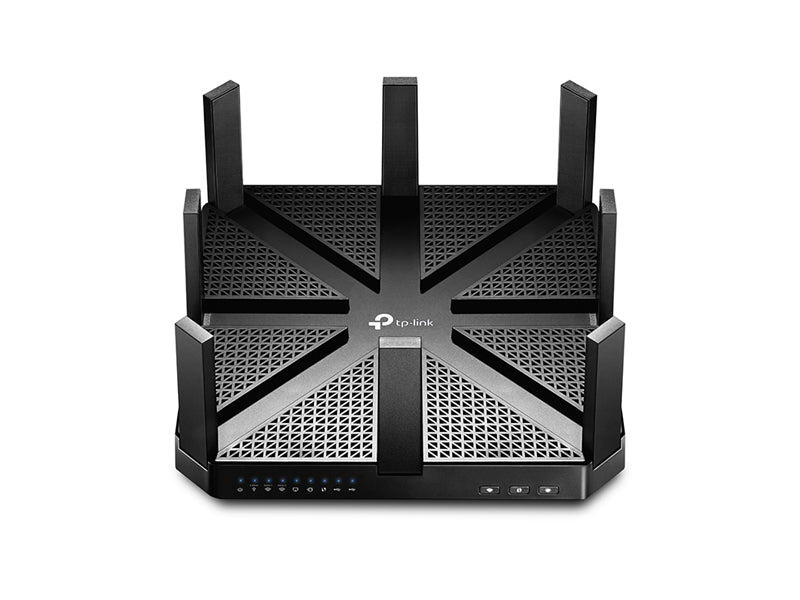

TP-Link Archer C5400 AC5400 Wireless Tri-Band MU-MIMO Gigabit Router

AC5400 Wireless Tri-Band MU-MIMO
Gigabit Router
Archer C5400

• Boost Your Wi-Fi - Advanced NitroQAMTM (1024-QAM) and 4-Stream technology increase maximum Wi-Fi speeds on all bands by 25%, achieving combined Wi-Fi speeds of up to 5334Mbps
• More Bands, More Devices - Tri-Band Wi-Fi offers three distinct wireless bands for more devices
• Multiple Reliable Connections - MU-MIMO allows the router to achieve 4X efficiency by communicating with up to four devices at once
• Smoother Performance - Smart Connect automatically assigns each device to the best available band to achieve optimal performance
• Powerful Processing - Ultra-Fast 1.4GHz Dual-Core CPU and 3 co-processors provide fast and stable overall performance
• Maximized Range - 8 External Antennas maximize the Wi-Fi coverage and enhance the wireless connections

Faster Speed for More Devices

Archer C5400 delivers combined Tri-Band Wi-Fi speeds to 5334Mbps, letting you dedicate an entire band to gaming without slowing down your network.

Smart Connect helps devices run even faster by assigning them to the best available channel to balance network demand.

2.4GHz
1000Mbps

Shopping online, streaming music, and browsing on laptops, tablets, and smartphones

5GHz-1 & 5GHz-2
2167Mbps each

Gaming online and watching 4K video on consoles, performance PCs, and smart TVs

NitroQAMTM and 4-Stream
Support Maximum Wi-Fi Speed

The Archer C5400 gets a performance boosts of up to 25%, thanks to NitroQAM™ (1024-QAM) and 4-Stream. These advanced technologies allow the router’s 2.4GHz band and both of its 5GHz bands to provide industry-leading speeds of up to 1000Mbps and 2167Mbps, respectively. With NitroQAM and 4-Stream, you can game at the highest settings without lagging.

MU-MIMO for Non-Stop Entertainment on All Your Devices


UP to faster

The Archer C5400 does more than just create faster Wi-Fi, it helps your devices achieve optimal performance by making communication more efficient. With MU-MIMO technology1, the Archer C5400 can provide four simultaneous data streams, allowing all connected devices to achieve speeds up to 4X faster than standard AC routers

Innovative Technology Empowers Home Entertainment

The router serves as a powerful entertainment hub for your home that is capable of supporting multiple simultaneous HD video streams, online gaming, and other online activities without slowing down. Superior range and coverage keeps your devices connected, near or far.

Maximized Range and Efficiency

Eight antennas with Beamforming technology detect the locations of your connected devices and concentrate wireless signal strength toward them. This makes all of your connections more efficient and stable, improving network performance, even in medium-sized offices and public cafes.

Lightning-Fast Wired Connections

Large File Sharing
External hard drives can connect directly to the Archer C5400 via its USB 3.0 and 2.0 ports, making it easy to share large files, photos, music and video across your network.

Smooth Gaming and Streaming
To help your wired devices achieve peak performance for smooth gaming and streaming, the four Gigabit Ethernet ports operate 10x faster than standard Ethernet.

Easy Setup and Use

Set up the Archer C5400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether lets you manage network settings, including parental controls and media sharing preferences, from any Android or iOS device.

Guest Network
Keep your main network secure by creating a separate network for guests and visitors

Parental Controls
Manage when and how connected devices can access the Internet

VPN
Server
Setup a secure connection between your private networks to the Internet

Advanced Security
Defend against security threats with advanced encryption

Specifications

HARDWARE FEATURES

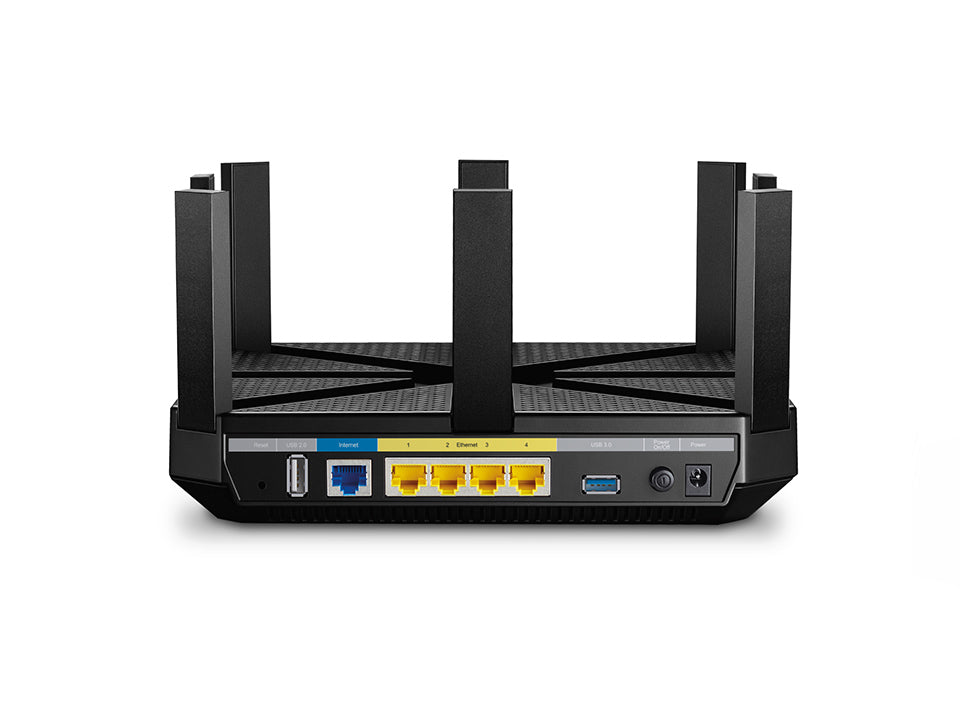

Interface

4 10/100/1000Mbps LAN Ports,
1 10/100/1000Mbps WAN Port
1 USB 3.0 Port + 1 USB 2.0 Port

Button

Wireless On/Off Button
Power On/off Button
LED On/off Button
WPS Button
Reset Button

Antenna 8 high-performance antennas

External Power Supply 12V/5A

Dimensions ( W x D x H ) 9.1 X 9.1 X 1.7 in. (230 X 230 X 43mm)

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz

Frequency 2.4GHz and 5GHz

Signal Rate

5GHz Band1: Up to 2167Mbps
5GHz Band2: Up to 2167Mbps
2.4GHz: Up to 1000Mbps

Reception Sensitivity

5GHz:
11a 6Mbps: -94dBm
11a 54Mbps: -76dBm
11ac HT20 (MCS8): -68dBm 11ac HT20 (MCS11): -61dBm
11ac HT40 (MCS9): -64dBm, 11ac HT40 (MCS11): -57dBm
11ac HT80: -60dBm

2.4GHz:
11g 54M: -77dBm
11n HT20 (MCS8): -73dBm, 11ac HT20 (MCS11): -63dBm
11ac HT40 (MCS9): -67dBm, 11ac HT40 (MCS11): -62dBm

Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics

Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption

Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz to 5.35GHz)
<23dBm(5.47GHz to 5.725GHz)

FCC:
<30dBm

Guest Network

2.4GHz guest network × 1
5GHz guest network × 2

SOFTWARE FEATURES

Quality of Service WMM, Bandwidth Control

WAN Type

Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)

Management

Access Control
Local Management
Remote Management

DHCP

Server, Client, DHCP Client List,
Address Reservation

Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS DynDns, NO-IP

Access Control

Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management

Protocols Supports IPv4 and IPv6

USB Sharing

Support Samba(Storage)/FTP Server/Media Server/ Printer Server

OTHERS

Certification CE, FCC, RoHS

Package Contents

AC5400 Wireless Tri-Band MU-MIMO Gigabit Router
Archer C5400
Power supply unit
Ethernet Cable
Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC OS, NetWare, UNIX or Linux

Environment Operating Temperature: 0?~40 ? (32 ?~104?)

Storage Temperature: -40?~70 ? (-40 ?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
