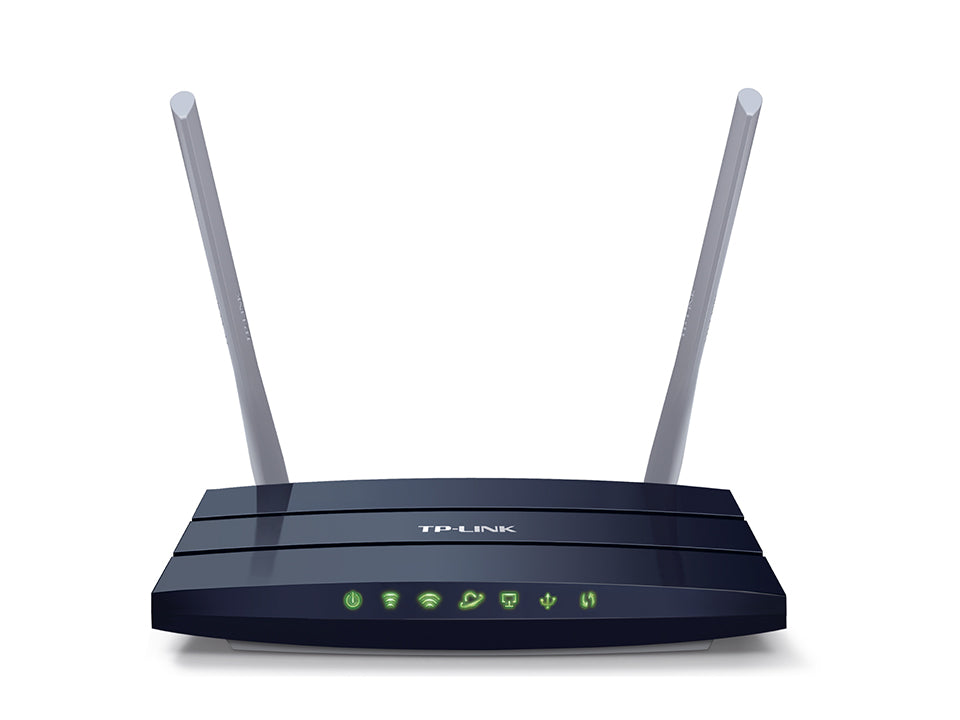

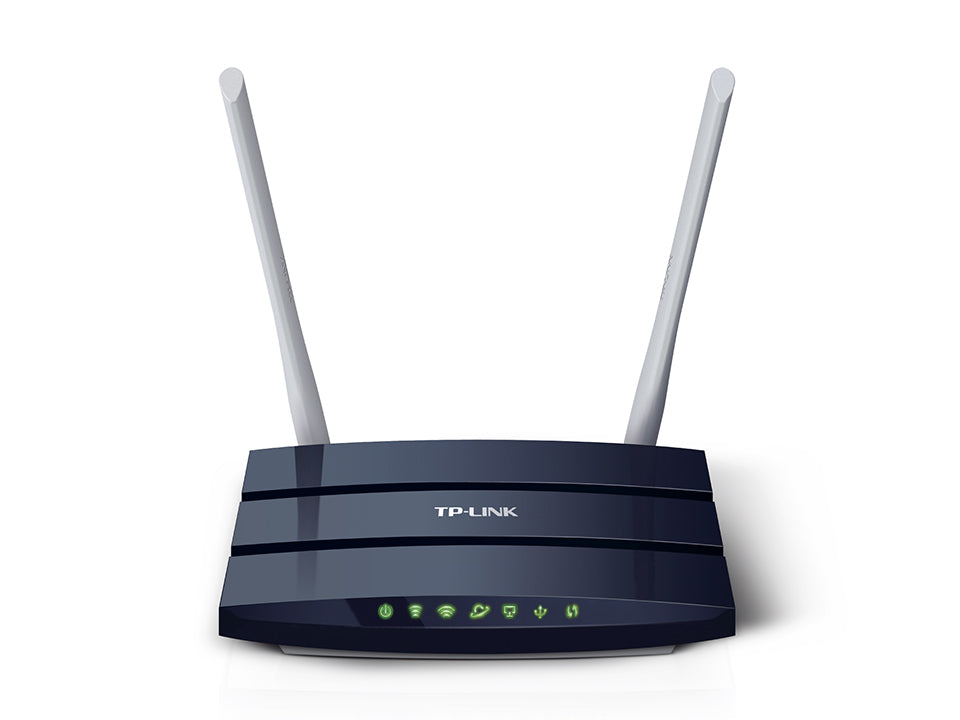

TP-Link Archer C50 AC1200 Wireless Dual Band Router

• Supports 802.11ac standard - the next generation of Wi-Fi
• Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1.2Gbps of total available bandwidth
• 2 dual band external antennas provide stable wireless connections and optimal coverage
• USB Port - easily share a printer locally and files & media with networked devices or remotely via FTP server
• Easy network management at your fingertips with TP-LINK Tether

TP-LINK’s Archer C50 comes with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speeds and delivering a combined wireless data transfer rate of up to 1.2Gbps. With 300Mbps over the 2.4GHz band and 867Mbps wireless speeds over the crystal clear 5GHz band, the Archer C50 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

The Archer C50 operates over both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simultaneous Dual Band offers you the flexibility of two dedicated networks – with multiple times the bandwidth for your needs. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.

With 2 external antennas combined with high quality antenna technology, you can maintain high speeds across greater distances. This provides you with optimal wireless coverage and reliability from anywhere in your large home or office.

With USB 2.0 port, you can share a printer locally and files & media with networked devices or remotely via FTP server.

Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network.

Parental Control allows parents or administrators to establish restricted access policies for children or staff.

Archer C50 supports IPv6, the next generation of Internet protocol, helping you to future proof your network.

TP-LINK Tether provides the easiest way to access and manage your router with your iOS and Android devices.

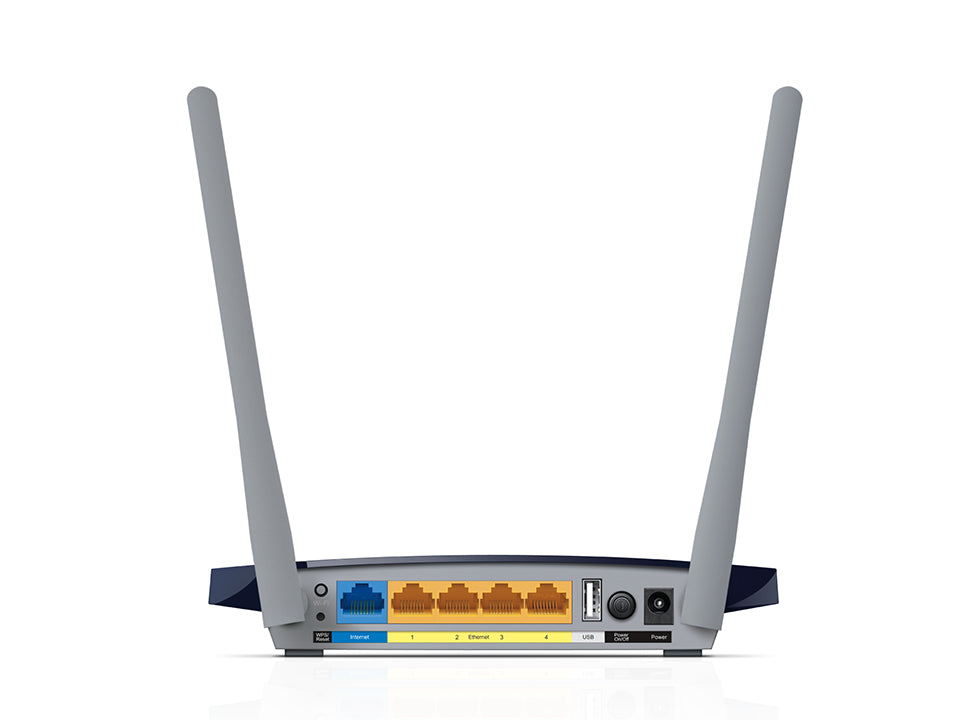

4 10/100Mbps LAN Ports

1 10/100Mbps WAN Port

USB 2.0 Port

WPS/Reset Button

Wireless On/Off Button

Power On/Off Button

7.2 x 4.9 x 1.3 in. (182.95 x 123.5 x 32.1 mm)

2 Dual Band External Antennas

12VDC / 1.5A

Capacitive

4.3 inch

128 ppi

IEEE 802.11n/g/b 2.4GHz

IEEE 802.11ac/n/a 5GHz

2.4GHz and 5GHz Band

Up to 300Mbps

Up to 867Mbps

-76dBm

-70dBm

-65.5dBm

-61.5dBm

-76dBm

-74dBm

-71dBm

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

<20dBm(2.4GHz)

<23dBm(5GHz)

<30dBm

2.4GHz guest network × 1

5GHz guest network × 1

WMM, Bandwidth Control

Dynamic IP/Static IP/PPPoE/

BigPond/ /L2TP(Dual Access) /PPTP(Dual Access)

Access Control

Local Management

Remote Management

Server, Client, DHCP Client List,

Address Reservation

Virtual Server, Port Triggering, UPnP, DMZ

DynDns, Comexe, NO-IP

PPTP, L2TP, IPSec

Parental Control, Local Management Control, Host List, Access

Schedule, Rule Management

DoS, SPI Firewall

IP Address Filter/MAC Address Filter/Domain Filter

IP and MAC Address Binding

Supports IPv4 and IPv6

Support Samba(Storage)/FTP Server/Media Server/Printer Server

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10

MAC OS, NetWare, UNIX or Linux

0?~40 ? (32 ?~104?)

-40?~70 ? (-40 ?~158?)

10%~90% non-condensing

5%~90% non-condensing
