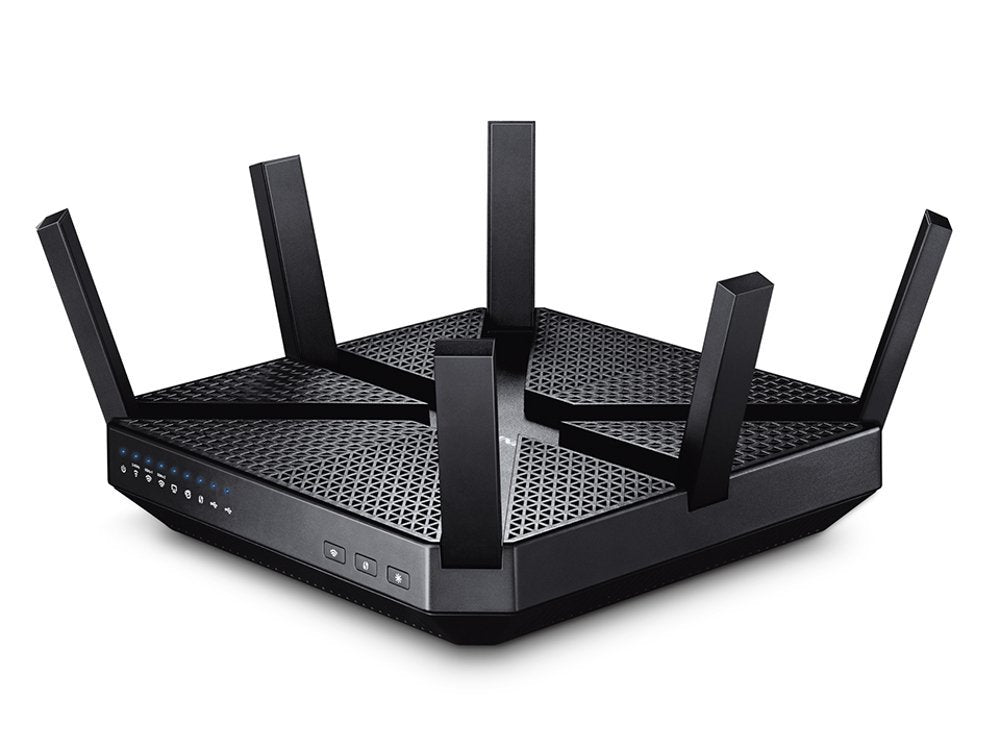

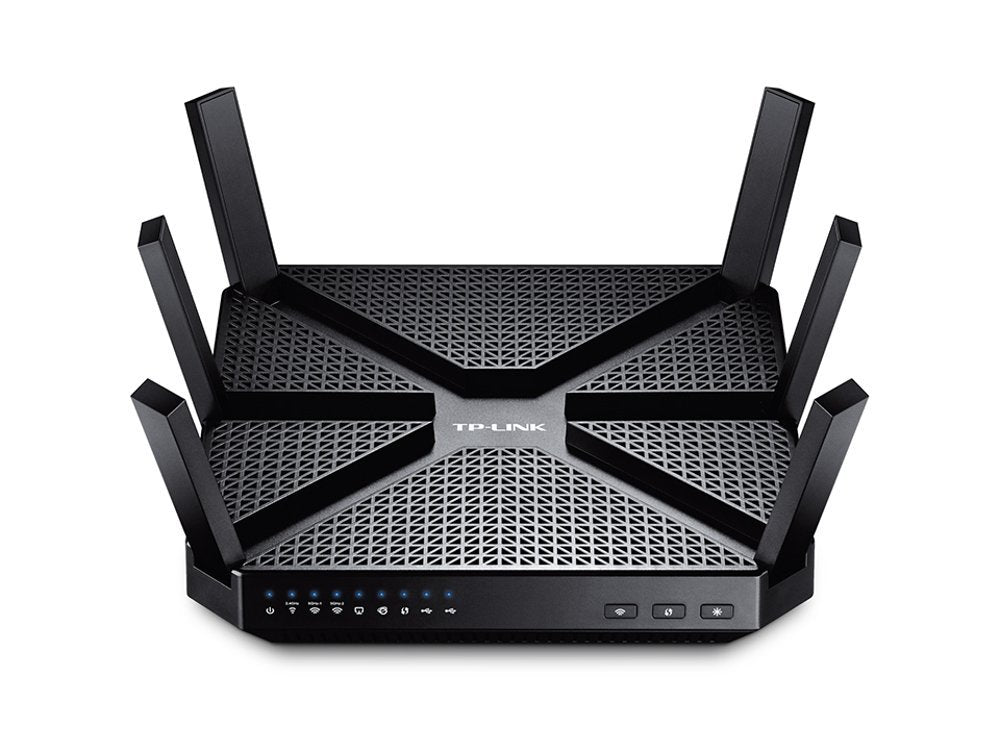

TP-Link Archer C3200 Wireless Tri-Band Gigabit Router

• Tri-Band technology creates three separate Wi-Fi bands for connecting more devices to your network without a drop in performance
• Combined 3200Mbps Wi-Fi speed over one 2.4GHz (600Mbps) and two 5GHz (1300Mbps each) bands
• Smart Connect helps devices run faster by assigning them to the best available channel to balance network demand
• Six high-performance antennas maximize coverage area and stability
• 1GHz dual-core CPU and three co-processors handle simultaneous connections without interruption

The Archer C3200 uses Tri-Band technology to run three separate Wi-Fi channels at once, creating a network that can connect to more devices without a trade-off in performance.

600Mbps

Shopping online, streaming music, and browsing on laptops,tablets, and smartphones

1300Mbps each

Gaming online and watching 4K video on consoles, performance PCs, and smart TVs

With the fastest combined Wi-Fi speed of up to 3200Mbps, the Archer C3200 lets you simultaneously game online and stream video in 4K Ultra HD across multiple devices without lag.

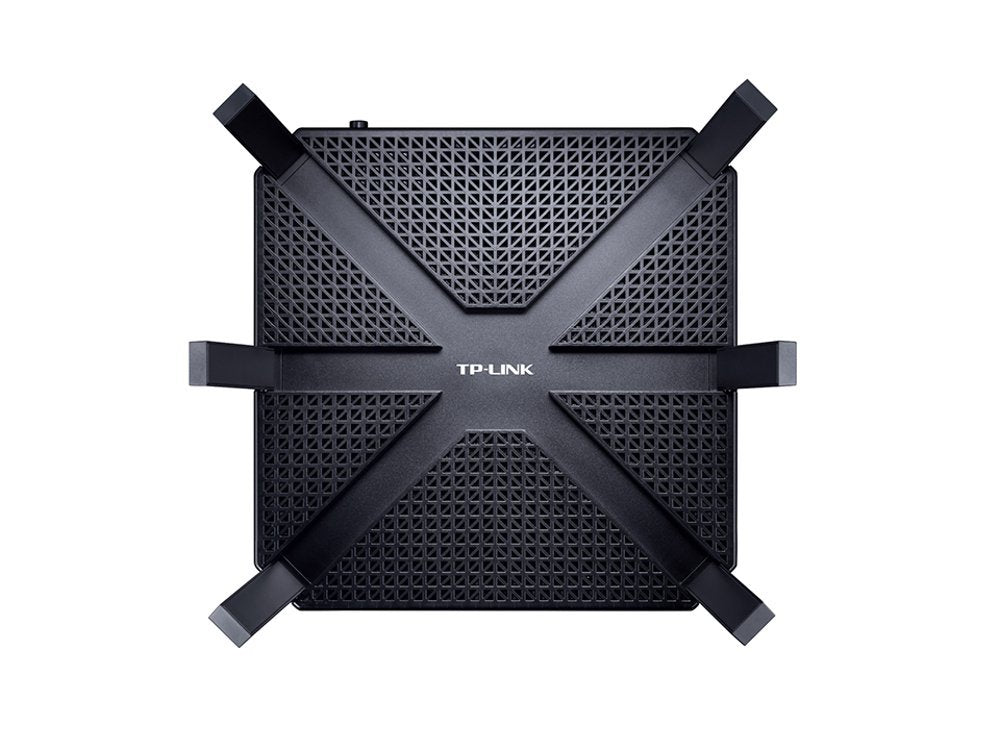

Six high-performance external antennas greatly increase the Archer C3200’s range and signal stability. Beamforming technology further improves the router’s coverage by helping it locate wireless devices to form stronger, more reliable connections.

A powerful 1GHz dual-core CPU and three co-processors easily handle the demand made on the Archer C3200’s network when multiple users are browsing, streaming, and gaming all at the same time.

External hard drives can connect directly to the Archer C3200 via its USB 3.0 and 2.0 ports, making it easy to share files, photos, music, and video across your network.

The Archer C3200 is also equipped with four Gigabit Ethernet ports that enable blazing wired speeds 10x greater than Fast Ethernet, helping connected gaming consoles, PCs, and smart TVs achieve their best performance.

Set up the Archer C3200 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and media sharing.

Provides visitors width Wi-Fi access separate from your main network

Manage when and how connected devices can access the Internet

WPA/WPA2 encryption creates an active defense against security

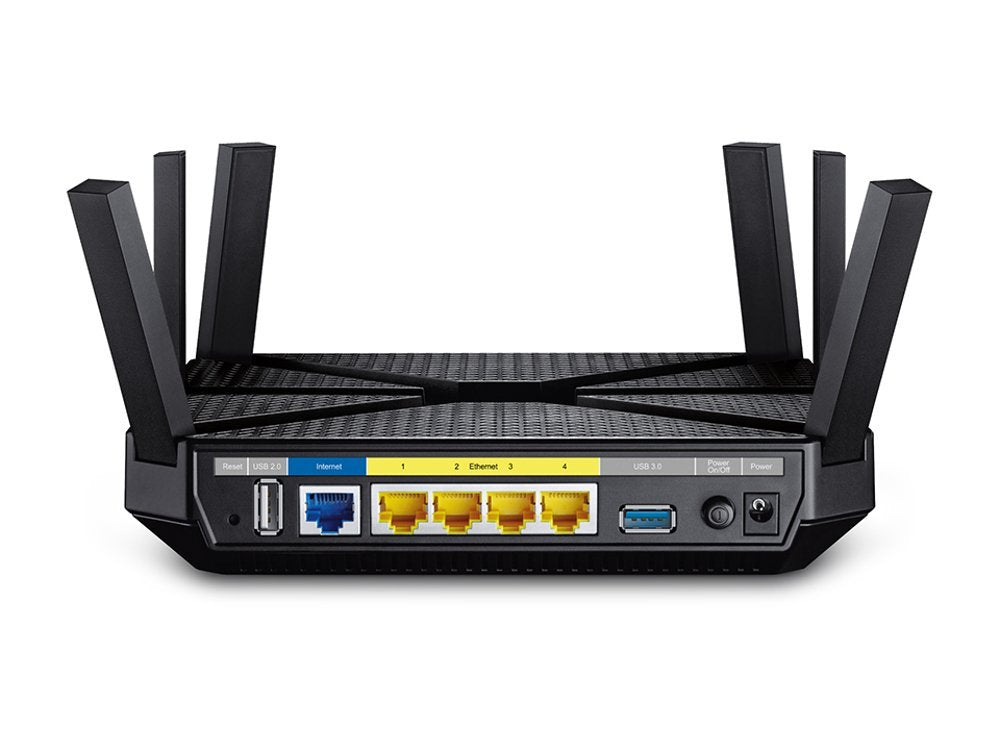

4 10/100/1000Mbps LAN Ports,

1 10/100/1000Mbps WAN Port

1 USB 3.0 Port + 1 USB 2.0 Port

Wireless On/Off Button

Power On/off Button

LED On/off Button

WPS Button

Reset Button

7.9 X 7.9 X 1.5 in. (200 X 200 X 39mm)

3 dual band Fixed antennas & 3 single band Fixed antennas

12V/5A

IEEE 802.11ac/n/a 5GHz

IEEE 802.11b/g/n 2.4GHz

Up to 1300Mbps

Up to 1300Mbps

Up to 600Mbps

-94dBm

-76dBm

-68dBm

-64dBm

-60dBm

-77dBm

-73dBm

-71dBm

Enable/Disable Wireless Radio, WMM, Wireless Statistics

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption

<20dBm(2.4GHz)

<23dBm(5GHz)

<30dBm

2.4GHz guest network × 1

5GHz guest network × 2

WMM, Bandwidth Control

Dynamic IP/Static IP/PPPoE/

PPTP(Dual Access)/L2TP(Dual Access)

Access Control

Local Management

Remote Management

Server, Client, DHCP Client List, Address Reservation

Virtual Server, Port Triggering, UPnP, DMZ

DynDns, NO-IP

PPTP, L2TP, IPSec

Parental Control, Local Management Control, Host List, Access

Schedule, Rule Management

Support Samba(Storage)/FTP Server/Media Server/Printer Server

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10

MAC OS, NetWare, UNIX or Linux

0℃~40 ℃ (32 ℉~104℉)

-40℃~70 ℃ (-40 ℉~158℉)

10%~90% non-condensing

5%~90% non-condensing
