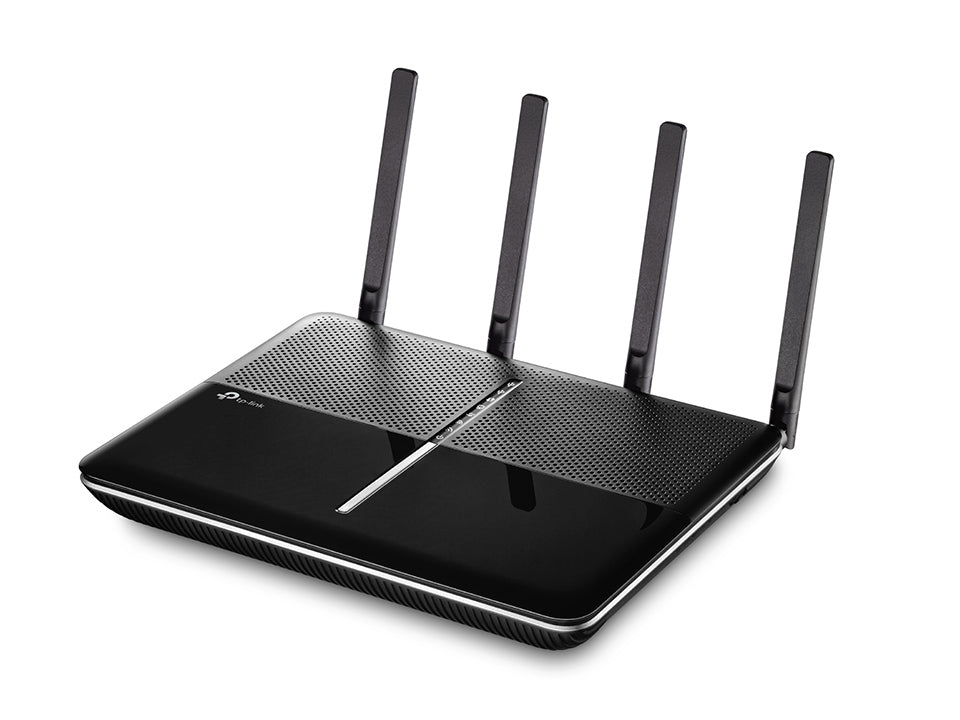

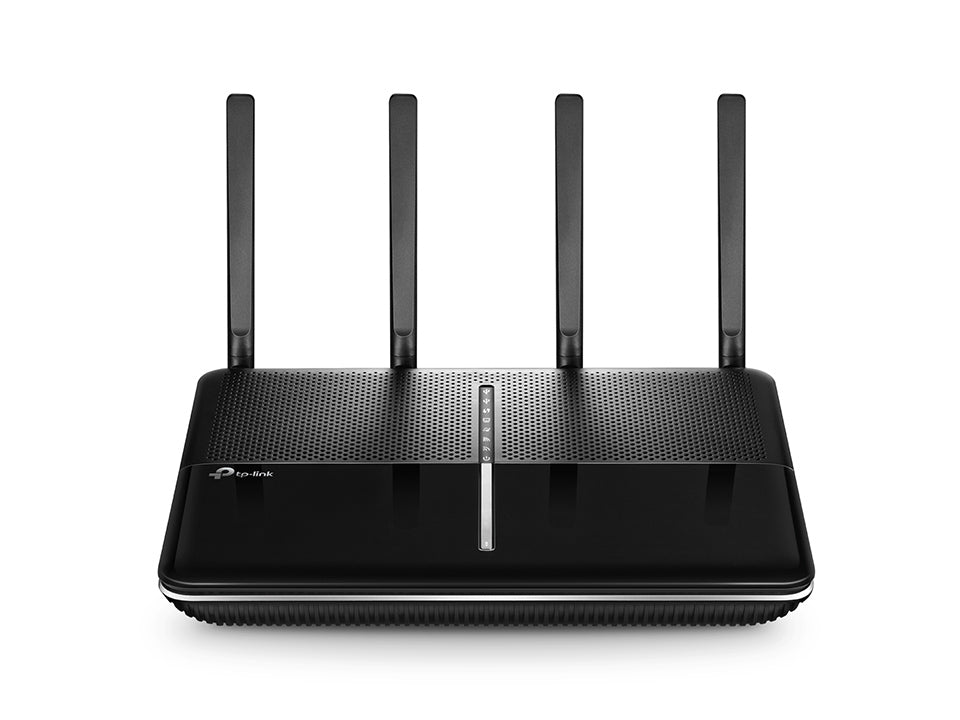

TP-link Archer C3150 AC3150 Wireless MU-MIMO Gigabit Router

• Boost Your Wi-Fi — The Archer C3150 runs at combined speeds of up to 3150Mbps across its 2.4GHz and 5GHz bands
• Larger Data Streams — Broadcom® NitroQAM™(1024-QAM) technology with 4-Stream lets the Archer C3150 transmit 25% more data
• Multiple Reliable Connections — MU-MIMO Ready technology lets the router run several devices at the same time to achieve speeds up to 4X faster than standard AC routers.*
• Smoother Performance — Smart Connect technology assigns each of your devices to the best available Wi-Fi band
• Powerful Processing — A 1.4GHz dual-core processor ensures simultaneous browsing, streaming, and gaming without delay

With combined speeds of up to 3150Mbps, the Archer C3150 easily handles demanding activities at the same time. The router uses the latest innovations in Wi-Fi technology to create a faster, stronger, more reliable wireless network for your home. With the Archer C3150, lag, dropped connections, and dead zones will become a thing of the past.

3167Mbps

The Archer C3150 boasts a powerful combination of advanced Broadcom® NitroQAM™ technology and 4-Stream technology, which boosts wireless speeds up by 25%. This provides the speed and elite performance that you need to support your most demanding online applications, including simultaneous 4K streaming and online gaming.

Archer C3150 can support many devices when you invite friends to your large house to entertain. It can maintain multiple simultaneous HD streaming, online gaming and other content consumption without lag. The Archer C3150 can provide a maximized coverage and enable your devices to stay covered, near or far as it. Don’t let your mobile lifestyle stop the streaming and enjoy your home party.

Unlike normal routers, which usually have single core processors, the Archer C3150 features a powerful 1.4GHz dual core processor.

This unlocks the full potential of MU-MIMO and 4-Stream technologies, helping your dual band router maximize its performance potential.

Four high-performance dual band antennas and high-powered amplifiers help create a strong, far-reaching network for your home. Beamforming technology focuses the Wi-Fi transmission in the direction of your connected devices, concentrating the signal where you need it the most. This allows you to enjoy fast, stable Wi-Fi in every part of your home, as well as on the patio, by the pool, and even in the yard.

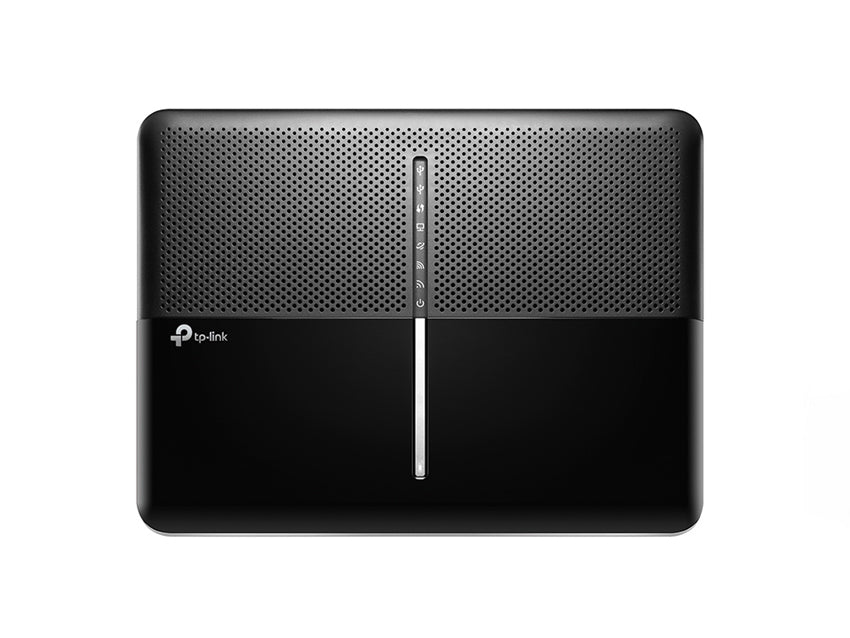

An elegant, minimalist design allows the Archer C3150 to be integrated seamlessly into the decor of any room. The LED indicators can be switched off to prevent distraction at night when placed in bedrooms or common spaces.

You can quickly and easily share photos, music, and other files with family and friends. Just connect an external hard drive to the Archer C3150’s USB 3.0 port or USB 2.0 port and immediately start enjoying lightning-fast transfers. To help your wired devices reach peak performance for smooth gaming and streaming, you can also create fast, stable wired connections using the four Gigabit Ethernet ports, which transfer data at speeds up to 10x higher than standard Ethernet ports.

Whether you prefer the powerful Tether App or the intuitive web interface, you can set up your Archer C3150 in minutes. The Tether App allows you to manage network settings, including parental controls and media sharing preferences, from any Android or iOS device.

Provide a separate Wi-Fi network for visitors and guests

Manage when and how connected devices can access the Internet

Setup a secure connection between your private networks to the Internet

Utilize WPA/WPA2 encryption for active defense against security threats

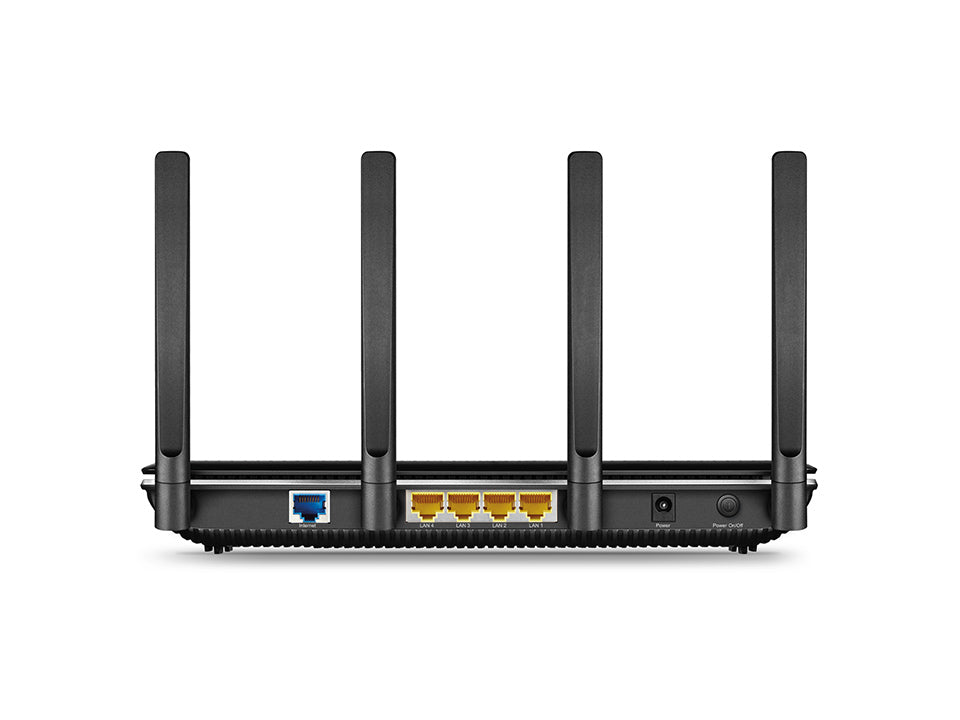

4 10/100/1000Mbps LAN Ports,

1 10/100/1000Mbps WAN Port

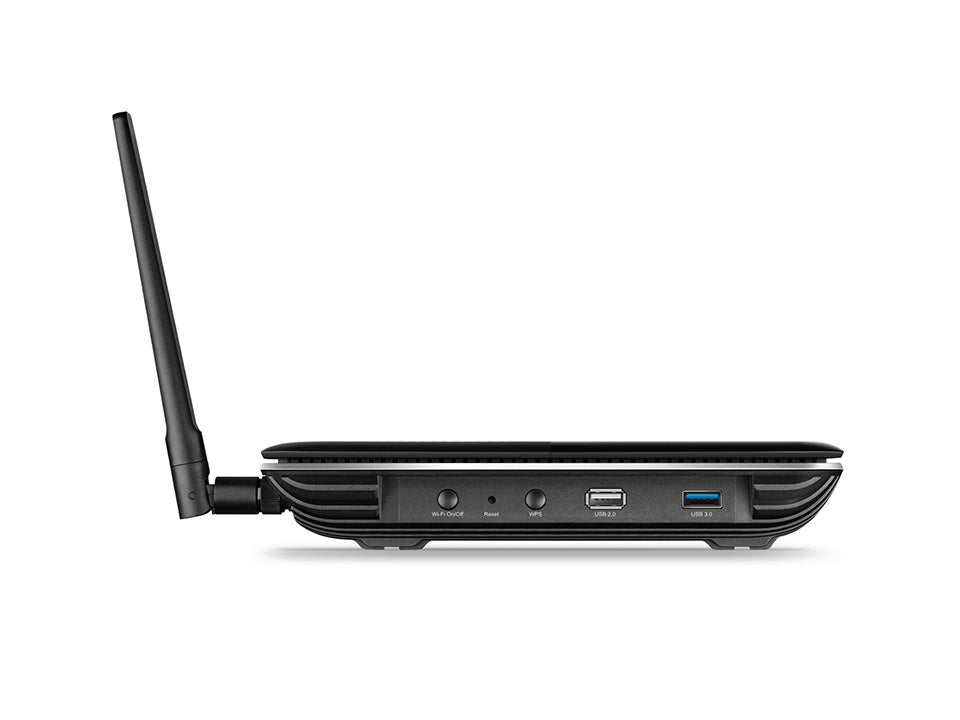

1 USB 3.0 Port + 1 USB 2.0 Port

WPS Button, Reset Button, Wireless On/Off Button,

LED On/Off Button, Power On/Off Button

4 Detachable Antennas

12V/5A

10.4×7.8×1.5 in. (263.8×197.8×37.3mm)

IEEE 802.11ac/n/a 5GHz

IEEE 802.11b/g/n 2.4GHz

2.4GHz and 5GHz

2167Mbps at 5GHz, 1000Mbps at 2.4GHz

5GHz: 11a 6Mbps: -91dBm

11a 54Mbps: -72dBm

11n HT20: -70dBm

11n HT40: -69dBm

11ac HT20: -60dBm

11ac HT40: -61dBm

11ac HT80: -56dBm

2.4GHz: 11g 54Mbps: -73dBm

11n HT20: -72dBm

11n HT40: -69dBm

Enable/Disable Wireless Radio, WMM,

Wireless Statistics

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2

encryptions

FCC: <30dBm

2.4GHz guest network x 1, 5GHz guest network x 1

WMM, Bandwidth Control

Dynamic IP/Static IP/PPPoE/

PPTP(Dual Access)/L2TP(Dual Access) /Bigpond

Access Control, Local Management, Remote Management

Server, Client, DHCP Client List, Address Reservation

Virtual Server, Port Triggering, UPnP, DMZ

DynDns, NO-IP

-Through PPTP, L2TP, IPSec

Parental Control, Local Management Control,

Host list, Access Schedule, Rule Management

Supports IPv4 and IPv6

Support Samba(Storage)/FTP Server/Media Server/

Printer Server

Supports up to 10 IPSec VPN tunnels

PPTP, OpenVPN

FCC, RoHS

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Cable or DSL Modem

Subscription with an Internet Service Provider (for Internet access)

0℃~40℃ (32℉ ~104℉)

-40℃~70℃ (-40℉ ~158℉)

10%~90% non-condensing

5%~90% non-condensing
