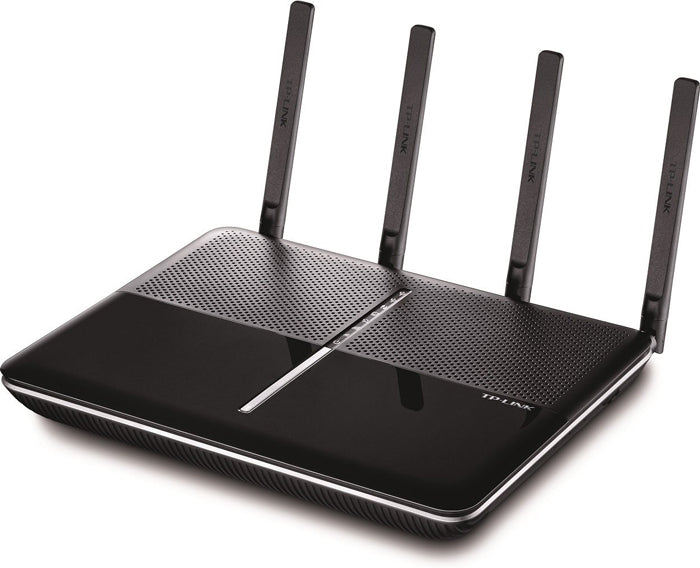

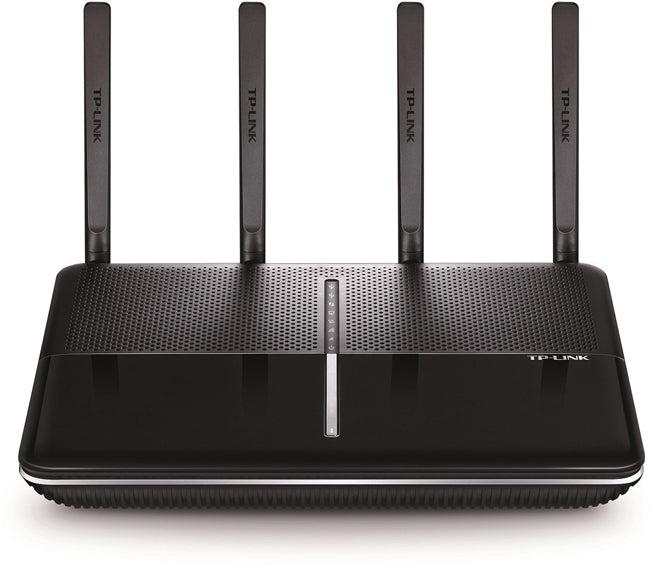

TP-Link Archer C2600 Wireless Dual Band Gigabit Router

AC2600 Wireless Dual Band Gigabit Router

Archer C2600

• 4-Stream for the Fastest Wi-Fi Speeds – The Archer C2600 reaches the fastest max speeds available over its 2.4GHz (800Mbps) and 5GHz (1733Mbps) bands
• Run Multiple Devices Simultaneously – The Archer C2600 operates 3x faster by running MU-MIMO to serve multiple devices at once instead of one at a time
• Multi-Task without Slowing Down – A powerful 1.4GHz dual-core processor lets you smoothly surf, stream, and game at the same time
• Maximum Range – 4 dual band detachable high performance antennas provide maximum Omni-directional wireless coverage with beamforming technology
• TP-LINK Tether App – TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices

Features

MU-MIMO for Nonstop Entertainment on All Your Devices

The next generation of Wireless AC technology, Multi-User MIMO, lets the Archer C2600 serve several mobile devices at the same time for speeds up to 3X faster performance for all devices on the network. Unleash the full power of your high-performance PCs, smart TVs, and consoles by using the router to seamlessly stream 4K HD video and game online across multiple devices at once with MU-MIMO, powered by Qualcomm® MU | EFX.

4-Stream for the Fastest Wi-Fi

The Archer C2600 uses 4-Stream technology to boost its Wi-Fi capability, allowing its 2.4GHz and 5GHz bands to reach industry-leading max speeds of 800Mbps and 1733Mbps respectively. With 2.53Gbps combined Wi-Fi speed, the router gives your home unmatched wireless performance.

Powerful Processing

A 1.4GHz dual-core processor can handle the demand of many users accessing your network at the same time, making it possible for everyone in your home to surf, stream, and game at once without slowing down your network.

Superior Wi-Fi Coverage

Four high-performance external antennas and high-powered amplifiers help the Archer C2600 create a strong, far-reaching network for your home. Beamforming technology further improves the router’s coverage by helping it locate wireless devices to form stronger, more reliable connections, even with mobile devices moving from room to room.

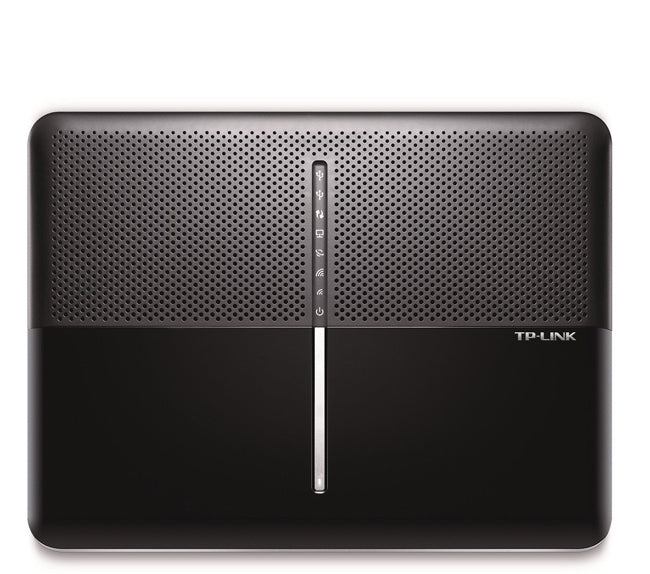

A Router You Can Show Off

An elegant, minimal design allows the Archer C2600 to blend well with any room decor. Its LEDs can be switched off to prevent distraction at night when placed in bedrooms or common spaces.

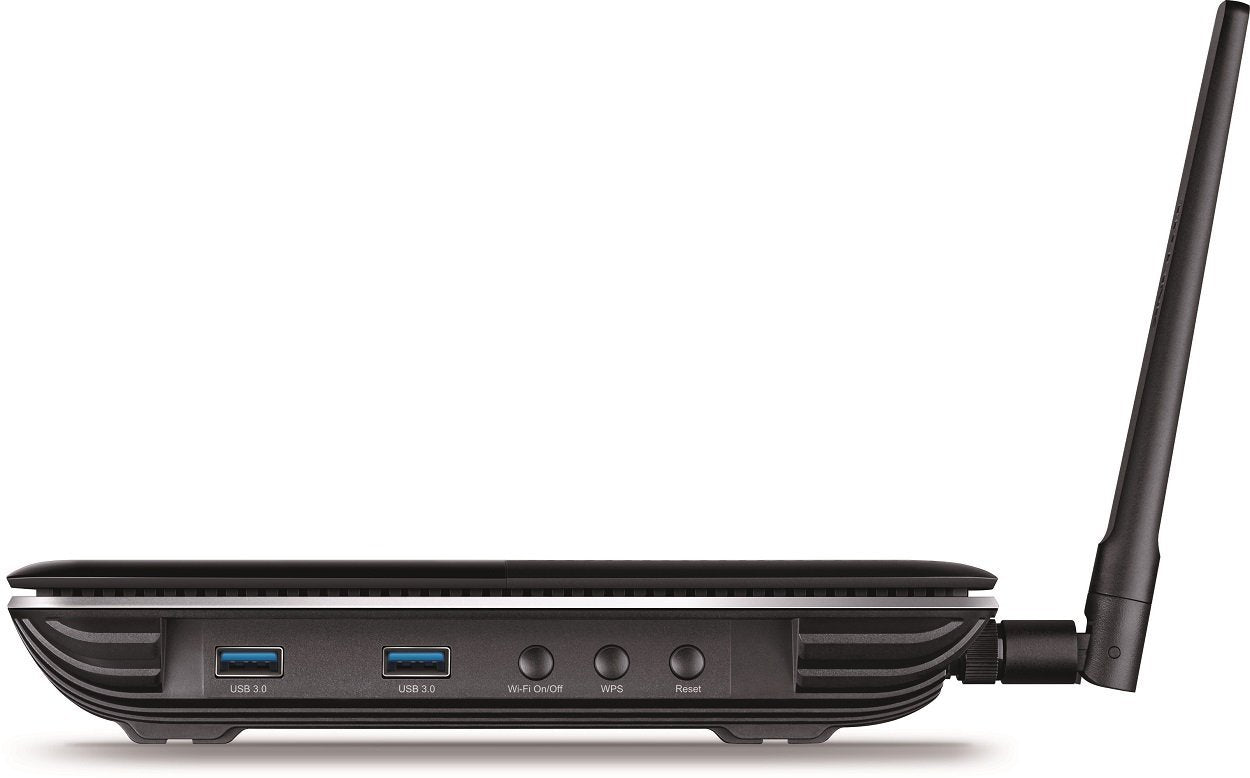

Blazing Wired Performance

The Archer C2600’s dual USB 3.0 ports run 10x faster than USB 2.0 for data transfer at lightning speed. Connect external drives to the ports and easily share files, photos, music, and video across your network. To help your wired devices achieve peak performance, the router’s four Gigabit Ethernet ports operate 10x faster than standard Ethernet.

Easy Setup and Use

Set up the Archer C3200 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and media sharing.

Guest Network

Provides visitors width Wi-Fi access separate from your main network

Parental Controls

Manage when and how connected devices can access the Internet

Advanced Security

WPA/WPA2 encryption creates an active defense against security

Specifications

HARDWARE FEATURES

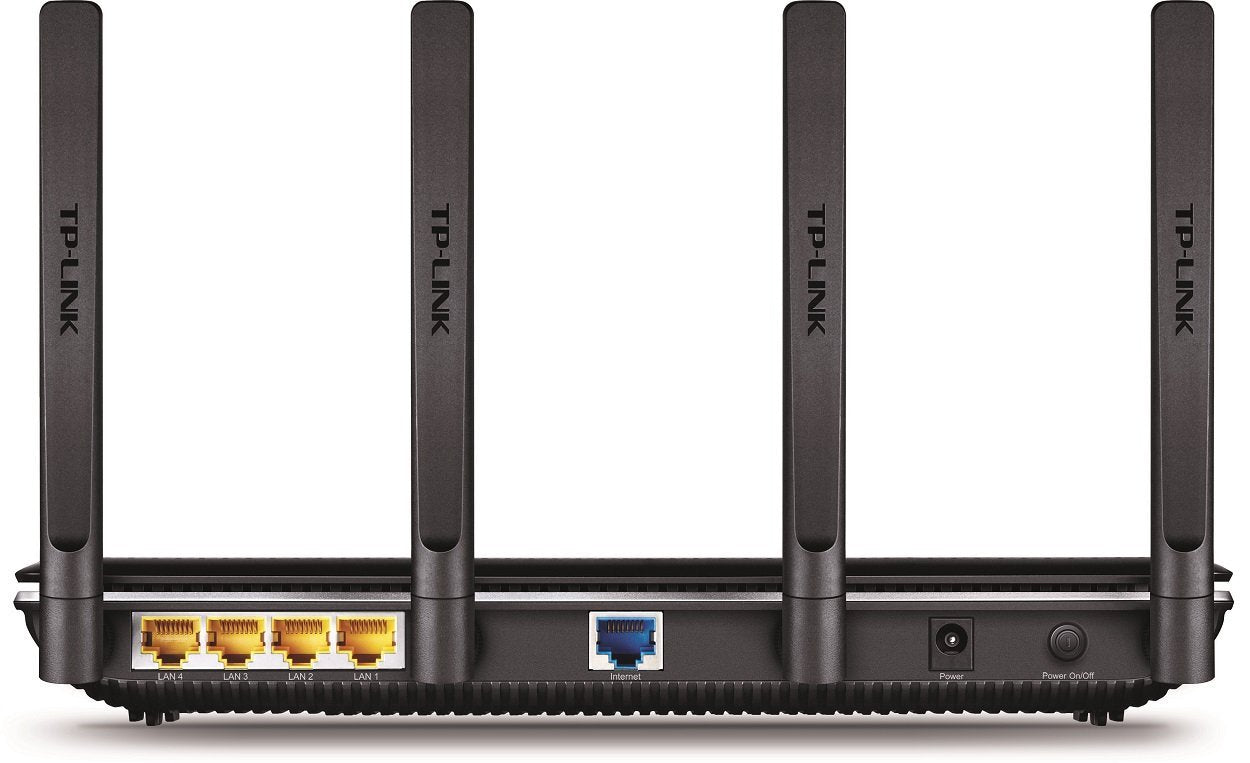

Interfaces

4 10/100/1000Mbps LAN Ports,
1 10/100/1000Mbps WAN Port
2 USB 3.0 Ports

Button

Wireless On/Off Button
Power On/off Button
LED On/off Button
WPS Button
Reset Button

Dimensions (W X D X H)

10.4 X 7.8 X 1.5 in. (263.8 X 197.8 X 37.3mm)

Antenna

4 Detachable antennas

External Power Supply

12V/4A

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz and 5GHz Band

Signal Rate

5GHz Band:

Up to 1733Mbps

2.4GHz:

Up to 800Mbps

Reception Sensitivity

5GHz:
11a 6Mbps: -91dBm
11a 54Mbps: -73dBm
11ac HT20: -66dBm
11ac HT40: -67dBm
11ac HT80: -58dBm

2.4GHz
11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -71dBm

Wireless Functions

Enable/Disable Wireless Radio, WMM, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

Transmission Power

CE:
<20dBm(2.4GHz)
<23dBm(5GHz)

FCC:
<30dBm

Guest Network

2.4GHz guest network × 1
5GHz guest network × 1

SOFTWARE FEATURES

Quality of Service

WMM, Bandwidth Control

WAN Type

Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond

Management

Access Control
Local Management
Remote Management

DHCP

Server, Client, DHCP Client List,
Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec

Access Control

Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management

Protocols

Supports IPv4 and IPv6

USB Sharing

Support Samba(Storage)/FTP Server/Media Server/Printer Server

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10

MAC OS, NetWare, UNIX or Linux

Environment Operating Temperature: 0?~40 ? (32 ?~104?)

Storage Temperature:

-40?~70 ? (-40 ?~158?)

Operating Humidity:

10%~90% non-condensing

Storage Humidity:

5%~90% non-condensing
