Features
802.11ac - The Next Generation of Wi-Fi
TP-LINK’s Archer C20i comes with the next generation Wi-Fi standard – 802.11ac, backward compatible with 802.11n and 3 times faster than wireless N speeds. With higher power efficiency and robust security, 802.11ac is the perfect way to accelerate a home multimedia network and solve congestion that multiple devices may cause.
733Mbps Dual Band Connections for Lag-Free Work and Entertainment
With 433Mbps wireless speeds over the crystal clear 5GHz band and 300Mbps over the 2.4GHz band, Archer C20i offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.
Stable Omnidirectional Signal and Superior Coverage
With 3 antennas combined with higher quality antenna technology, you can experience excellent wireless performance with stable signal in every direction and high speed across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.
Easy USB Storage and Sharing
With the USB port, you can share a printer locally and files & media with networked devices or remotely via FTP server.
Specifications
HARDWARE FEATURES | |
---|---|

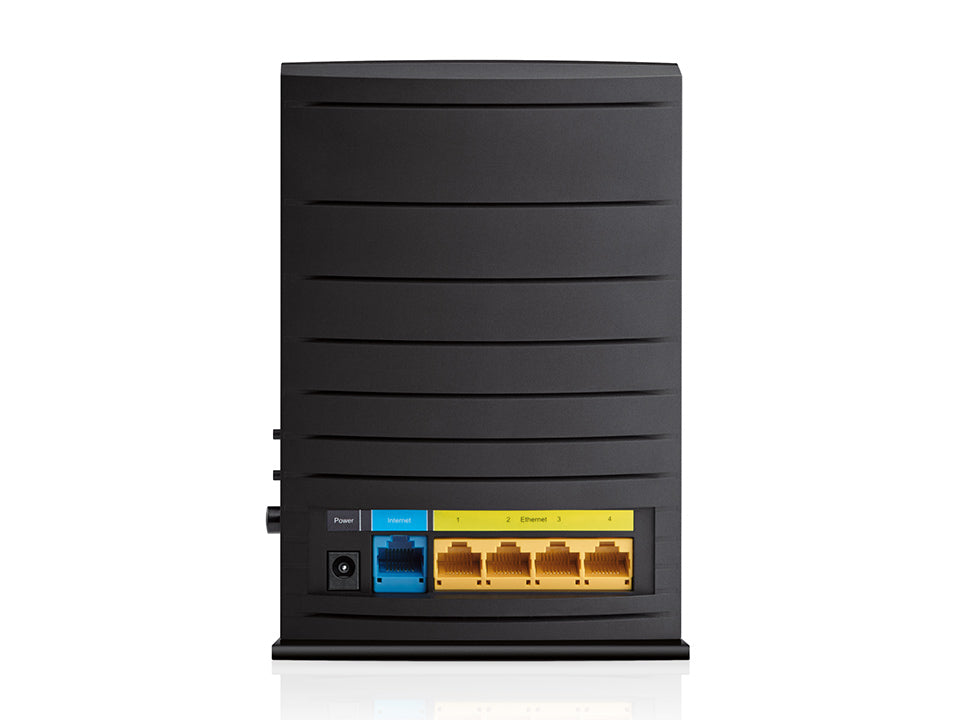

Interface | 4 10/100 LAN ports 1 10/100 WAN port 1 USB 2.0 port |

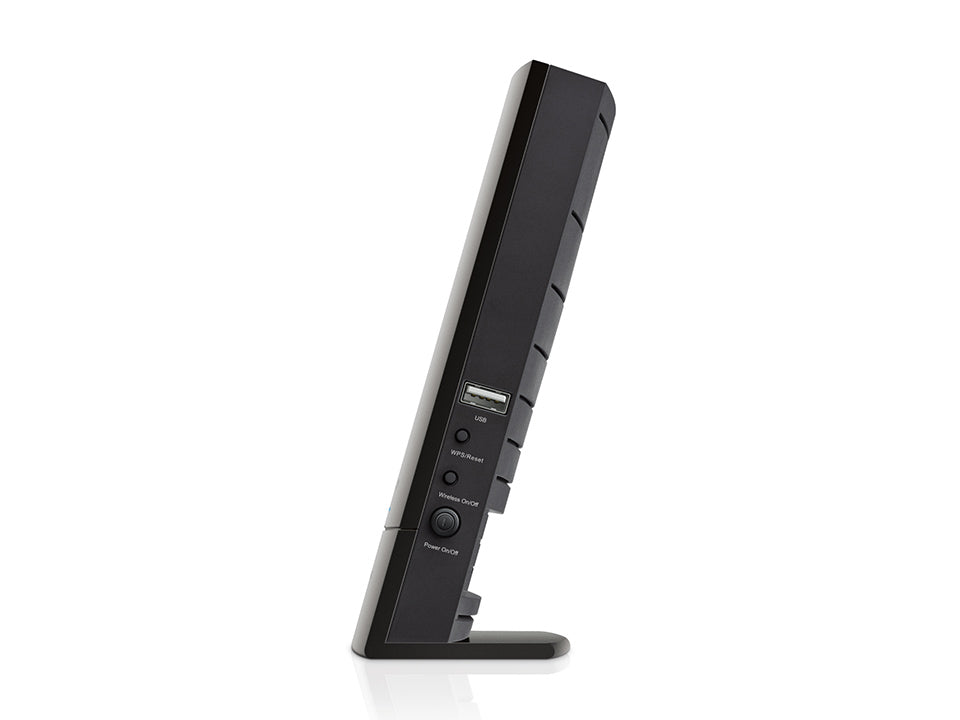

Button | WPS/Reset Button Wireless On/Off Button Power On/Off Button |
External Power Supply | 12VDC /1A |
Dimensions (W X D X H) | 4.44 x 2.36 x 6.73 in. (113 x 60 x 171mm) |
Antenna | 3 internal antennas |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz |
Frequency | 2.4GHz and 5GHz |
Signal Rate | 5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps |
Reception Sensitivity | 5GHz 11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm 11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm, 11n HT20: -71dBm, 11n HT40: -69dBm 2.4GHz 11g 54M: -74dBm 11n HT20: -72dBm, 11n HT40: -69dBm |
Transmit Power | CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
Wireless Security | 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
SOFTWARE FEATURES | |
---|---|
WAN Type | Dynamic IP/Static IP/PPPoE/ PPTP(Dual Access)/L2TP(Dual Access)/BigPond |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Quality of Service | WMM, Bandwidth Control |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Dynamic DNS | DynDns, Comexe, NO-IP |
VPN | PPTP, L2TP, IPSec |
Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
Firewall Security | DoS, SPI Firewall IP Address Filtering/MAC Address Filtering/Domain Filtering IP and MAC Address Binding |
Protocols | Supports IPv4 and IPv6 |
USB Sharing | Support Samba(Storage)/ FTP Server/Media Server/Printer Server |
Management | Access Control Local Management Remote Management |
Guest Network | 2.4GHz guest network × 1 5GHz guest network × 1 |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | AC750 Wireless Dual Band Router Archer C20i Power Supply Unit Resource CD Ethernet Cable Quick Installation Guide |
System Requirements | Windows 8/7/Vista/XP, Mac OS or Linux-based operating system |
Environment | Operating Temperature: 0?~40 ? (32 ?~104?) Storage Temperature: -40?~70 ? (-40 ?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty
18 months local warranty
Online prices, specifications, description and images generally match actual, but may vary and are subject to change without notice. Vmart cannot be held liable for errors or omissions.
Please verify the specifications at the time of purchase. No claim whatsoever would be accepted in case of specification error/mismatch, once the product is sold.
