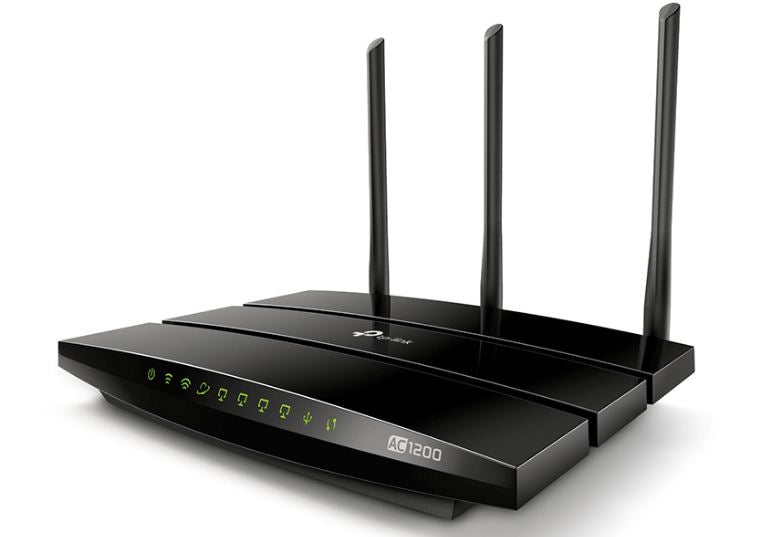

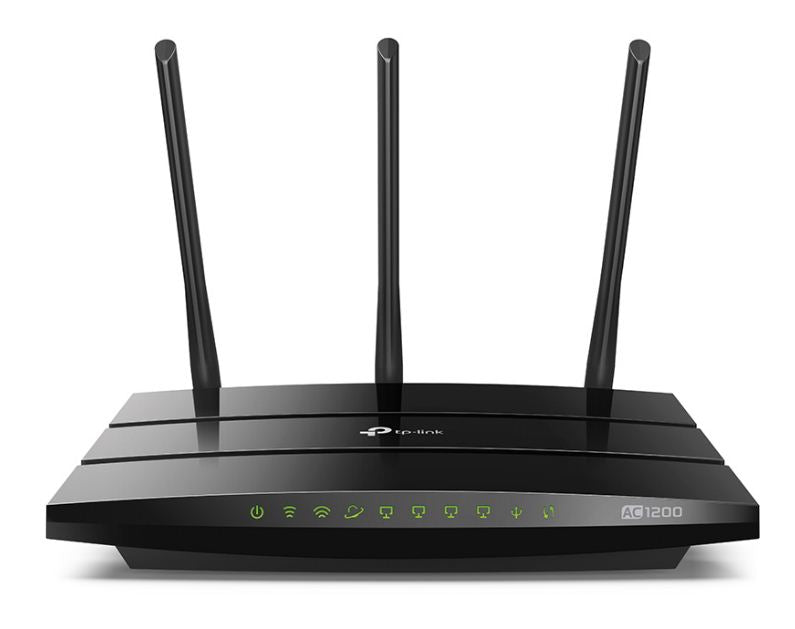

TP-Link Archer C1200 - AC1200 Wireless Dual Band Gigabit Router

Features

Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi* Three external antennas greatly expand wireless coverage* Beamforming technology delivers highly efficient wireless connection (supported by Version 2.0 and above) Lightning-Fast wired connections using four Gigabit Ethernet ports One USB port to support storage and file sharing Easy setup and management with Tether App

1200Mbps Wi-Fi for Smooth Entertainment The Archer C1200 creates a reliable, blazing-fast network using powerful 802.11ac Wi-Fi technology. Now you can enjoy streaming HD video and lag-free online gaming on the clear 5GHz band while using the 2.4GHz band for everyday tasks such as checking email and web browsing.

Easy Setup and Management with the Tether App The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer C1200 and manage your network settings.

External Antennas Greatly Expand Wireless Coverage Three external antennas with advanced connection technology allow you to maintain impressive speeds, even over greater distances. This means that you can enjoy incredible wireless coverage and reliability in any part of your large home or office.

Versatile USB Sharing With the USB 2.0 port, you can share printers, files, and media with numerous devices on your local network or via FTP server from anywhere in the world.

Full Gigabit Wired Connections With four built-in gigabit Ethernet ports, the Archer C1200 can provide fast, stable connections to all of your favorite wired devices, including game consoles, smart TVs, DVRs, and more.

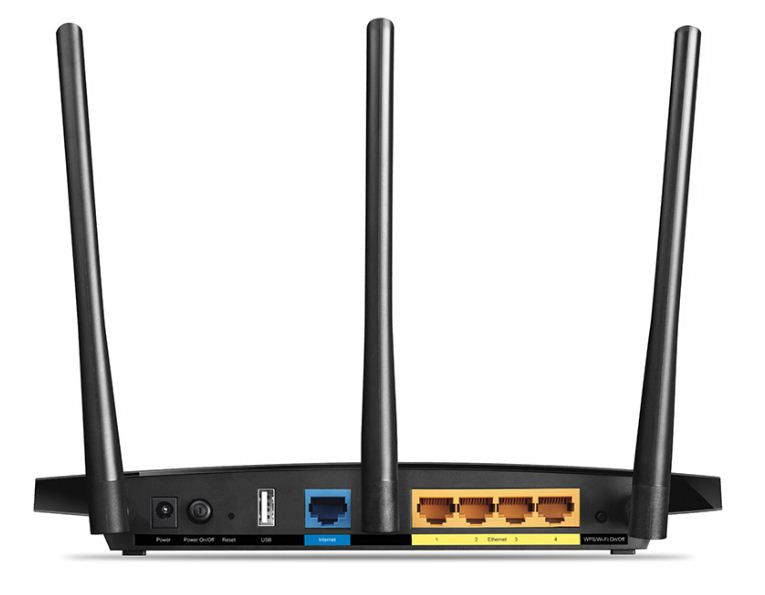

ARDWARE FEATURES Interface 4 10/100/1000Mbps LAN Ports 1 10/100/1000Mbps WAN Port 1 USB 2.0 Ports

Button: Power On/Off Button WPS/Wireless: On/Off Button, Reset Button External Power Supply 12VDC / 2.0A Dimensions ( W x D x H ) 9.6x6.4x1.3 in. (243x160.6x32.5mm) Antenna Type 3 external antennas

WIRELESS FEATURES Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11n/g/b 2.4GHz Frequency: 5GHz and 2.4GHz Signal Rate: 5GHz: Up to 867Mbps, 2.4GHz: Up to 300Mbps

Reception Sensitivity: 5GHz: 11a 54Mbps: -76dBm 11ac HT20: -68dBm 11ac HT40: -65dBm 11ac HT80: -62dBm 11n HT20: -74dBm 11n HT40: -70dBm

2.4GHz: 11g 54M: -77dBm 11n HT20: -75dBm 11n HT40: -71dBm

Transmit Power CE: <20dBm （2.4G） <23dBm （5G） FCC: <30dBm

Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics Wireless Security: 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

SOFTWARE FEATURES Quality of Service WMM, Bandwidth Control WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access)/PPTP(Dual Access) Management Access Control Local Management Remote Management DHCP Server, Client, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, NO-IP VPN Pass-Through PPTP, L2TP, IPSec Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management Firewall Security DoS, SPI Firewall MAC Address Filter IP and MAC Address Binding Protocols Supports IPv4 and IPv6 USB Sharing Support Samba(Storage)/FTP Server/Media Server/Printer Server Guest Network 2.4GHz guest network × 1 5GHz guest network × 1 VPN Server OpenVPN, PPTP VPN

OTHERS Certification FCC, RoHS Package Contents AC1200 Wireless Dual Band Gigabit Router Archer C1200 Power supply unit Ethernet Cable Quick Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10 MAC OS, NetWare, UNIX or Linux

Environment

Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
