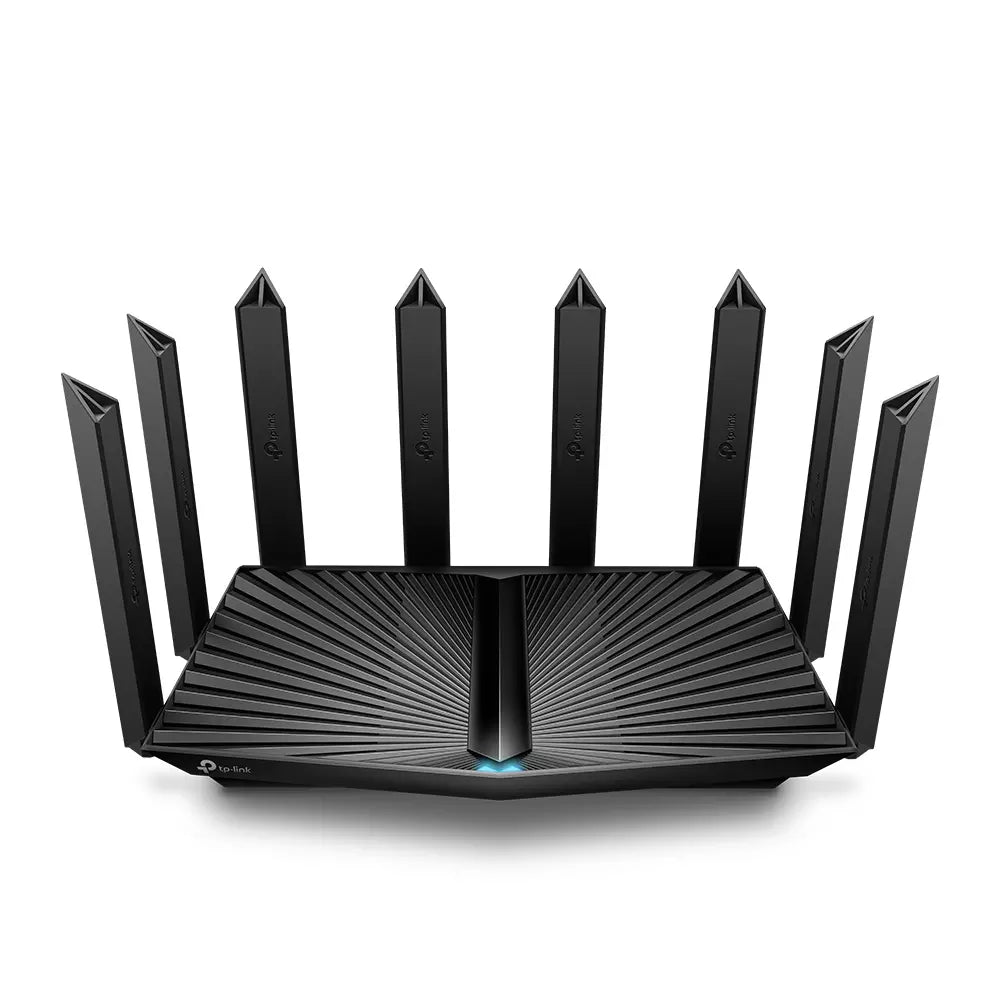

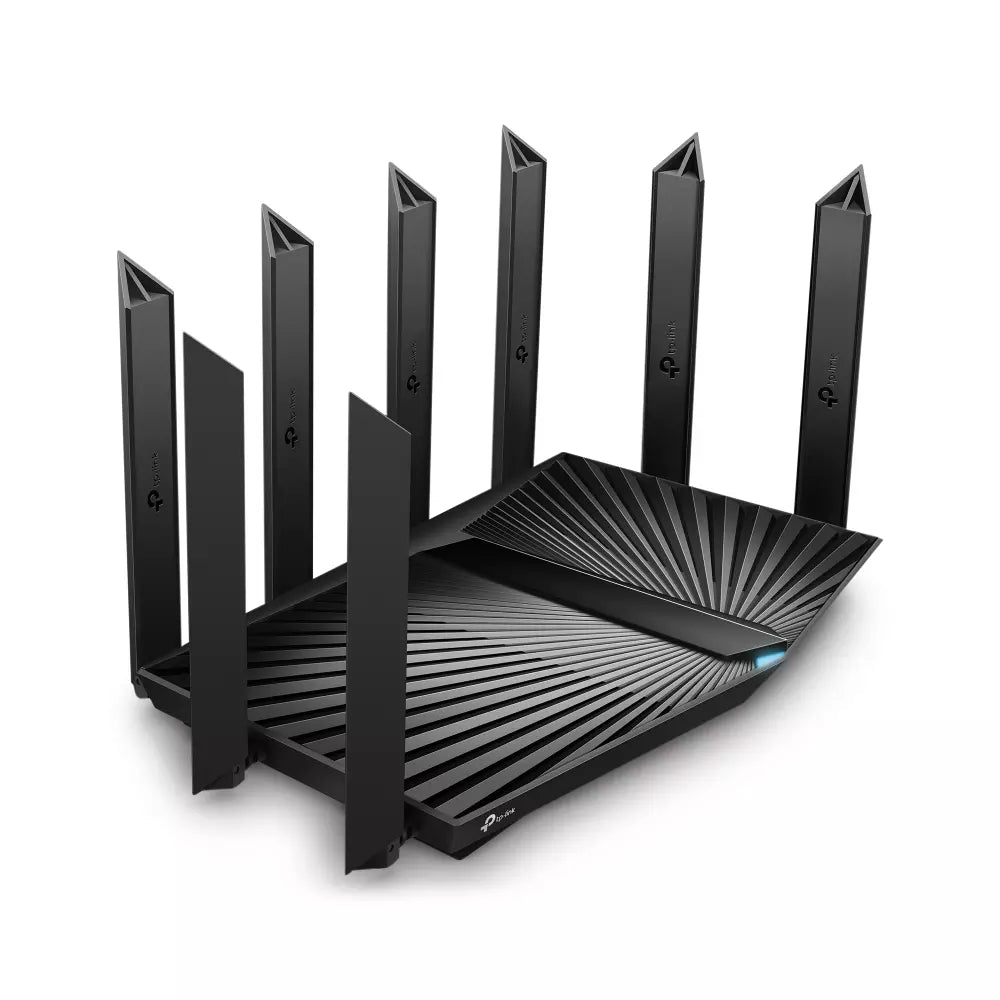

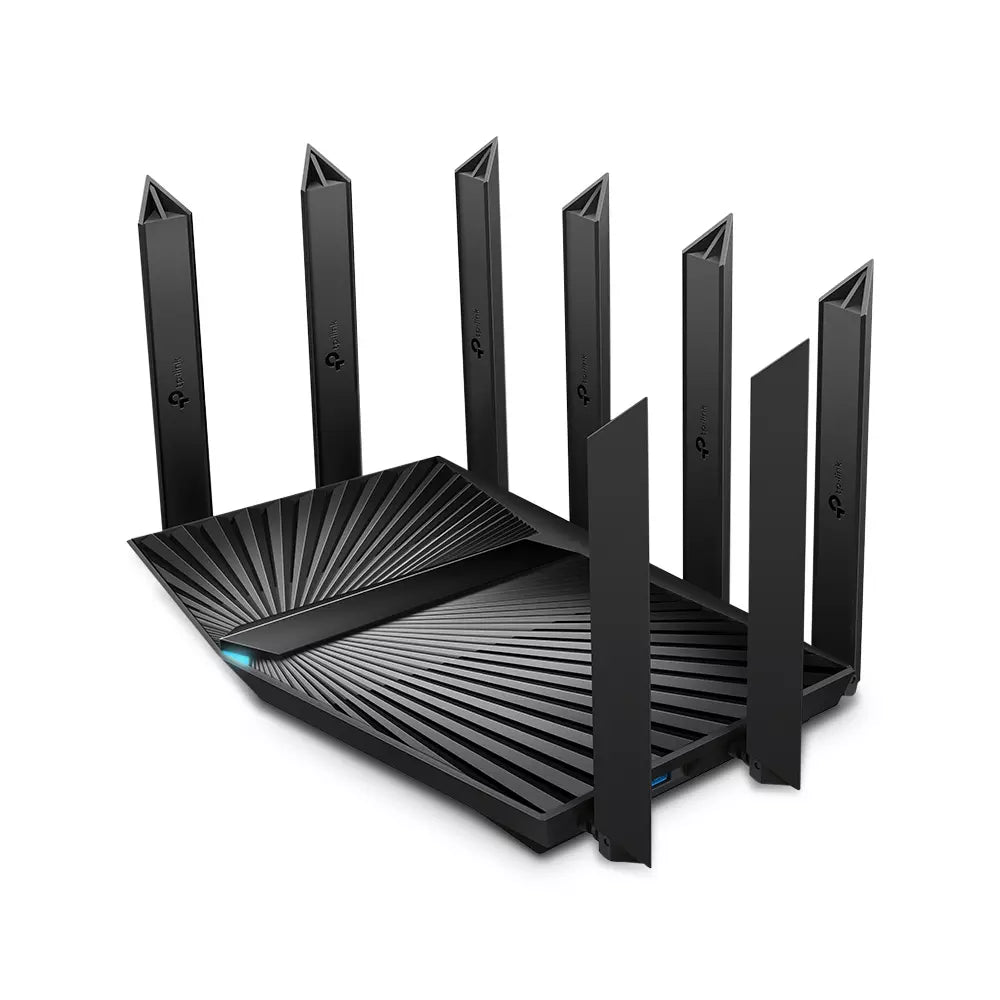

TP-Link Archer AX90 AX6600 Tri-Band Wi-Fi 6 Router

Buy TP-Link Archer AX90 AX6600 Tri-Band Wi-Fi 6 Router online at Rs. 78990. Buy complete range of Wireless Routers on Vmart.pk, We Offer home delivery all over Pakistan.

- 4804 Mbps (5 GHz) + 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).

- 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.

- Eight high-gain antennas equipped with Beamforming ensure vast coverage.

- OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.

- Enhanced security defends against the latest cyber threats.

- 1.5 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.

—WPA3 reinforces Wi-Fi encryption for improved security.

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX6600

5 GHz: 4804 Mbps (802.11ax, HE160)

5 GHz: 1201 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 4 Bedroom Houses

8× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Concentrates wireless signal strength towards clients to expand WiFi range

Improves transmission power to strengthen signal coverage

Multiple streams in the same band strengthen the fault tolerance in transmission

WiFi Capacity Very High

Tri-Band

Allocate devices to different bands for optimal performance

Simultaneously communicates with multiple MU-MIMO clients

Simultaneously communicates with multiple Wi-Fi 6 clients

Improves network efficiency by limiting excessive occupation

Access an extra band to reduce congestion

8 Streams

Connect your devices to more bandwidth

Working Modes Router Mode

Access Point Mode

Processor 1.5 GHz Quad-Core CPU

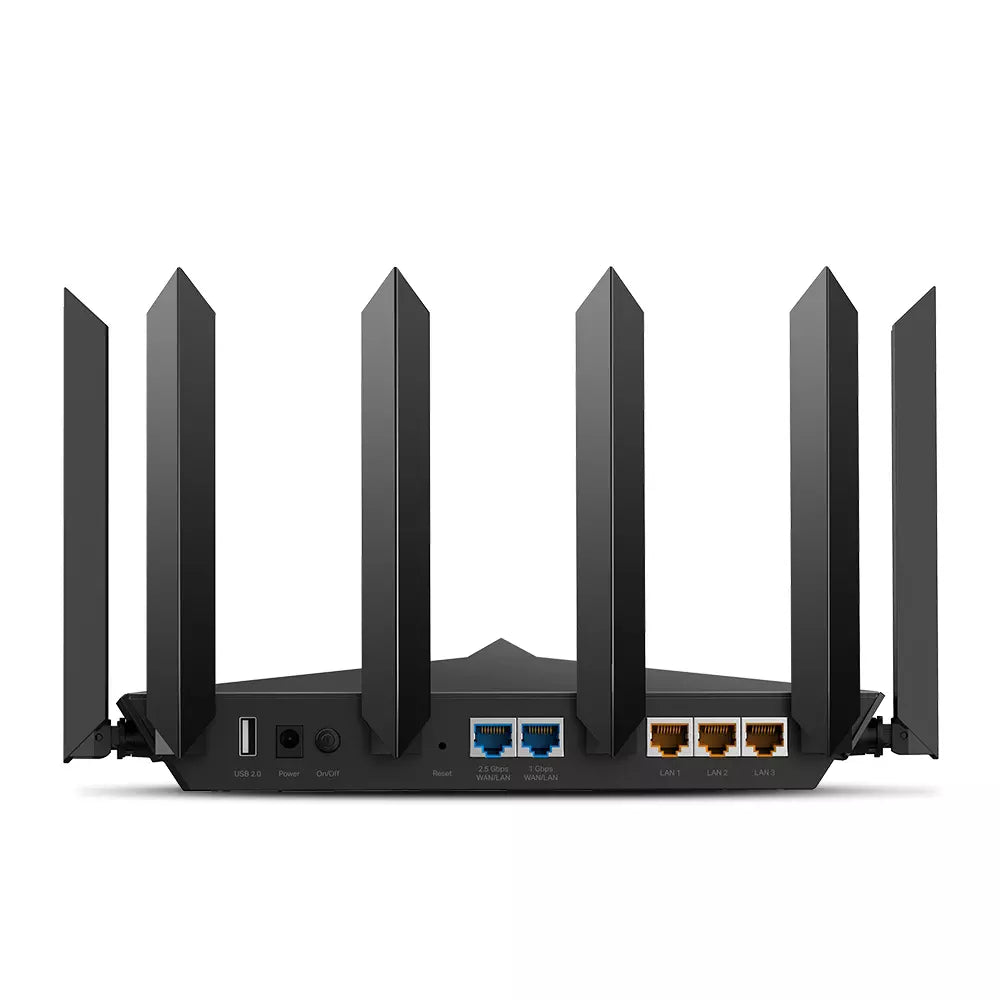

Ethernet Ports 1× 2.5 Gbps WAN/LAN Port

1× 1 Gbps WAN/LAN Port

3× 1 Gbps LAN Ports

USB Support 1× USB 3.0 Port

1× USB 2.0 Port

NTFS, exFAT, HFS+, FAT32

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power 12 V ⎓ 3.3 A

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Network Security SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network 1× 5 GHz-1 Guest Network

1× 5 GHz-2 Guest Network

1× 2.4 GHz Guest Network

VPN Server OpenVPN

PPTP

Protocols IPv4

IPv6

Service Kits HomeShield

Learn More>

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Parental Controls HomeShield Parental Controls

Custom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service QoS by Device

Cloud Service Auto Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

Port Triggering

DMZ

UPnP

Virtual Server

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

WiFi Transmission Power CE:

<20dBm{2.4GHz}

<23dBm{5.15GHz~5.35GHz}

<30dBm{5.47GHz~5.725GHz}

<24dBm{5.47GHz~5.725GHz }

<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }

WiFi Reception Sensitivity 2.4GHz:

11n HT20 MCS0:-95dBm

11ax HE20 MCS11:-64dBm

11ax HE40 MCS11:-62dBm

11ac VHT20 MCS0:-92dBm

11ax HE20 MCS11:-61dBm

11ax HE40 MCS11:-58dBm

11ax HE80 MCS11:-55dBm

11ac VHT20 MCS0:-95dBm

11ax HE20 MCS11:-61dBm

11ax HE40 MCS11:-58dBm

11ax HE80 MCS11:-55dBm

11ax HE160 MCS11:-53dBm

Dimensions (W×D×H) 12.2 × 8.1 × 6.8 in

(311 × 207 × 174 mm)

Wi-Fi Router Archer AX90

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
