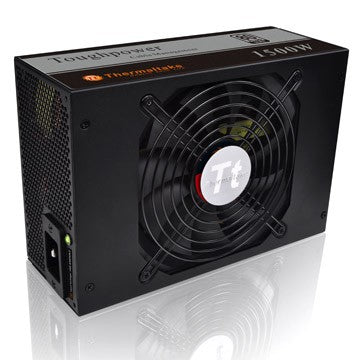

Thermaltake Toughpower 1500W Power Supply

Buy Thermaltake Toughpower 1500W Power Supply online on Vmart.pk with cash on delivery service in Karachi, Lahore, Islamabad and Rawalpindi. Buy complete range of Thermaltake products online at vmart.pk with free home delivery in Pakistan (Karachi, Lahore, Islamabad and Rawalpindi). Vmart.pk will deliver the product at your doorstep and you can pay the amount on delivery.

Features

• Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.
• 24 / 7 @ 40?: Guaranteed to deliver 1500W continuous power.
• 80 PLUS Silver certified – with 87-91% efficiency @ 20-100% load under real world load conditions.
• Double-forward switching circuitry offers low power loss and high reliability.
• Robust and dedicated quad +12V rails(30A for 12V1 & 12V2, 50A for 12V3 & 12V4) design provides superior performance under all types of system loading.
• High quality Japanese capacitors: ensure superb performance and reliability.
• Solid state capacitors: great stability at higher operating temperatures, frequencies and currents.
• Universal AC input 100V~240V automatically scans and detects the correct voltage.
• Multi-GPU ready: 8 x PCI-E connectors support up to 4-way ATI CrossFireX and Nvidia SLI.
• Designed to support latest Intel/AMD multi -core CPUs.
• Active PFC with PF value 0.99 - less harmonic pollution, greater efficiency.
• Ultra-silent operation with intelligent 13.5cm cooling fan speed control.
• Dimension: 150mm(W)x86mm(H)x220mm(L).
• High reliability: MTBF>120,000 hours.
• Built in industrial-grade protections: over current, over voltage, under voltage, over power, over temperature and Short-Circuit protections.
• Safety / EMI : UL/CUL, CE, FCC, CB+Baurt mark, GOST and BSMI certified.

Technology Features

High Quality Japanese Capacitor

Japanese capacitors provide uncompromised performance and reliability.

High Efficiency Circuit Design

Maximum efficiency up to 91% under wide load range.

 Industrial Grade Protection

Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power, Over Temperature and Short-Circuit Protections.

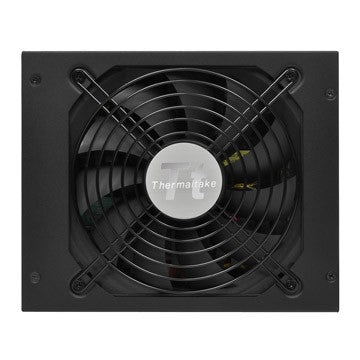

Ultra Quiet 13.5cm Fan

Toughpower 1500W adopt 13.5cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

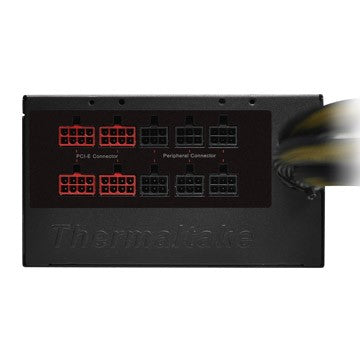

Modular Cable Management

Cable management design improves internal airflow and reduce clutter.

12V Rails Distribution

24 PIN Main Connector 12V1

Peripheral & Floppy Connector

12V1

S-ATA Connector

12V1

4+4PIN +12V CPU Connector

12V2

8 PIN +12V CPU Connector

12V2

Two 6+2pin Straight PCI-E Connectors

12V3

Two 6+2pin Straight PCI-E Connectors

12V3

6+2pin Modular PCI-E Connector

12V4

6+2pin Modular PCI-E Connector

12V4

6+2pin Modular PCI-E Connector

12V4

6+2pin Modular PCI-E Connector

12V4

Hybrid SLI / CrossFire X & Intel C6 State mode support :

C6 State CPU Mode

CPU load range from Max. to only 1W.

Nvidia & ATI/AMD multi graphic cards configuration

Hybrid mode will cause graphic cards load range from Max. to only 1W.

Toughpower 1500W series are able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its ZERO LOAD (0W) Design.

Specifications

P/N

TP-1500M

Type

Intel ATX 12V 2.3 & EPS 12V 2.92

Max. Output Capacity

1500W

Peak Output Capacity

1600W

Color

Black

Dimension (H x W x D)

86mm x 150mm x 220mm

PFC(Power Factor Correction)

Active PFC

Power Good Signal

100-500 msec

Hold Up Time

16msec (minimum) @ full load at 115Vac/ 230Vac input.

Input current

18A – 9A

Input Frequency Range

50 Hz - 60 Hz

Input Voltage

100 Vac- 240 Vac

Operating Temperature

+0? to +40?

Operating Humidity

10% to 85%,non-condensing

Storage Temperature

-40 ? to +70 ?

Storage Humidity

5% to 90%, non-condensing

Cooling System

135mm Fan: 2400 R.P.M. ± 10%

Efficiency

87%-91% efficiency @ 20-100% load

MTBF

120,000 hrs minimum

Safety Approval

UL/CUL, CE, FCC, CB+Baurt mark, GOST and BSMI

PCI-E Connector

x 8
