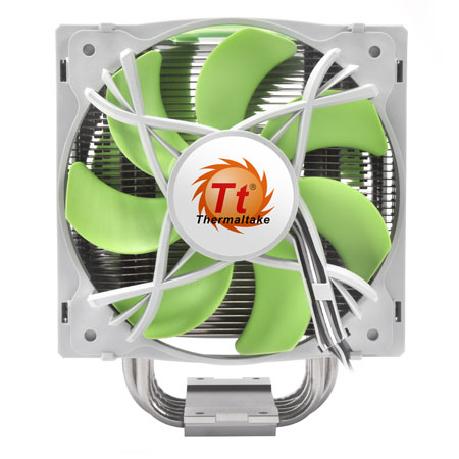

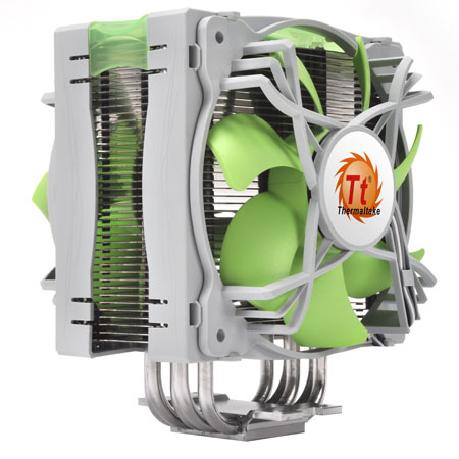

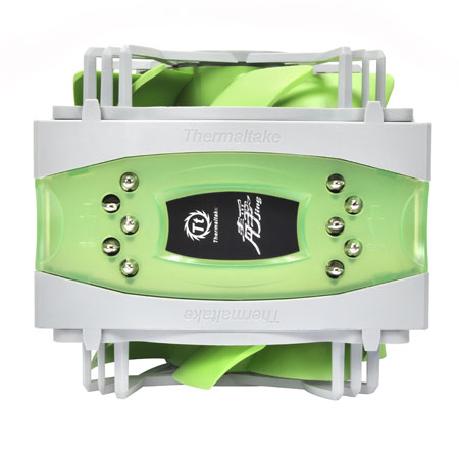

Thermaltake Jing CPU Cooler

Optimized cooling performance
- Large Aluminum fins with five Φ6 heat-pipes offers good cooling capacity. It supports to OC 4.0G in i7 CPU.
- All nickel plated fins, copper base and heat-pipes for better heat transmission.
2 extremely silent 120mm VR fans, speed from 800~1300RPM
- Ultra quiet operation with 16 dBA under minimum fan speed.
- Dual unique inhale-exhaust 120mm reverse fan design generates greater air flow to enhance thermal performance.
- Vibration-absorbent gaskets decrease noise while operation.
Universal Socket Compatibility & Accessory Package
- All-in-one back-plate design for accelerated installation
- Universal support: Intel socket LGA 1366/1156/775 and AMD socket AM2/AM2+/AM3.
- Superb thermal grease maximizes heat transfer

Specifications

Compatibility

Intel® Latest Sandy Bridge & 6-Core Processors
Intel® Core i7 Extreme (Socket LGA1366)
Intel® Core i7 (Socket LGA1366 & LGA1155/1156)
Intel® Core i5 / i3 (Socket LGA1155/1156)
Intel® Core 2 Extreme / Quad / Duo (Socket LGA775)
Intel® Pentium & D / 4 (Socket LGA775)
Intel® Celeron & D (Socket LGA775)

AMD® Latest Llano & 6-Core Processors
AMD® Llano Processors (Socket FM1)
AMD® Phenom II X6 / X4 / X3 / X2 (Socket AM3/AM2+)
AMD® Phenom X4 / X3 (Socket AM3/AM2+)
AMD® Athlon II X4 / X3 / X2 (Socket AM3)
AMD® Athlon 64 & FX / X2 (Socket AM2/939)
AMD® Sempron (Socket AM2/939/754)

* Supports All CPUs up to 200W TDP

Heatsink Dimension
131(L) x 123(W) x 162(H) mm
(with 2 Fans)

Heatsink Material Aluminum Fins
Aluminum & Copper Base
Heatpipe 6mm (x5)
Fan Dimension 120(L) x 120(H) x 25(W) mm
Fan Speed 800 ~ 1,300 RPM
Bearing Type ----
Noise Level 16 dBA @ 800 RPM
Max. Air Flow 42 CFM
Max. Air Pressure Air Intake = 0.85 mmH2O
Air Exhaust = 1.43 mmH2O
LED Fan ----
Power Connector 3 Pin
Rated Voltage 12 V
Started Voltage 6 V
Rated Current 0.2 A
Power Input 2.4 W
MTBF 50,000 Hrs @ 40℃
Weight 920 g (with 2 Fans)
