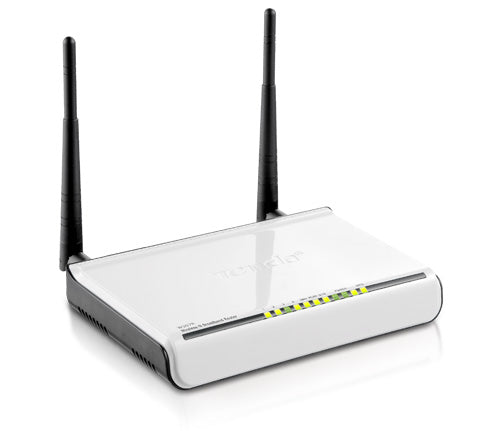

Tenda W307R Wireless-N Broadband Router

The W307R is a 300Mbps Wireless-N router, wireless access point, four-port switch, and firewall all-in-one.

Utilizing advanced MIMO technology, WLAN range is double that of 802.11g products. The W307R also provides WDS (Wireless Distribution System), enabling the bridging of other wireless routers and extending wireless coverage.

Plenty of features are bundled to better secure and manage a network, including; port and MAC address filters, WPS (Wi-Fi Protected Setup), QoS bandwidth control, and the ability to disable SSID broadcast. Management from anywhere is conveniently accomplished through a web interface, and a Tenda-developed setup wizard makes installation easy for anyone.

The W307R is a good choice for small or home offices in search of a fast, secure, easy-to-use, and feature-rich wireless network.

• Wireless AP, Router, 4-Port Switch, and Firewall
• Provides up to 300Mbps transmission rates
• WPS (PBC and PIN) enabled device
• Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, and IEEE 802.3u standards
• MIMO technology utilizes reflection signal to greatly increase the transmission strength and range
• Double the transmission range of 802.11g products
• Meets 64/128-bit WEP, WPA, and WPA2 security standards
• Setup wizard for fast and easy configurations

• • Input Voltage Range: AC 110~240V
  • Output Voltage Range: AC 9V,1A
  • Consumption: 6W
  • Operating Temperature: 0 ~ 40
  • Storage Temperature: -40 ~ 70
  • Frequency Range: 2.4GHz
  • Transmission Power: 17dBm(max.)
  • WLAN-LAN: 93Mbps
  • Gain: 5dBi
  • Nominal Impedance: 50 Nominal
  • Application: Indoors
  • Connector: MHF
  • Description: Black Rotatable Column Omni-directional Antenna
  • Structure: Two columned antennas
  • Antenna: Non-detachable antenna (5dBi)
  • Sensitivity
    • 270M:-70dBm@10% PER;
    • 130M: -70dBm@10% PER;
    • 108M:-70dBm@10% PER;
    • 54M:-73dBm@10% PER;
    • 11M:-85dBm@8% PER;
    • 6M:-88dBm@10% PER;
    • 1M:-90dBm@8% PER

• • IEEE 802.11 Standards Supported: 802.11n/g/b
  • Package Contents
    • One W307R Wireless Router
    • One Power Adapter
    • One Quick Installation Guide
    • One CD-ROM

• Warranty: 1 year company provided
