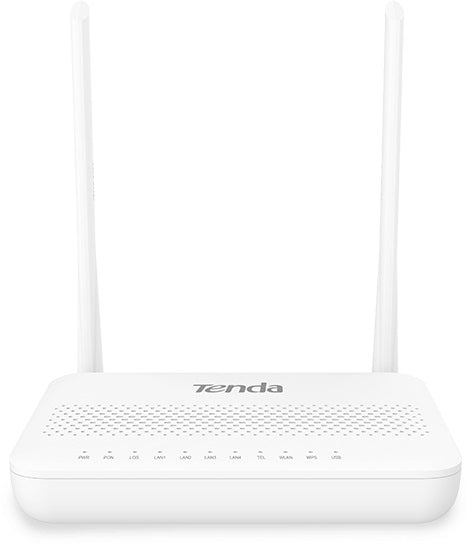

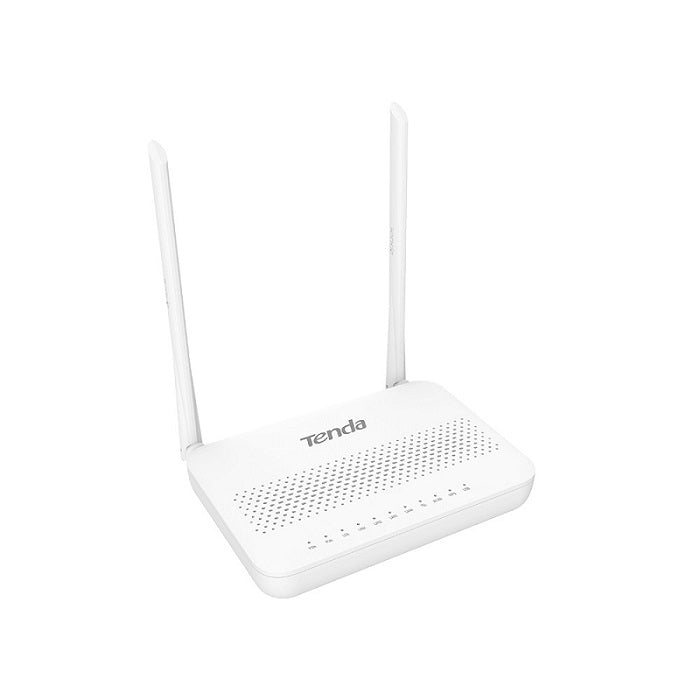

Tenda HG6 N300 Wi-Fi GPON ONT Router

Buy Tenda HG6 N300 Wi-Fi GPON ONT Router online at Rs. 7390. Buy complete range of Wireless Routers on Vmart.pk. We Offer home delivery all over Pakistan.

Ideal solution for FTTH solution

2.4G Wi-Fi, 300Mbps wireless speed

2* 6 dBi high gain antennas• 4 * LAN ports(1* GE , 3*FE)

VoIP/IPTV supported• High compatible to OLTs

OMCI / TR069 remote management

IPv6 supported

HG6 comes with the 11n Wi-Fi, with up to 300Mbps wireless speed over 2.4GHz band,it balances the signal field and gain, providing you with stronger Wi-Fi signals.

2 clean-cut 6dBi antennas and high to 20dBm strong RF power,with leading accordion wireless design, HG6 balances the signal field and gain, ensures the good wireless performance for wide signal coverage.

With the 4 LAN ports, users can enjoy high-speed GPON services and bandwidth-intensive multimedia applications such as interactive gaming, IPTV,HD video streaming and NAS service much easier and faster than ever before.

Fiber optic disc

More reliable for fiber signal input

More stable for long time product using

IPv6 support much more IP address volume , need not to do the data resolution , which decrease the transfer time delay between server and client , in order to provide a better experience to users.

HG6 can provide efficient operation and maintenance, such as remote business modification, remote upgrade, remote restart, remote fault diagnosis and so on, making the remote control easy and quick.

Compliant with ITU-T G.984 standard, HG6 has extensive compatibility with lots of OLT brands worldwide ,like Huawei, ZTE, Fiberhome, Nokia SBell and so on.

IEEE Standards IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z

PON Standards ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4

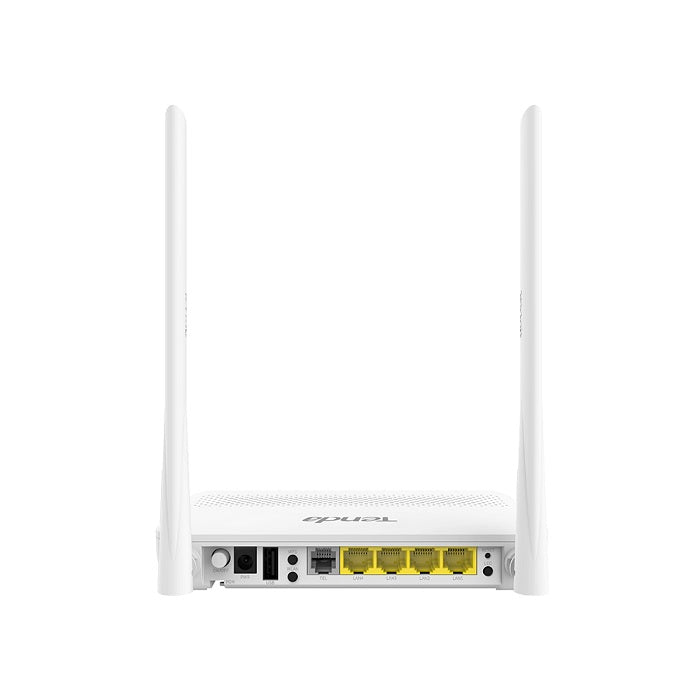

Interfaces 1*SC/APC GPON Port, 1*1000Mbps RJ45 LAN Port, 3*100Mbps RJ45 LAN Ports, 1*USB Port,

1*VoIP Port, 1*DC Port

LED Indicator PWR, PON, LOS, LAN1, LAN2，LAN3, LAN4, TEL,WLAN, WPS, USB

Button 1* Power On/Off Button, 1*WPS Button, 1*WLAN Button, 1 RESET Button ，1*LED Button

Optical Mode Class B+

Optical Wavelength Transmit at 1310nm, Receive at 1490nm

Transmission Distance 20km Max

Bandwidth Upstream 1.25Gbps Max, Downstream 2.5Gbps Max

Dimension 163*115*28 mm (W * D * H)

TX Power 0.5~5dBm

RX Power -28~-8dBm

External Power Supply DC 12V /1.0A

Power Consumption ≤12w

DHCP Server Server, Client, DHCP Client List, Address Reservation, DHCP Relay

WAN Connection PPPoE , Dynamic IP, Static IP, Bridge

Business Type TR069, Internet, IPTV, VoIP

Quality Of Service Bandwidth Control

IP Version IPv4, IPv6

Services DHCP, Dynamic DNS , IGMP Proxy UPnP, Samba

VPN Pass-through PPTP, L2TP, IPsec Pass-through

Firewall ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZ

IPv6 Radvd, DHCPv6, MLD Proxy, MLD Snooping

Diagnostics Ping, Ping6, Tracert, Tracert6

TR069 ACS, Connection request

VoIP Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm

Frequency 2.4GHz，IEEE802.11 b/g/n

Bandwidth 20M/40M

Channel Range CH1-CH13

Antenna 2 * 6 dBi Antenna

Easy Client Setup WPS Button, WPS LED

Speed 11n 300M

Transmission Power <20 dBm(EIRP)

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering

SSIDs Main SSID

4 Guest SSIDs

Max Terminal Linked 32

Operation Temperature 0°c ~ 45°c

Storage Temperature -40°c ~ 70°c

Operating Humidity 10% ~ 90% （Non-condensing）

Storage Humidity 5% ~ 90% (Non-condensing)

Package Contents 1*HG6,1* Power adapter, 1* Quick install guide, 1* RJ45 cable, 1* RJ11 cable

Certification CE, FCC, RoHS, Anatel
