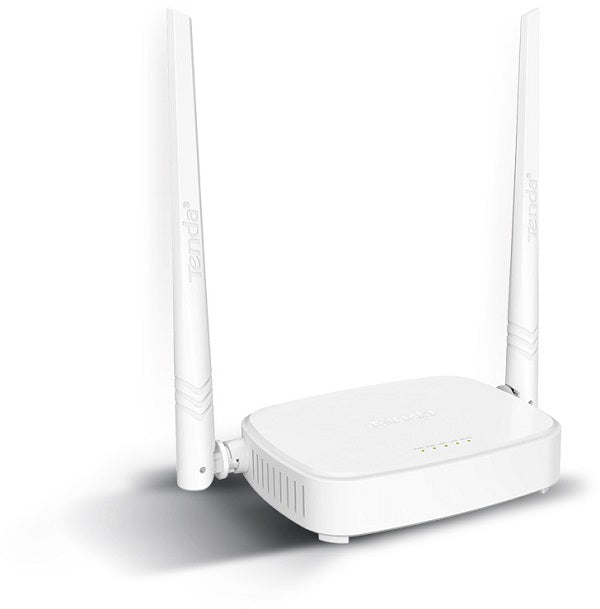

Tenda HG3 N300 WiFi xPON ONT Router

Buy Tenda HG3 N300 WiFi xPON ONT Router online at Rs. 4590. Buy complete range of Wireless Routers on Vmart.pk. We Offer home delivery all over Pakistan.

Custom batch modification of default configuration

Stable and reliable with the powerful chipset and delicate cooling design

Auto adaptive EPON & GPON

High compatible with OLTs

OAM/OMCI/TR069 Management

HG3 Supports customized default configuration to apply to devices in batch. After consumers' misoperation, the easy reset function can restore to the default configuration, which only can be modified by ISP, reducing after-sale services.

1GHz CPU cooperates with 1G RAM offers sharp Internet speed. Delicate heat dissipation design to run the device stably

Built-in intelligent EPON and GPON link detection tech switches automatically, device deployment flexibly

2*5dBi super omni-directional gain antennas, with Tenda's RF tuning tech, allowing the signal to cover over one more wall

Tenda lab has conducted several compatibility tests on global mainstream OLT brands, such as Huawei, ZTE, Fiberhome, NOKIA, Tenda, etc., to ensure that ONU is perfectly adapted to the ISP local environment

HG3 complies with international standards such as CE, FCC, RoHS, etc., more environmental protection and energy saving

IEEE Standards IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z

PON Standards GPON: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4

EPON: IEEE802.3ah

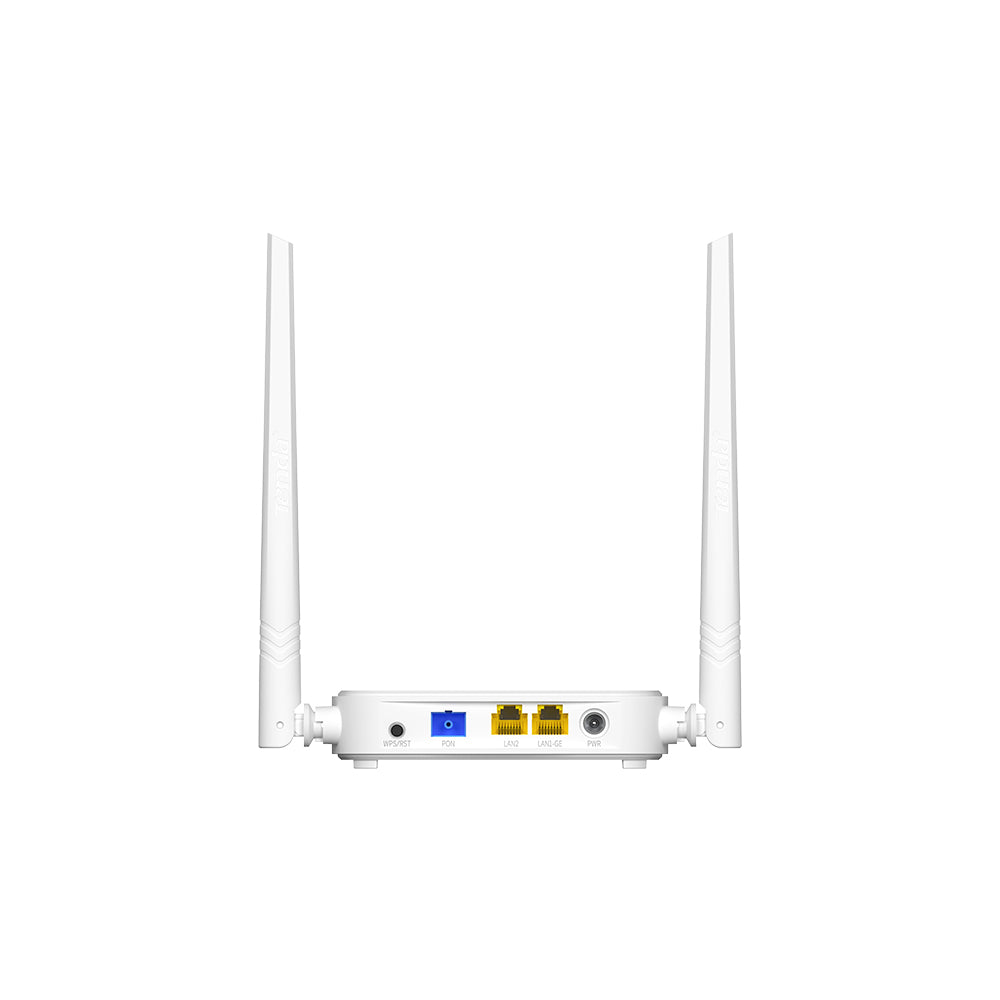

Interfaces 1*SC/APC (or UPC) Port, 1*1000Mbps RJ45 LAN Port, 1*100Mbps RJ45

LAN Port, 1*DC Port

LED Indicator 1*WPS/RST Button

Button 1*WPS/RST Button

Optical Mode Class B+

Optical Wavelength Transmit at 1310nm, Receive at 1490nm

Transmission Distance 20km Max

Bandwidth Upstream 1.25Gbps Max, Downstream 2.5Gbps Max

Dimension 166.6*90.5*27mm (W * D * H)

TX Power 0.5~5dBm

RX Power -28~-8dBm

External Power Supply DC 9V /1A

Power Consumption ≤9w

DHCP Server PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection

WAN Connection PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection

Business Type TR069, Internet, IPTV

Quality Of Service Bandwidth Control

IP Version IPv4, IPv6

Services DHCP, Dynamic DNS , IGMP Proxy UPnP

VPN Pass-through PPTP, L2TP, IPsec Pass-through

Firewall ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ

IPv6 Radvd, DHCPv6, MLD Proxy, MLD Snooping

Diagnostics Ping, Ping6, Tracert, Tracert6

TR069 ACS, Connection request

Frequency 2.4GHz

Bandwidth 20M/40M

Channel Range CH1-CH13

Antenna 2 * 5 dBi Antenna

Easy Client Setup WPS/RST Button

Speed 11n 300M

Transmission Power <20 dBm(EIRP)

Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering

SSIDs Main SSID ,4 Guest SSIDs

Max Terminal Linked 16

Operation Temperature 0°c ~ 45°c

Storage Temperature -40°c ~ 70°c

Operating Humidity 10% ~ 90% (Non-condensing)

Storage Humidity 5% ~ 90% (Non-condensing)

Package Contents 1*HG3, 1* Power adapter, 1* User Manual, 1* RJ45 cable

Certification CE, FCC , RoHS
