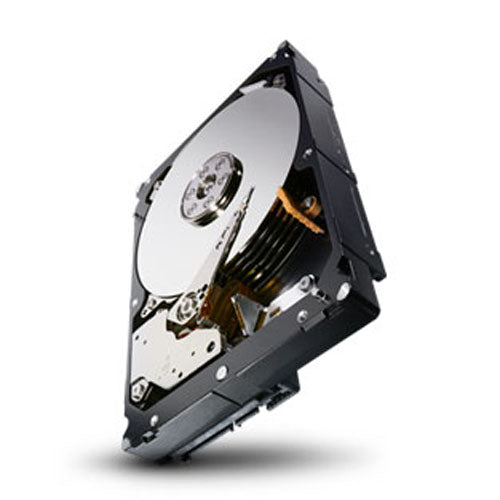

Seagate Constellation ES.3 Hard Drive 4TB (128MB Cache, 7400RPM, 6GB/s)

Seagate Constellation ES.3 Hard Drive 4TB (128MB Cache, 7400RPM, 6GB/s)
Brand: Seagate
SKU: ST4000NM0023
Availability: Many In Stock
Rs.49,900
Rs.49,900
Please hurry! Only 0 left in stock
  • Default Title
Seagate Constellation ES.3 Hard Drive 4TB (128MB Cache, 7400RPM, 6GB/s)

Seagate Constellation ES.3 Hard Drive 4TB (128MB Cache, 7400RPM, 6GB/s)

Rs.49,900

Seagate Constellation ES.3 Hard Drive 4TB (128MB Cache, 7400RPM, 6GB/s)

Rs.49,900


Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications

  • Highest-capacity large form factor enterprise drive—up to 4TB—for demanding data growth
  • Sixth-generation drive technology with SAS and SATA interfaces for 24x7 reliability
    Enhanced error correction, super parity and end-to-end SAS-based data integrity for accurate data storage
  • Best-in-class rotational vibration tolerance ensures consistent performance.
  • mproved power and cooling efficiencies with low power consumption and on-demand PowerChoice™ technology based on T10/T13 power management standards
  • Multi-drive firmware maximized for enterprise RAID system availability
  • Robust performance with dual processors, ramp load technology, top-cover-attached motor and humidity sensor for optimum performance in all chassis
  • Self-Encrypting Drive (AES-256) with FIPS 140-2 validation and Seagate
  • Instant Secure Erase cuts IT drive retirement costs while securely protecting data at rest.


Best-Fit Applications

  • High-capacity RAID storage
  • Mainstream enterprise external storage arrays (SAN, NAS, DAS)
  • Cloud bulk data storage
  • Enterprise backup and restore—D2D, virtual tape
  • Centralized surveillance



Specificafions



Specifications





4TB1, 2







Standard Model Number

ST4000NM0023









SED Model Number

ST4000NM00433



SED-FIPS Model Number

ST4000NM00633,4



Features











Protection Information (T10 DIF)

Yes









Humdity Sensor

Yes









Super Parity

Yes









Low Halogen

Yes









PowerChoice™ Technology

Yes









Cache, Multisegmented (MB)

128









Reliability/Data Integrity











Mean Time Between Failures (MTBF, hours)

1.4 million









Reliability Rating @ Full 24x7 Operation (AFR)

0.63%









Nonrecoverable Read Errors per Bits Read

1 sector per 10E15









Power-On Hours per Year

8760









Bytes per Sector

512, 520, 528









Limited Warranty (years)5

5



Performance











Spindle Speed (RPM)

7200









Max. Sustained Transfer Rate OD (MB/s)

175









Average Latency (ms)

4.16









Interface Ports

Dual









Rotation Vibration @ 1500 Hz (rad/s²)

12.5









Power Consumption











Idle Power (W)

7.80









Typical Operating, Random Read (W)

11.86









Power Supply Requirements

+12V and +5V









Environmental











Temperature, Operating (°C)

5 to 60









Vibration, Nonoperating: <5Hz to 500Hz (Gs)

0.25









Shock, Operating, 2ms (Read/Write) (Gs)

70/40









Shock, Nonoperating, 1ms and 2ms (Gs)

300









Physical











Height (in/mm, max)6

1.028/26.1



Width (in/mm, max)6

4.010/101.85



Depth (in/mm, max)6

5.878/147.0



Weight (lb/g)

1.543/700









Carton Unit Quantity

20









Cartons per Pallet

40









Cartons per Layer

8













1 One gigabyte, or GB, equals one billion bytes and one terabyte equals one trillion bytes when referring to drive capacity.



2 Seagate recommends validating your configuration with your HBA/RAID controller manufacturer to ensure full capacity capabilitie

3 Self-Encrypting Drives (SED) and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-compliant host or controller support.

4 Capacity- optimized products shipped between December 31, 2011 and June 30, 2012, have a 3-year limited warranty. Capacity-optimized products shipped before December 31, 2011 or after June 30, 2012 have a 5- year limited warranty.

 5 These base deck dimensions conform to the Small Form Factor Standard (SFF)





Warranty

3 years local card warranty
