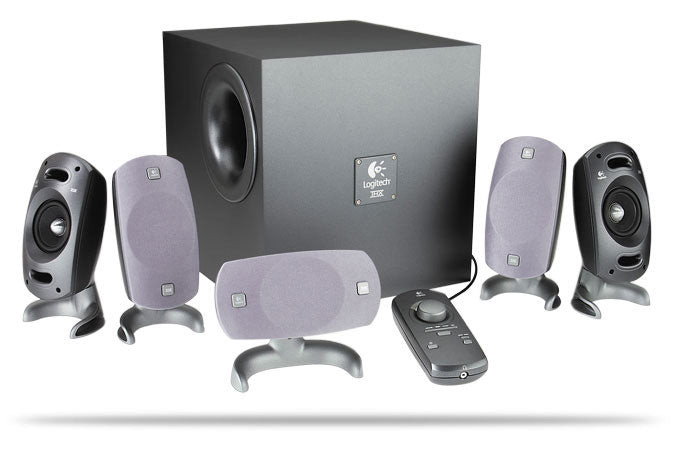

Logitech Z-5300 Speaker

5.1 Configuration • THX® Certified

Feel all the action on your PC or game console with breathtaking 5.1 surround sound.
With THX-certified quality and 280 watts (RMS) of thunderous power, the Z-5300 takes
your movie and game experiences to a level you never thought possible.

Its patented dual chamber subwoofer pounds out twice the bass of conventional
designs to deliver deep, loud and powerful bass. Polished aluminum phase plug
satellite drivers project superb high-end and rich mid-range tones for balanced sound.
Its full-featured SoundTouchâ„¢ wired remote provides convenient controls for quick
adjustments. Rotating pedestals allow easy installation on wall or desktop. The Z-5300
also features removable grilles for a high-end, custom look.

Got a Sony® PlayStation®2, Microsoft® Xbox®, or Nintendo GameCube™ Just plug in
the X-5300 using the convenient video game console adapter and immerse yourself in
the explosions, music, and dialogue of your favorite games.

• Immerse yourself in sound with the subwoofer and five satellite speakers
• Conveniently control volume and power with the wired remote, which features
an LCD screen and headphone jack
• Enjoy twice the bass of conventional designs with our patented subwoofer
design
• Place the satellites on a shelf or mount them to a wall
• Use Matrix mode and source selector switch to create breathtaking 5.1
surround sound from stereo, 4 channel, or 5.1 sound sources
• Easily hook it up to your video game console with the included adapter


More Sound, More Intensity

• High power and THX performance for demanding gamers
• Patented dual chamber subwoofer plays louder and goes lower for unbelievable
bass
• Subwoofer delivers twice the bass energy of conventional designs
• Polished aluminum phase plug satellites combine two drivers into one: the
clarity of a tweeter with the richness and fullness of a separate mid-range
• Use Matrix mode and source selector switch to create breathtaking 5.1
surround sound from stereo, 4 channel, or 5.1 sound sources
• Exercise complete control over your listening experience with the full-featured
SoundTouchâ„¢ wired remote control, featuring LCD screen, headphone jack, and
volume controls for both the entire system and each channel
• Pedestals rotate easily for wall mounting or desk placement
• Innovative design features removable grilles & aluminum phase plug drivers
• Video game console adapter works with Sony® PlayStation®, Sony®
PlayStation®2, Microsoft® Xbox®, or Nintendo GameCube™ using stereo RCA
(red and white) audio cables.


Technical Specifications

Total RMS power: 280 watts RMS
Satellites 180 Watts RMS (2 x 35.25W front, 2 x 35.25W rear, 39W center)
Subwoofer: 100 Watts RMS
Total peak power: 560 watts
Maximum SPL: (TBD)
Frequency response: 35Hz - 20kHz
Drivers:
Satellites: 2.5" aluminum phase plug driver
Subwoofer: 6.5" high-excursion driver
Speaker dimensions:
Satellites: (H) 8" x (W) 3.75" x (D) 3.5"
Center: (H) 5" x (W) 6.625" x (D) 3"
Subwoofer: (H) 11.813" x (W) 11.75" x (D) 14.5"
Signal to noise ratio: >85 db
Input selector switch: z
2 Channel (stereo)
4 Channel
5.1 Channel
SoundTouchâ„¢ remote control
Master volume
Sub, center & surround levels
Matrix surround sound


Package Contents

Speakers: 4 satellites & 1 subwoofer & 1 center Channel speaker
Cables included:
Power cord
Color coded audio cables
Owner's Manual
SoundTouch remote control
Video game console adapter
