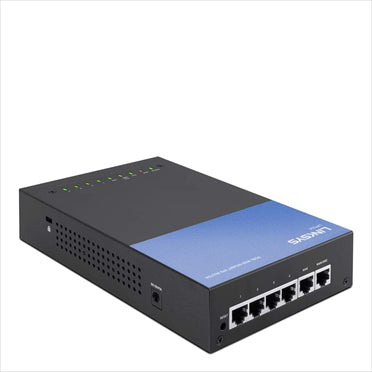

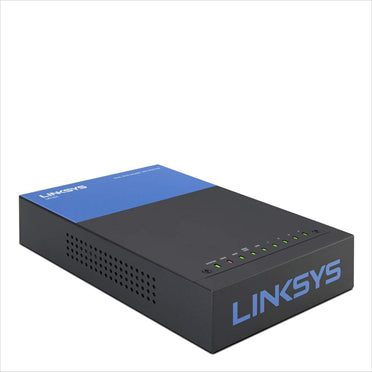

Linksys LRT224 Business Gigabit VPN Router

At a Glance

Load balancing and WAN failover offer highly reliable Internet connectivity for all your employees, at work or remotely.

Open VPN Server Support
Dual-WAN Load Balancing
Integrated Firewall
802.1q VLAN
EasyLink VPN for simple VPN Setup
Superior IP Sec Throughput

OPENVPN SERVER SUPPORT

Allows OpenVPN clients running on employees’ laptops, smartphones, and tablets to connect to the offices using two-factor authentication.

INTEGRATED FIREWALL

Supports URL filtering and access rules that allow administrator to further regulate the traffic within the business network based on the services (i.e. TCP/UDP ports) and source/destination IP addresses.

802.1q (VLAN TAGGING)

Provides segmentation between users in different SSIDs/VLANs. With inter-VLAN routing, Traffic traverses easily between VLANs

INTUITIVE WEB ADMINISTRATIVE INTERFACE

Allows small business owners to deploy and manage the routers without professional IT staff onsite.

Specifications

Model Name:
LRT224

Firewall:
SPI (Stateful Packet Inspection)
DoS (Denial of Service) prevention
Schedule-based access rules (50)
Web filtering (URL and keyword blocking)
Block Java, cookies, ActiveX, http proxy servers
IGMP proxy
UPnP

Site-to-Site VPN:
50 IPsec site-to-site tunnels
Split DNS over site-to-site tunnel
VPN backup for site-to-site tunnel
DPD (Dead Peer Detection)
Keep alive
NAT-traversal

Remote Access VPN:
OpenVPN
PPTP
Client-to-Site IPsec

NAT:
Gateway mode
Router mode

NAPT:
1-to-1 NAT (10)
Port forwarding (30)
Port triggering (30)
Port address translation (30)
DMZ host

DMZ Port:
DMZ Range
DMZ Subnet

802.1q VLAN:
5 tagged VLANs (supporting inter-VLAN routing, inter-VLAN access rules)

DHCP Server:
Supports multiple address pools, one pool per VLAN subnet

DNS:
DNS Proxy
DNS Local Database

Monitoring/Alerting:
Syslog
Email Alert
SNMP Trap

WAN Connection:
Dynamic IP
PPPoE
PPTP
L2TP
Static IP
Transparent Bridge

DDNS:
Dynamic DNS (DynDNS, 3322)
NOIP
ChangeIP

Routing:
Static

IPv6:
DHCPv6-PD
6to4
Router Advertisement

Maintenance:
Configuration backup and restore
Dual configurations (startup and mirror)
Firmware upgrade
Diagnostics (ping and DNS name lookup)
Reboot
Factory defaults

Status and Statistics:
WAN connection status
VPN tunnel/user status
Port status and statistics

Ports:

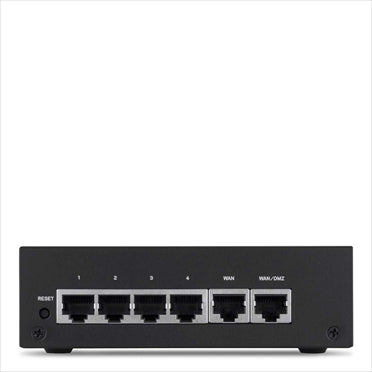

One 10/100/1000 RJ45 WAN port, One 10/100/1000 RJ45 WAN/DMZ port, Four 10/100/1000 RJ45 LAN ports, OpenVPN for mobile platforms (iOS, Android)

LEDs:
System, DIAG, WAN, DMZ. VPN, LAN 1–4

Port Management:
10/100/1000 Mbps
Auto negotiation
Half/Full duplex

Performance:
IPsec VPN throughput: 110 Mbps
Maximum NAT throughput: 900 Mbps
Maximum concurrent connections: 30,000

Dimensions (LxWxH):
191 x 130 x 40 mm

Weight:
722.2 grams (28.43 oz)

Power:
12V 1A

Operating Temperature:
0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature:
0ºC to 70ºC (32ºF to 158ºF)

Operating Humidity:
10% to 85% non-condensing

Storage Humidity:
5% to 90% non-condensing

Mounting:
Wall
Desktop

VLAN Trunking:
VLAN trunking allowing connection to access points (with multiple SSIDs) and additional smart or managed switches

Security Lock:
Kensington Lock

Regulatory Compliance:
FCC Class B,
CE Class B

Bandwidth Management:
Rate control allowing limiting upstream and downstream bandwidth per service and IP; Priority scheme allowing services mapped to 3 levels of priority

LEDs:
System, DIAG, WAN, DMZ. VPN, LAN 1-4

Non-operating Temperature:
0ºC to 70ºC (32ºF to 158ºF)

UPnP:
Yes

Web-based Administrative Interface:
Browser supporting IE
Firefox
Safari
Setup wizard
Remote management over HTTPS
