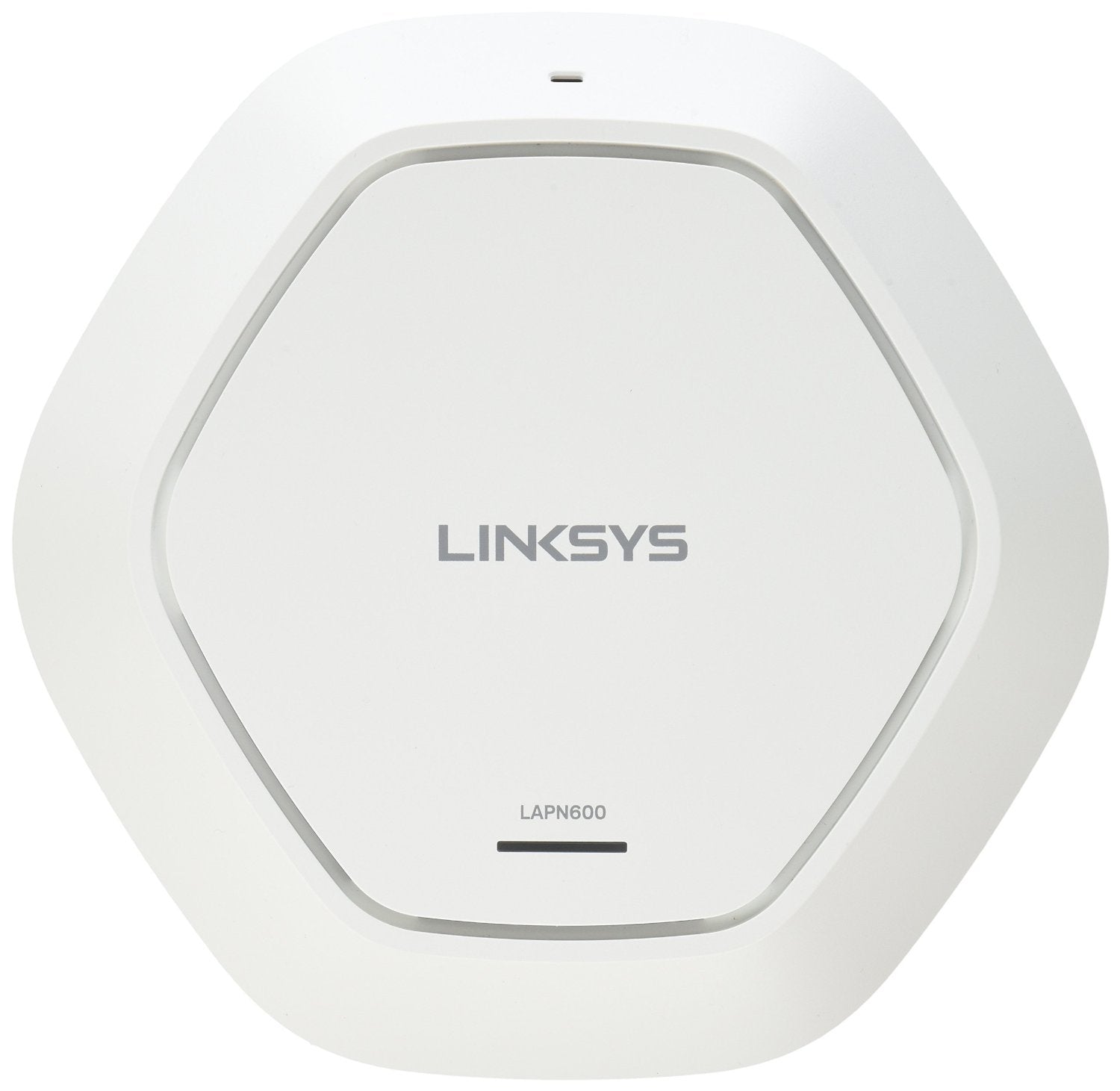

Linksys LAPN600 Business Access Point Wireless Wi-Fi Dual Band 2.4 + 5GHz N600 with PoE

Up to N600 Mbps*

Provides high-speed connectivity for notebooks, smartphones, tablets, and other Wi-Fi enabled devices

High Power Wireless Coverage

High power offers better, wider wireless coverage for you and your business, strengthening your network connection in hard-to-reach areas.

Gigabit Ethernet Port

Wireless clients can enjoy faster speeds by maximizing wireless-to-wired performance. Gigabit Ethernet is 10x faster than Fast Ethernet.

3-in-1 Access Point, WDS & Workgroup Bridge

Extends wired and wireless range with three modes: traditional access point, wireless distribution system (WDS), or wireless bridge.

Easy to Use with PoE+

Integrated with 802.3at Power over Ethernet Plus (PoE+) capability to eliminate external adapters and facilitate optimal placement.

Advanced Network Security

Protect your network with advanced security features including Rogue AP detection, SSID to VLAN mapping, and 802.1X Supplicant.

Features

• Integrated Power over Ethernet
• Dual Band (2.4 GHz + 5 GHz) capability and speeds up to 600 Mbps*
• Industrial-strength Wi-Fi Protected Access (WPA, WPA2) security and data encryption
• IPv6 Support
• High Power PA for better Wi-Fi coverage

Specifications

Radio Frequency Channels:
2.412 to 2.462 GHz; 11 channels
5.180 to 5.240 GHz; 4 channels
5.745 to 5.825 GHz; 5 channels

Antenna Gain:
1.8 dBi @ 2.4 GHz;
3.5 dBi @ 5 GHz

Receiver Sensitivity:
802.11b @ 11 Mbps: -85 dBm
802.11a/g @ 54 Mbps: -70 dBm
802.11n @ HT20 MCS7/15: -65 dBm
802.11n @ HT40 MCS7/15: -62 dBm

Dimensions (LxWxH):
243.08 x 236.98 x 43.69 mm (9.57 x 9.33 x 1.72 in)

Regulatory Compliance:
Class B, Wireless;
FCC, CE, IC

Access Control:
Yes, MAC based ACL with local or remote RADIUS server authentication

Wireless Security:
WEP
802.1X RADIUS

Weight:
498.95 g (1.10 lb)

RF Transmit Power:
802.11b @ 11 Mbps: 21 dBm
802.11g @ 54 Mbps: 20 dBm
802.11n @ HT20/HT40 MCS7/15: 19 dBm

Operating Temperature:
0° to 40°C (32° to 104°F)

Operating Humidity:
10% to 85% (non-condensing)

LEDs:
One system LED

Network Standards:
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b

MIMO:
2x2

Antenna Type:
Internal

PoE:
802.3at

Mounting:
Ceiling
Wall
Desktop

Management Interface:
HTTP
HTTPS
SNMP

Radio Frequency Bands:
Concurrent Dual-Band 2.4 GHz and 5 GHz

Model Name:
LAPN600

Storage Temperature:
-20° to 70°C (-4° to 158°F)

Ports:
1 Gigabit Ethernet Port

External Power Amplifier:
High Power PA

Security Lock:
Kensington lock slot

Reset Button:
Yes

Maximum Power Consumption:
17W

Storage Humidity:
10% to 90% (non-condensing)

Number of VLANs Supported:
17, 1 management VLAN plus 16 VLANs for SSID

SSID to VLAN Mapping:
Yes

Workgroup Bridge:
Yes

Rogue AP Detection:
Yes

802.1X Supplicant:
Yes

Isolation of Wireless Clients in the Same SSID:
Yes

WMM:
Yes

Rate Limiting:
Yes, Bandwidth Management per SSID

Scheduler:
Yes, Time-based profiles per SSID

Band Steering:
Yes

Event Notification:
Local Log, Remote Syslog, and Email Alert

Network Diagnostics:
Log, Ping, Packet Capture

802.1q VLAN:
Yes, 802.1q-based VLAN
