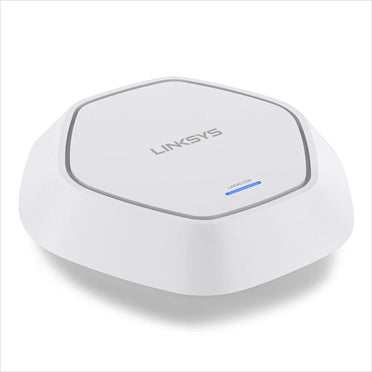

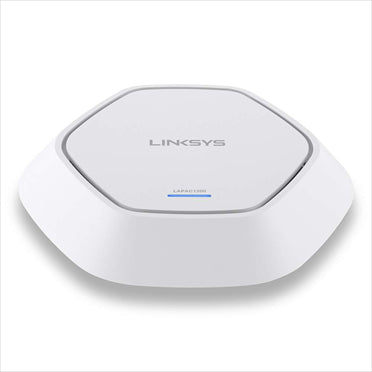

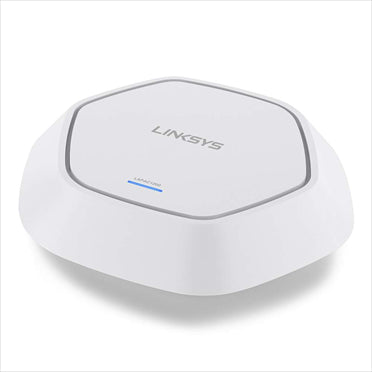

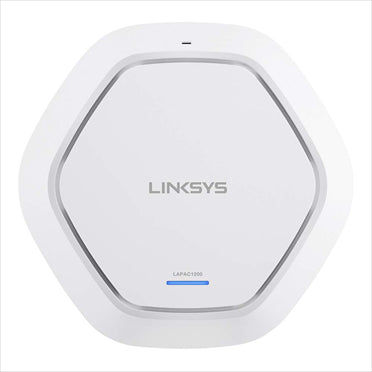

Linksys LAPAC1200 Business AC1200 Dual-Band Access Point

At a Glance

Delivers the next generation of Wi-Fi technology (802.11ac) to provide data rates up to AC1200 Mbps.

• Dual-Band AC1200 Speed, 3X 11N Speed
• Single Point Control: Clustering**
• Range Boost with High-Power Antennas
• Captive Portal for Customized Wi-Fi Hotspot

Up to AC1200 Mbps*

Delivers next-generation 802.11ac wireless technology, at data rates up to 3x faster than 802.11n.*

Single Point Control: Clustering**

Simplifies administration and management efforts with a Single Point Control, reducing the costs and complexity of managing multiple wireless access points

Captive Portal

Supports secure and customized guest Wi-Fi access that can be used at many Wi-Fi hotspots to control wireless access in the area.

3-in-1 Access Point, WDS & Workgroup Bridge

Extends wired and wireless range with three modes: traditional access point, wireless distribution system (WDS), or wireless bridge.

Easy to Use with PoE+

Integrated with 802.3at Power over Ethernet Plus (PoE+) capability to eliminate external adapters and facilitate optimal placement.

Comprehensive Network Security

Protect and secure your wireless network with business-class security features including Wi-Fi Protected Access (WPA/WPA2), 802.1X Supplicant, MAC-based ACL, Rogue AP Detection, SSID-to-VLAN Mapping, and more.

Specifications

Model Name:
LAPAC1200

Network Standards:
IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
WMM - Wireless Multimedia Prioritization
Power over Ethernet Plus (PoE+) IEEE 802.3at

Radio Frequency Bands:
2.4GHz and 5GHz (Concurrent)

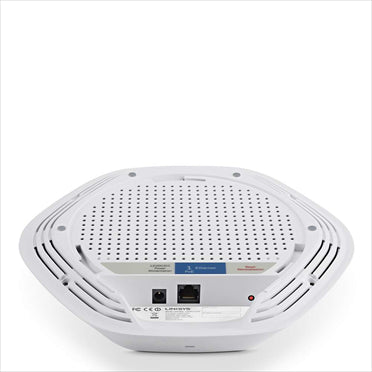

Ports:
1 x Gigabit LAN Port with IEEE 802.3at PoE+
1 x 12V/1.5A power port

LEDs:
1 x System LED

Buttons:
Reset Button

MIMO:
2x2

Antenna Type:
Internal PCBA Antenna

Antenna Gain:
1.7dBi @2.4G, 1.9dBi @5G

RF Transmit Power:
High Power PA

Radio Frequency Channels:
2.412 to 2.462 GHz, 11 channels
5.180 to 5.240 GHz: 4 channels
5.745 to 5.825 GHz: 5 channels

Receiver Sensitivity:
802.11b @11Mbps: -85dBm
802.11a/g@54Mbps: -73dBm
802.11n@HT20 MCS7: -67dBm
802.11n@HT40 MCS7: -65dBm
802.11n@HT40 MCS7: -65dBm

Maximum Power Consumption:
13W

Dimensions (LxWxH):
9.57 x 9.33 x 1.72 inches

Weight:
1.12lb

Operating Temperature:
0° to 40°C (32° to 104°F)

Storage Temperature:
-20° to 70°C (-4° to 158°F)

Operating Humidity:
10% to 85% non-condensing

Storage Humidity:
10% to 90% non-condensing

Mounting:
Ceiling
Wall

Security Features:
Multiple SSIDs (16)
SSID Broadcast
SSID to VLAN Mapping
Wi-Fi Protected Access (WPA/WPA Mixed, WPA2) Personal and Enterprise
RADIUS
Mac-Based Access Control
Rogue AP Detection
802.1X Supplicant
Channel Isolation
Security Lock:
Kensington Security Lock

Quality Of Service:
WMM
Bandwidth Management

Management Interface:
SNMP
HTTP
HTTPS

Regulatory Compliance:
FCC, CE, IC

Advanced Features:
Wireless Distribution System (WDS)
Workgroup Bridge
IGMP/MLD Snooping
Scheduler
Band Steering
IPv6 Interface
Dual Image Support
Captive Portal
Clustering

Event Notification:
Local Log, Remote Syslog, and Email Alert

Network Diagnostics:
Log, Ping, Packet Capture

Centralized Management System:
Clustering
