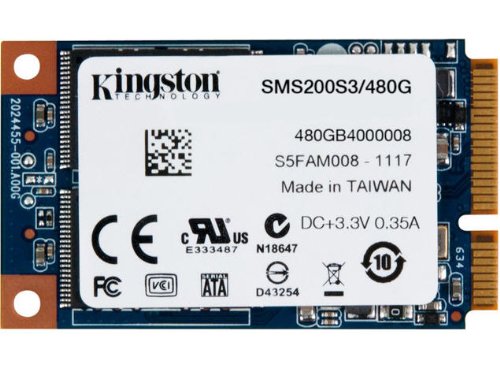

Kingston SSDNow mS200 mSATA 480GB

Save space, time and money

Kingston’s SSDNow mS200 mSATA solid-state drive offers a cost-effective performance boost with dual-drive option that allows room for adding high-capacity storage. Ideal for system builders, OEMs, and enthusiasts, the mS200’s ruggedly-cool, miniscule form factor is eight times smaller than a traditional 2.5” hard drive, making it perfect for notebooks, tablets and Ultrabooks. Available in 120GB capacities, the mS200 SSD has a caseless, PCB-only design with no moving parts and is backed by a three-year warranty, free technical support and legendary Kingston® reliability.

Features

• mSATA interface — fully compliant with industry standard, easy to fit, guaranteed to work
• NAND Flash memory based — shock resistant with low power consumption
• Supports Intel’s SRT — combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration
• Supports S.M.A.R.T. — monitors the status of your drive
• Supports TRIM — maintains maximum performance on compatible operating systems
• Guaranteed — three-year warranty (two-year warranty on 30GB), free technical support

Specifications

Form factor: mSATA

Interface:
SATA Rev. 3.0 (6Gb/s), SATA Rev. 2.0 (3Gb/s), SATA Rev. 1.0 (1.5Gb/s)

Capacities: 480GB

Encryption: AES 128bit

Sequential Read/Write:
480GB – 530 MB/s / 340MB/s

Maximum 4k Read/Write:
480GB – up to 72,000 / up to 18,000 IOPS

Random 4k Read/Write:
480GB – up to 21,000 / up to 13,000 IOPS

PCMARK® Vantage HDD Suite Score: 60,000

Power Consumption:
0.4W Idle / 1.2 (TYP) Read / 1.8 W (TYP) Write

Storage temperatures: -40°C ~ 85°C

Operating temperatures: 0°C ~ 70°C

Dimensions: 50.88mm x 30mm

Weight: 6.86g

TRIM: Supported

Vibration operating: 2.17G Peak

Vibration non-operating: 20G Peak

MTTF: 1,000,000 Hrs

Total Bytes Written (TBW)3:
480GB: 1562TB, 3 DWPD4
