Kingston KVR26S19S6/4 2666MHz DDR4 Non-ECC CL19 260-Pin SODIMM Ram - 4GB

Buy Kingston KVR26S19S6/4 2666MHz DDR4 Non-ECC CL19 260-Pin SODIMM Ram - 4GB online at Low Price. Buy complete range of RAMs on Vmart.pk, We Offer home delivery all over Pakistan.

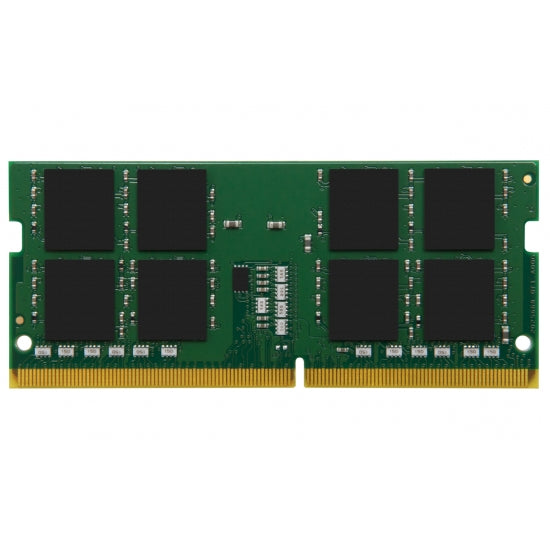

This document describes ValueRAM's KVR26S19S6/4 as a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
• data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 8 internal banks; 2 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
• via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
