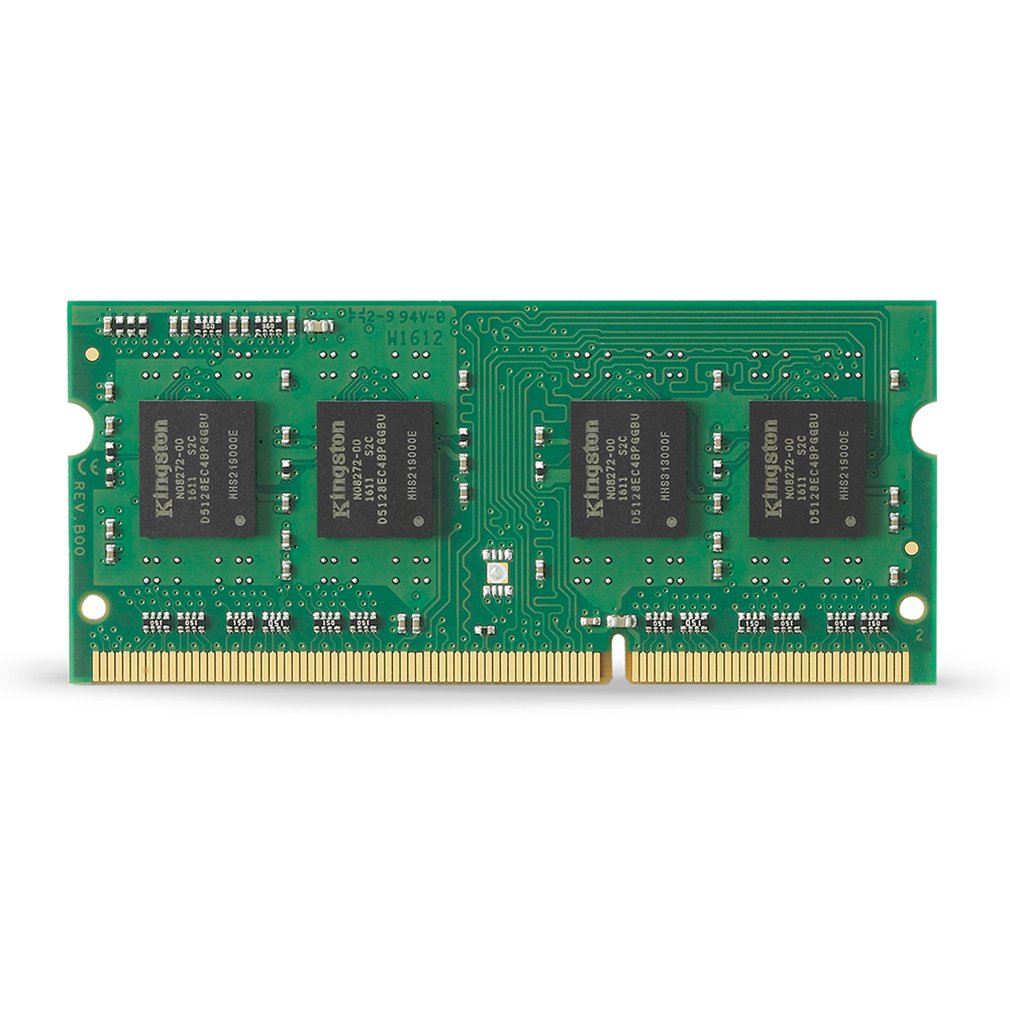

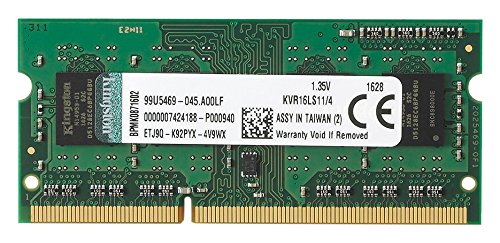

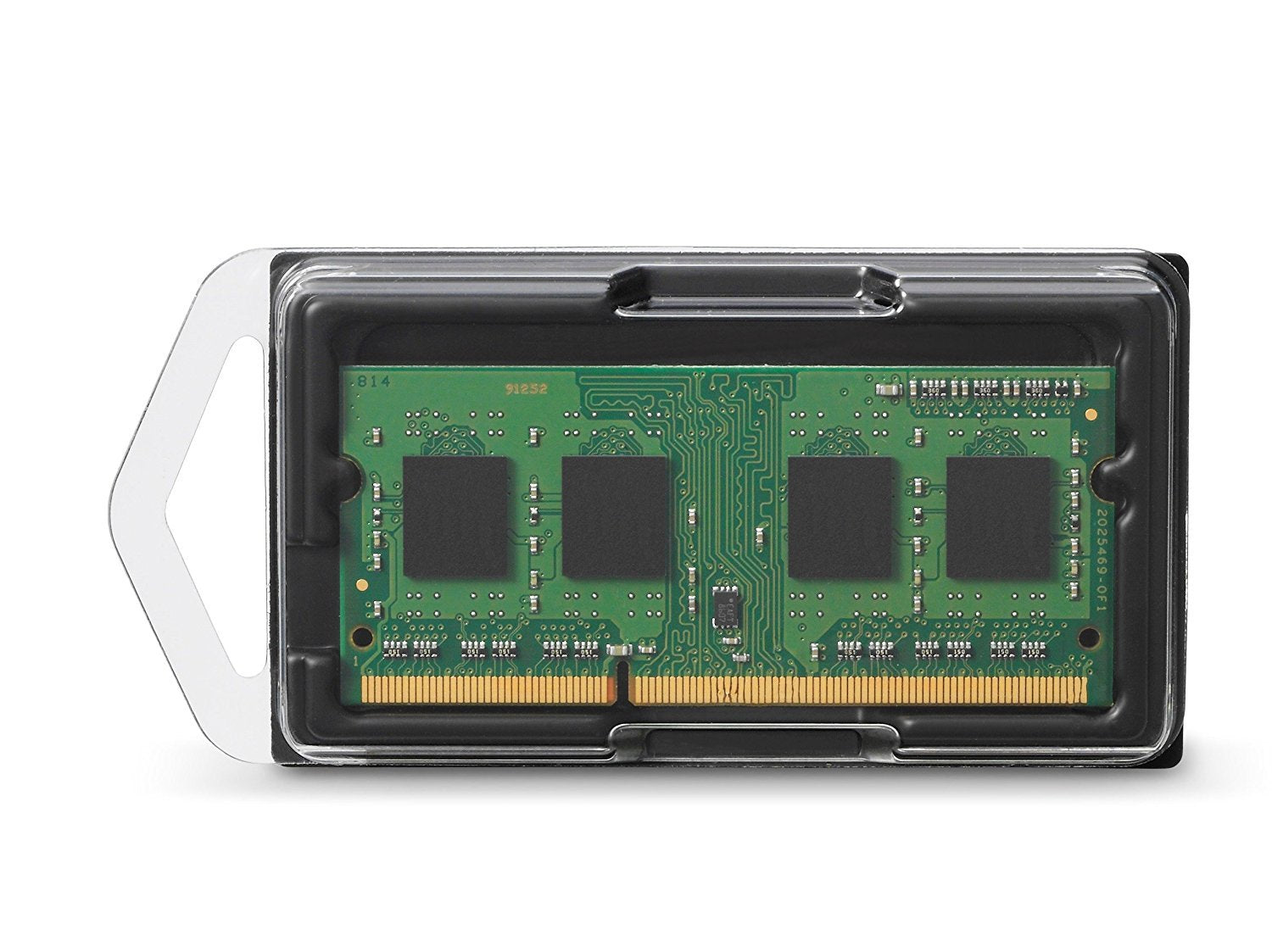

Kingston KVR16LS11/4 1600MHz DDR3L Non-ECC 1.35V CL11 SODIMM RAM - 4GB

Buy Kingston KVR16LS11/4 1600MHz DDR3L Non-ECC 1.35V CL11 SODIMM RAM - 4GB online at Low Price. Buy complete range of Rams on Vmart.pk, We Offer home delivery all over Pakistan.

Kingston KVR16LS11/4 1600MHz DDR3L Non-ECC 1.35V CL11 SODIMM  RAM - 4GB

DESCRIPTION

This document describes ValueRAM's 512M x 64-bit (4GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 1Rx8, low voltage, memory module, based on eight 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~1.575V) Power Supply VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin
• (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at
• 85°C < TCASE ≤ 95°C
• Asynchronous Reset
• PCB: Height1.18” (30mm), double sided component
• Lead Free RoHS Compliant
